Antilock Brakes / Traction Control Systems

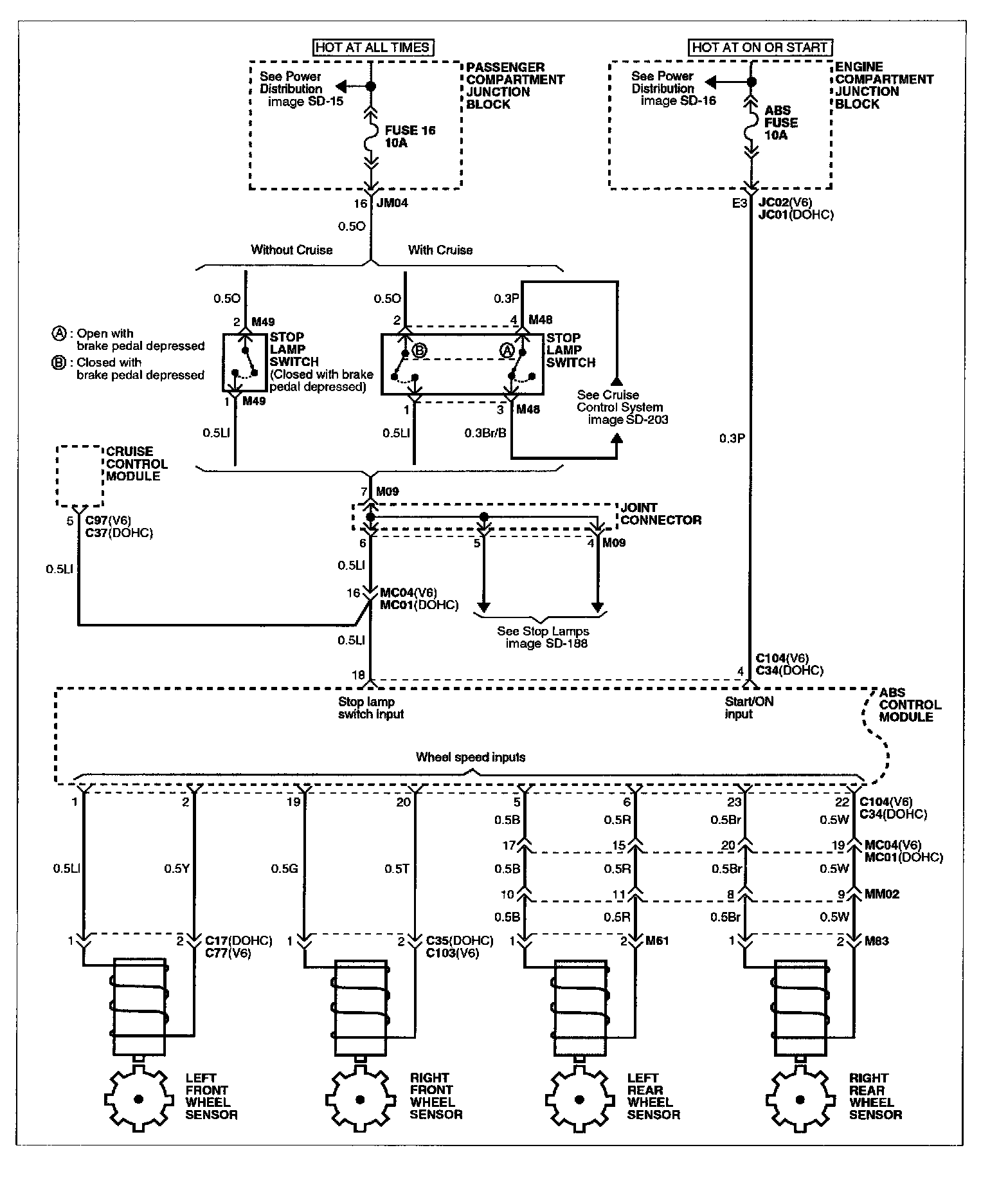

Image SD-118 - Anti-lock Brake System/Traction Control System (1):

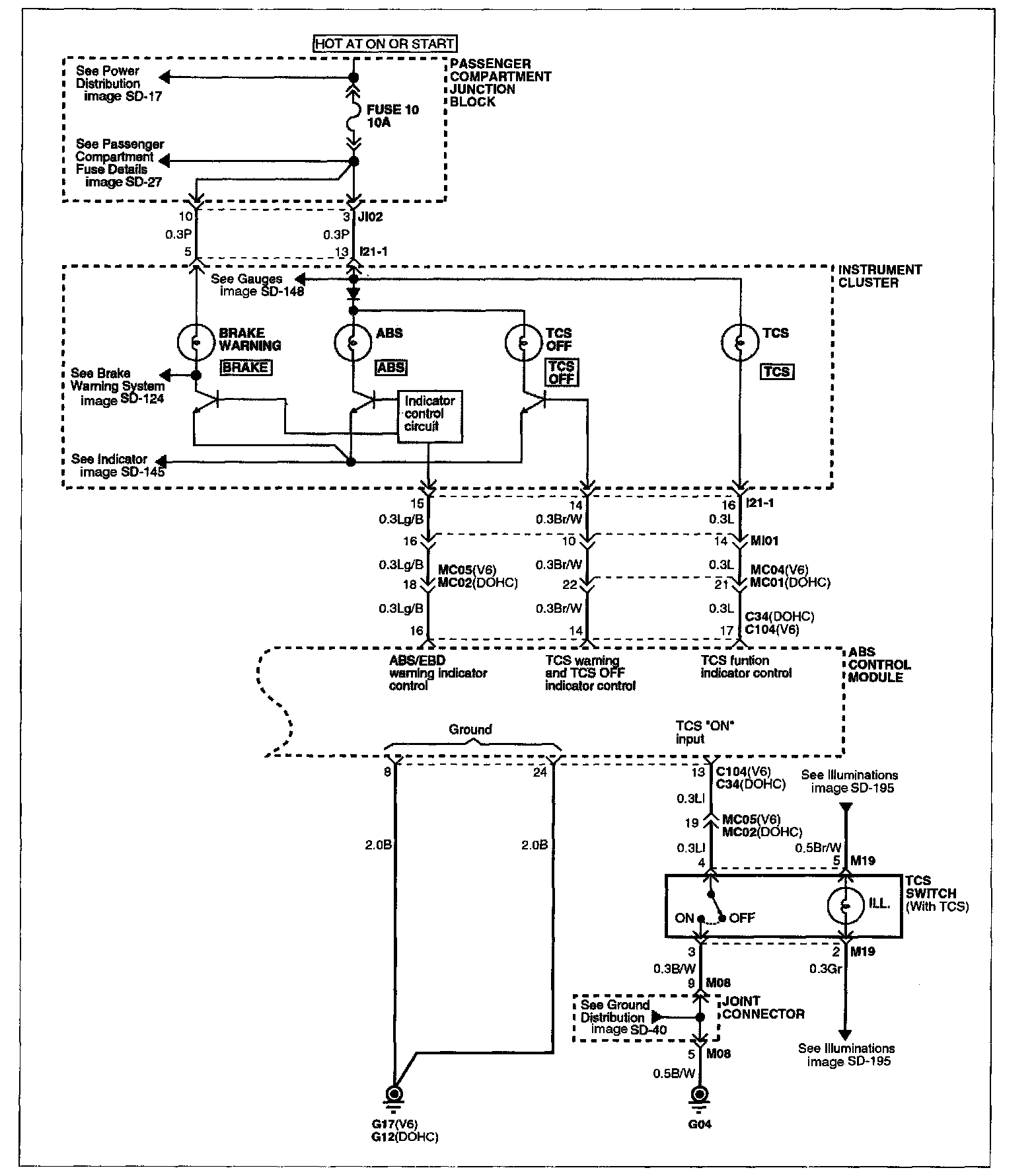

Image SD-119 - Anti-lock Brake System/Traction Control System (2):

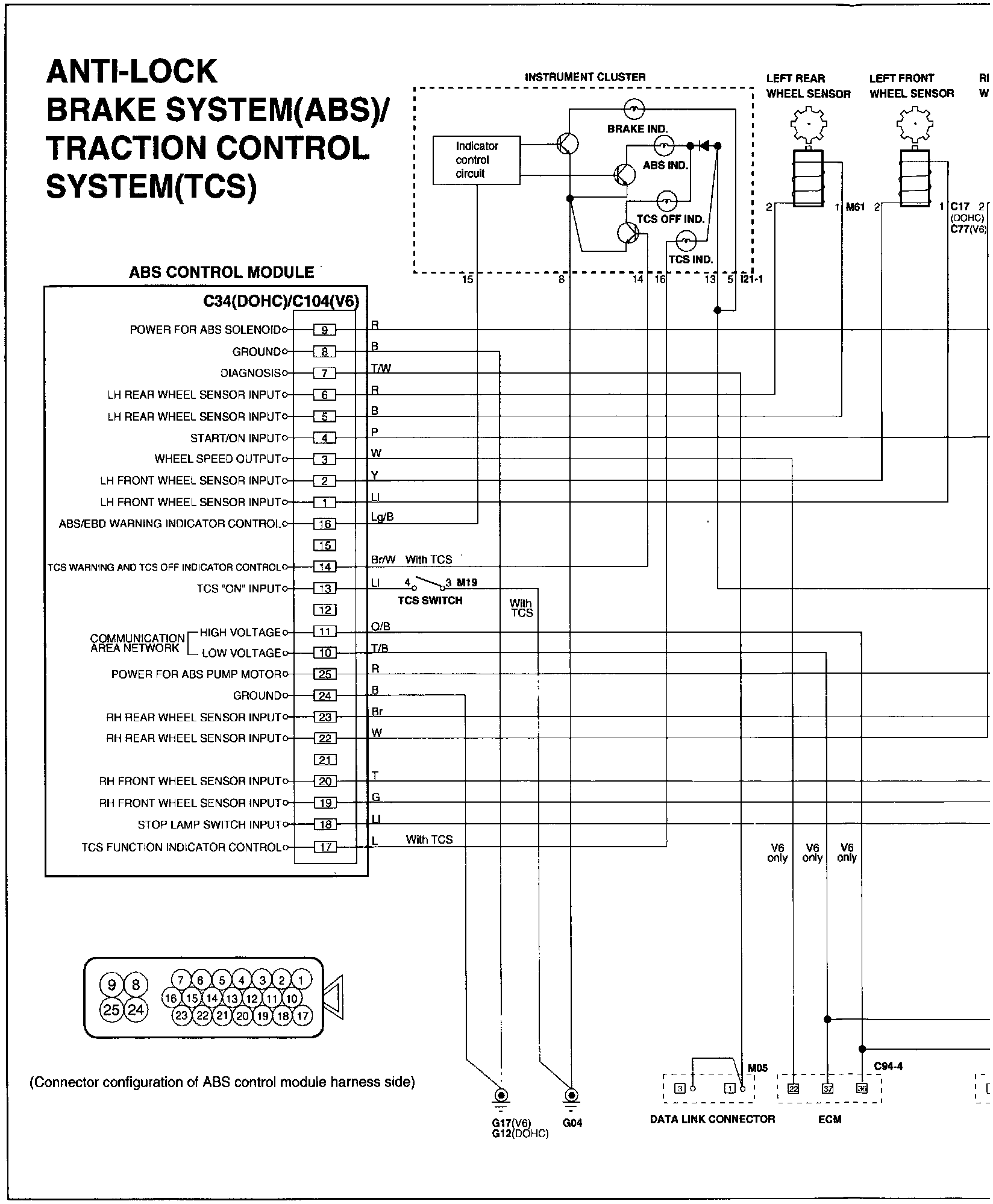

Image SD-120 - Anti-lock Brake System/Traction Control System (3):

Aj�NImage SD-121-1 - Anti-lock Brake System/Traction Control System:
