Cruise Control
Cruise Control

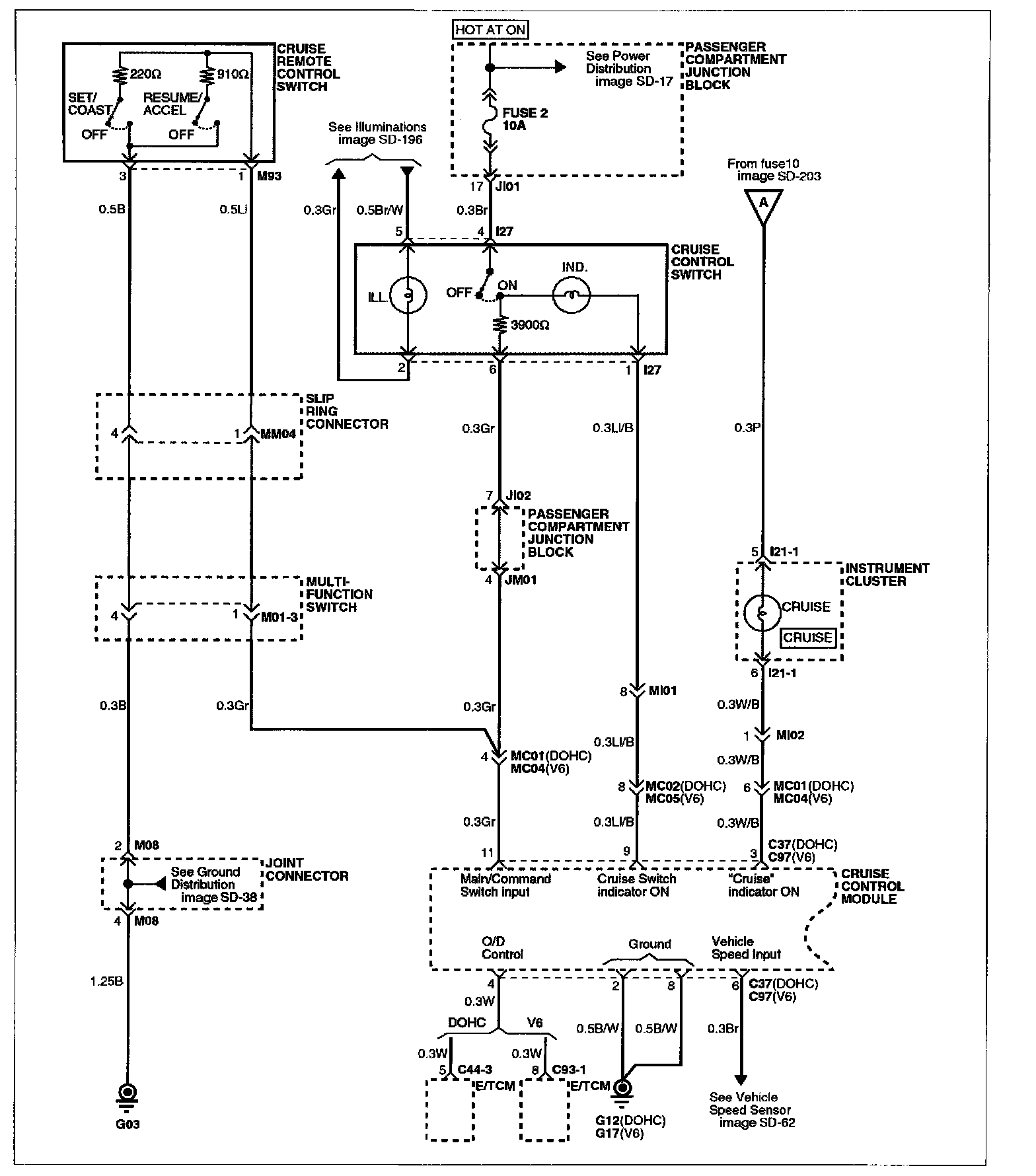

Image SD-202 - Cruise Control System (1):

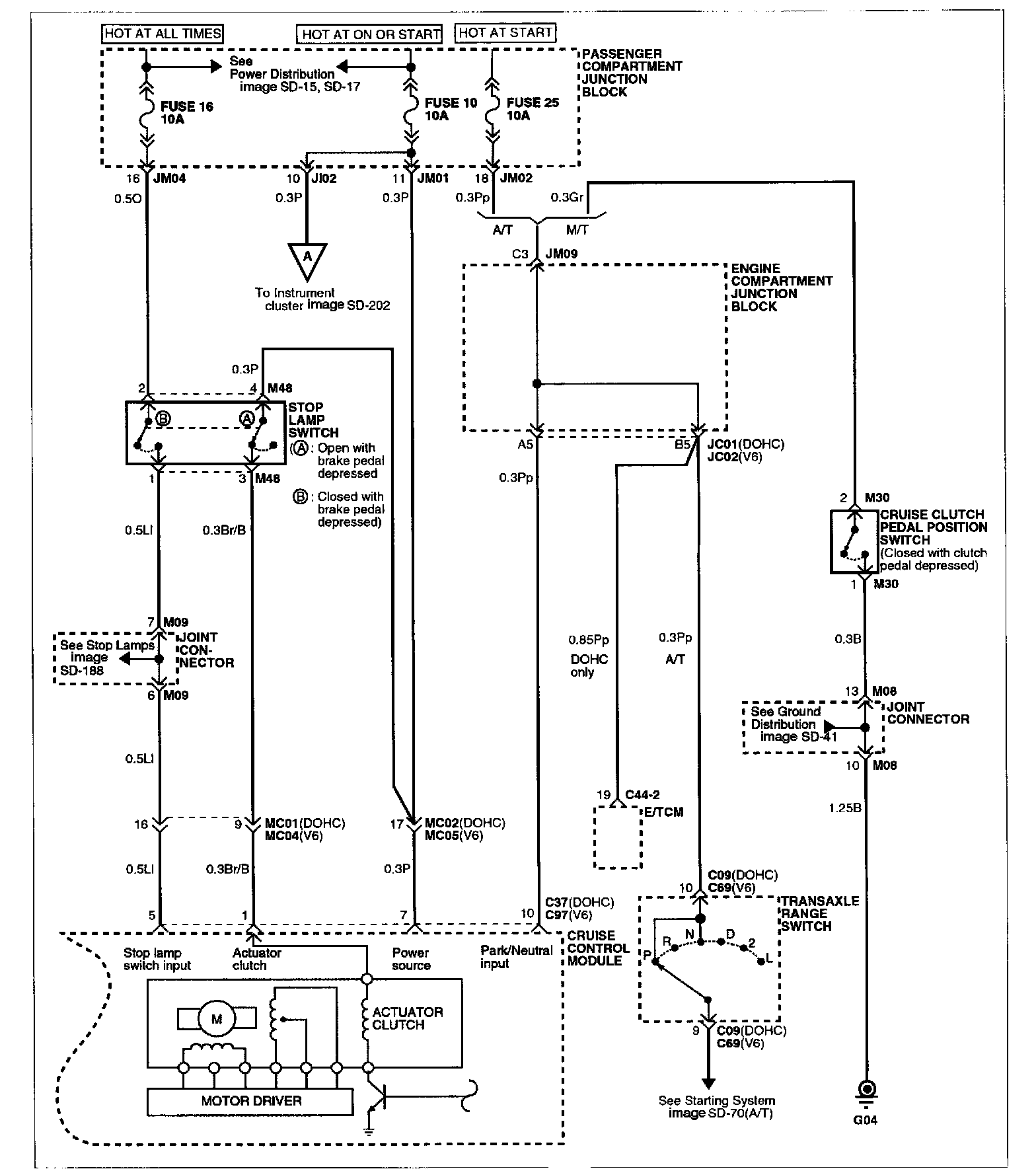

Image SD-203 - Cruise Control System (2):
