Daytime Running Lamp
Daytime Running Lamp

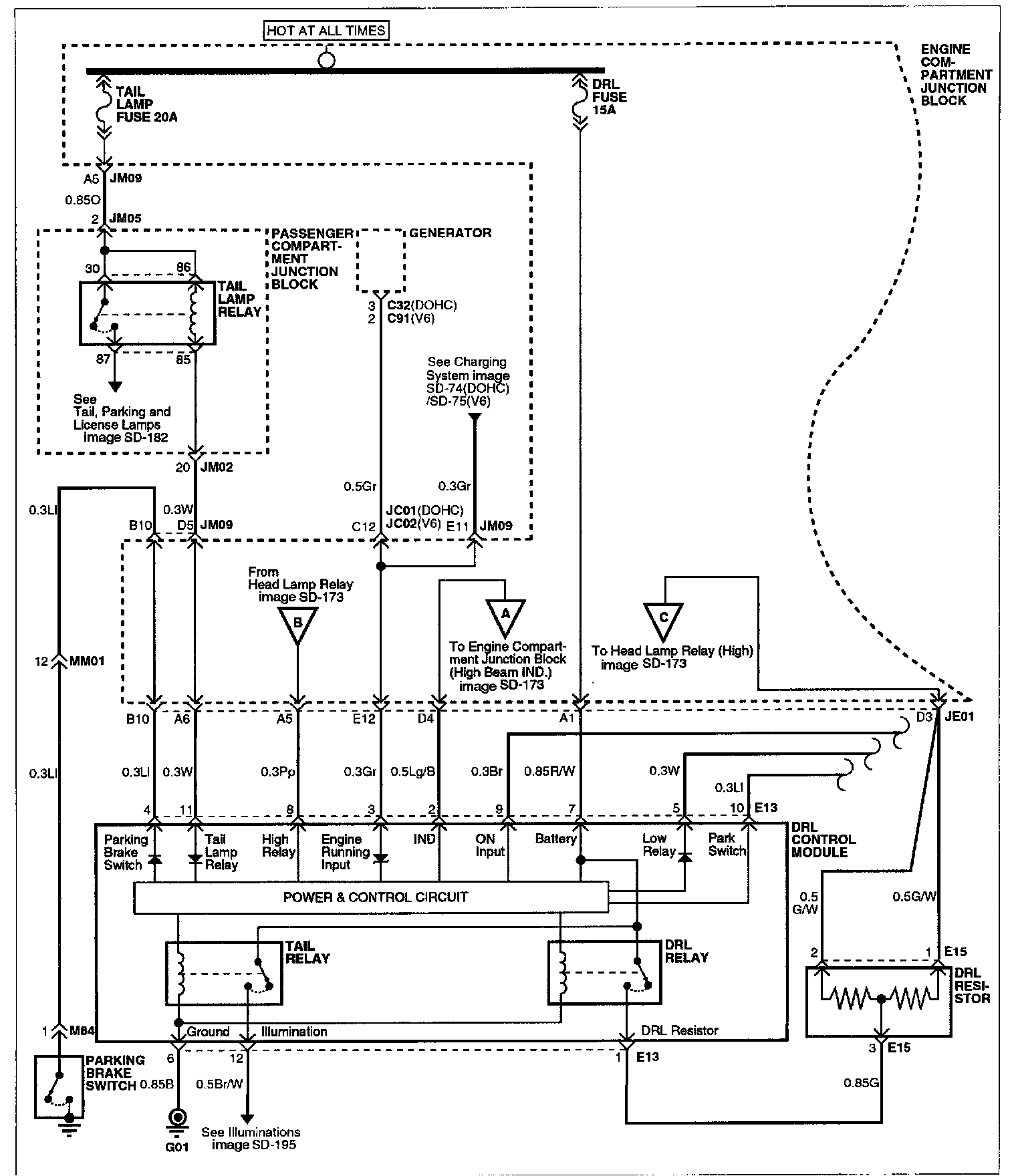

Image SD-172 - Daytime Running Lights (1):

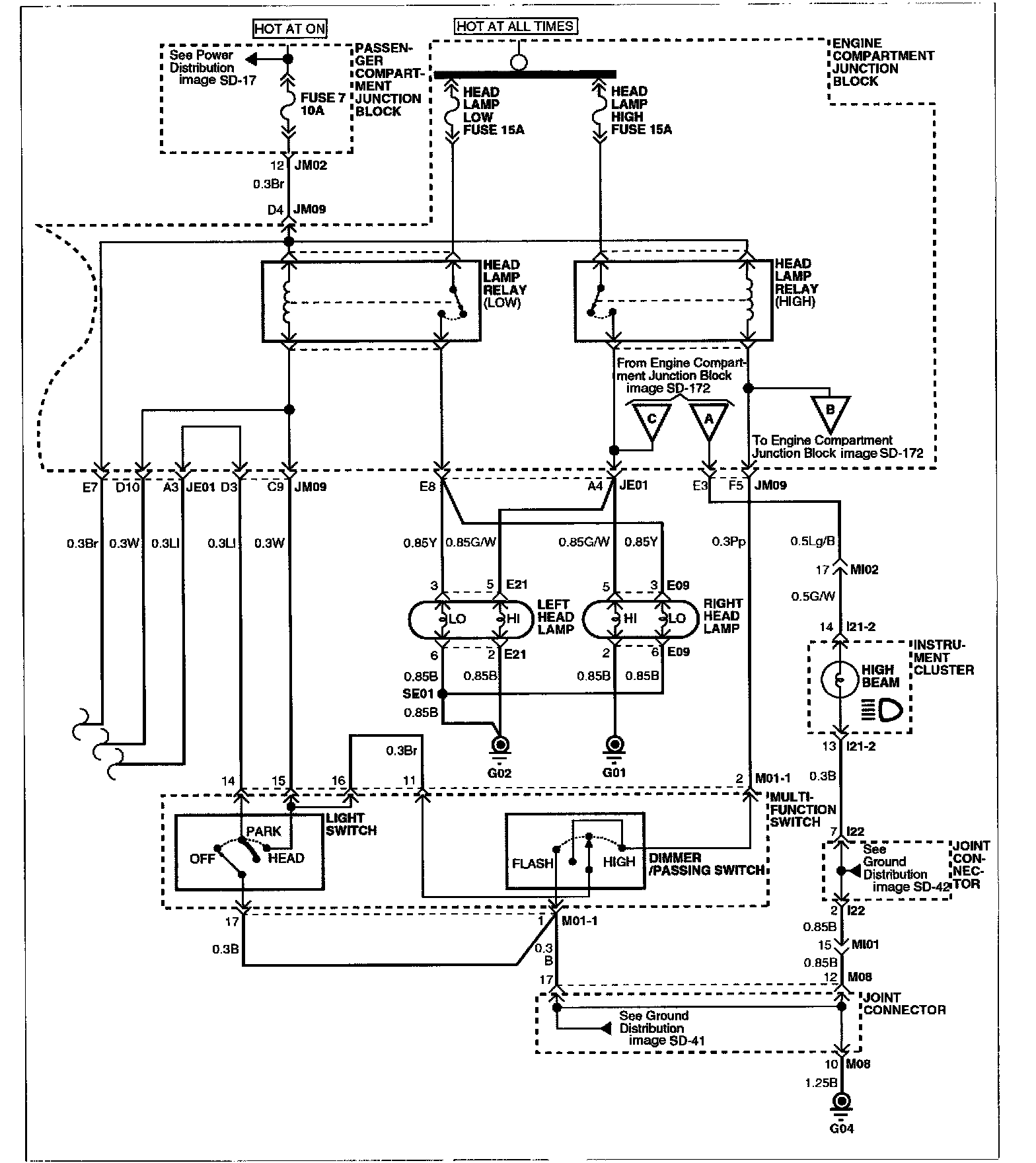

Image SD-173 - Daytime Running Lights (2):
