Fuse

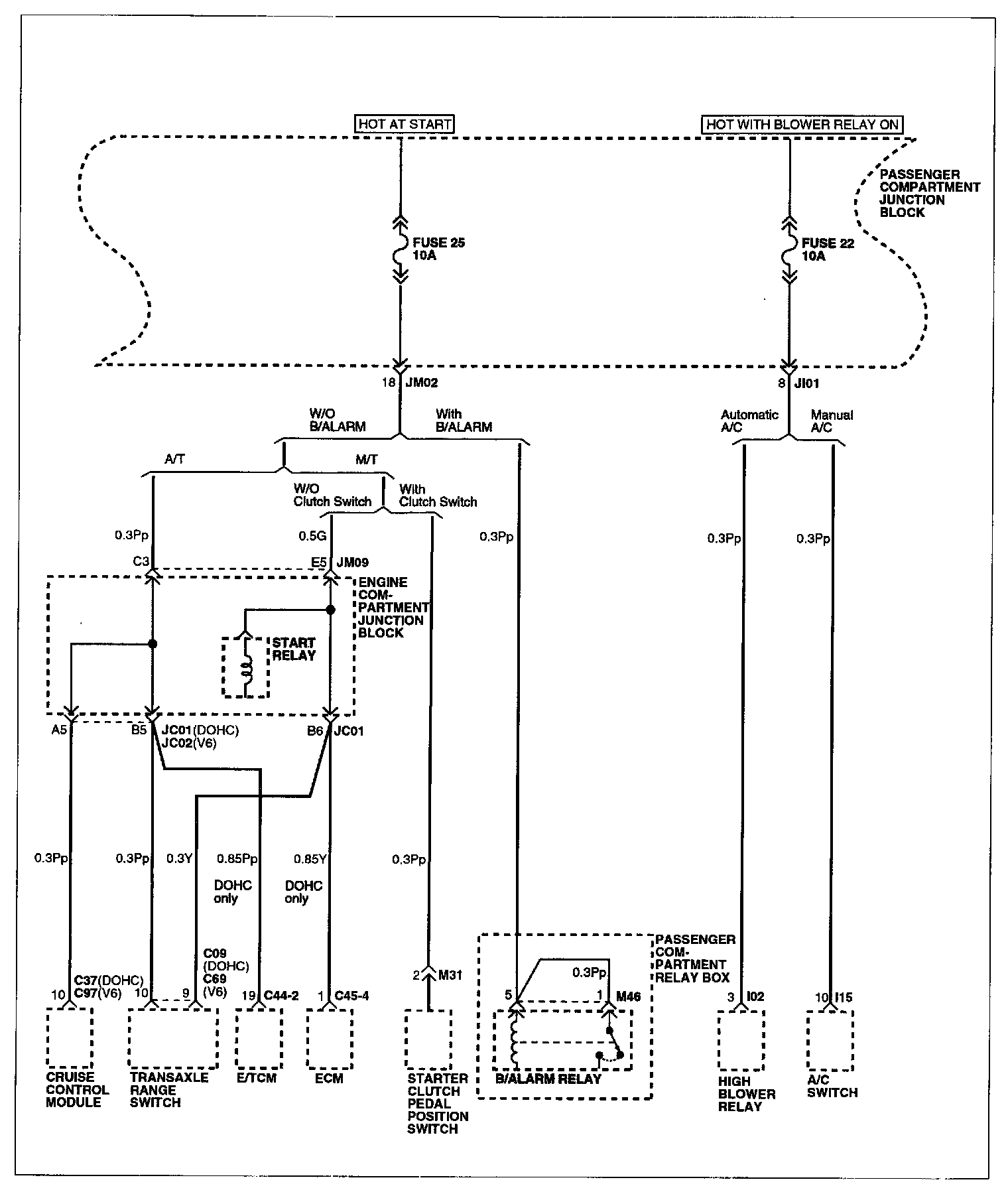

Image SD-20 - Passenger Compartment Fuse Details (1):

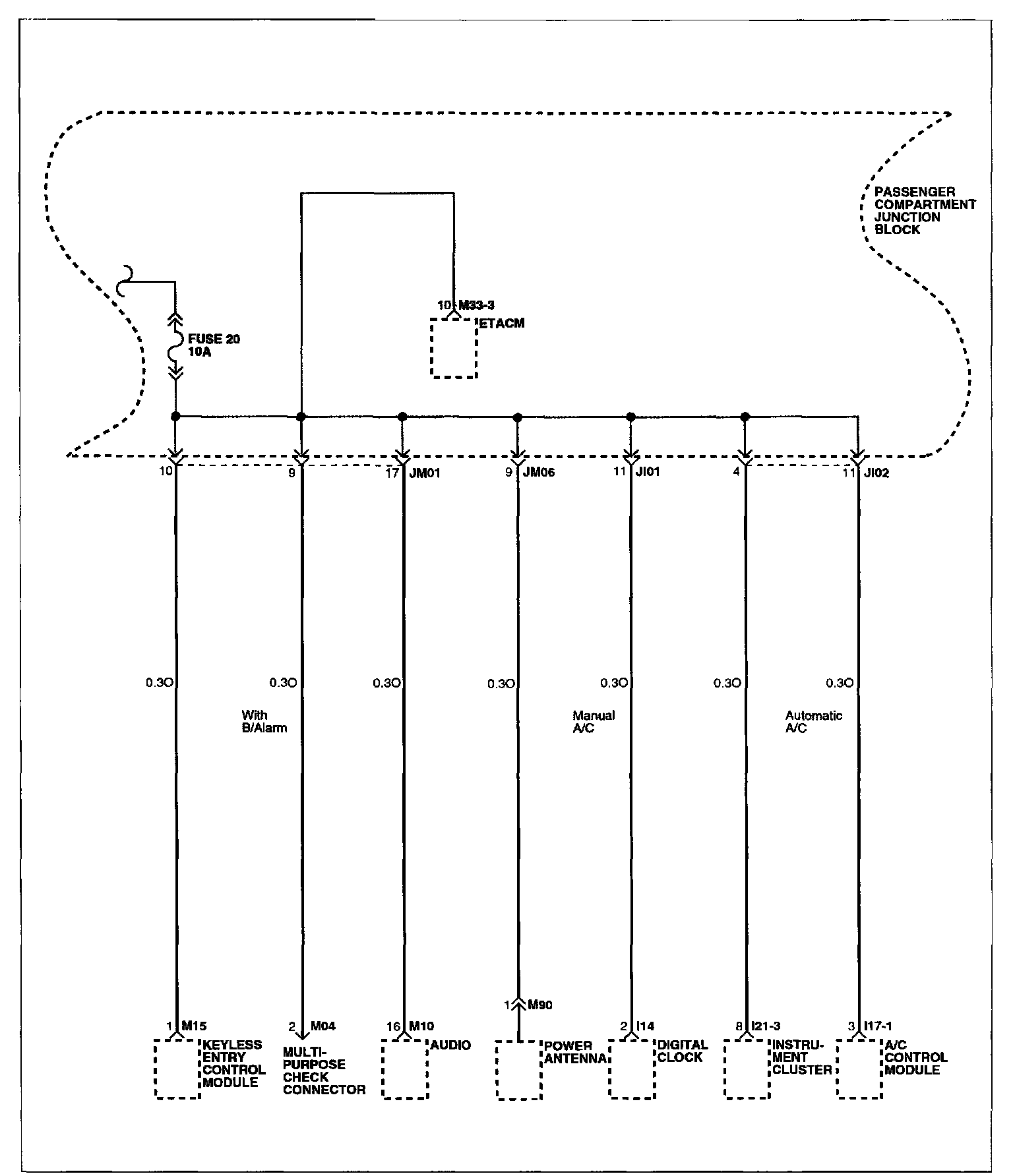

Image SD-21 - Passenger Compartment Fuse Details (2):

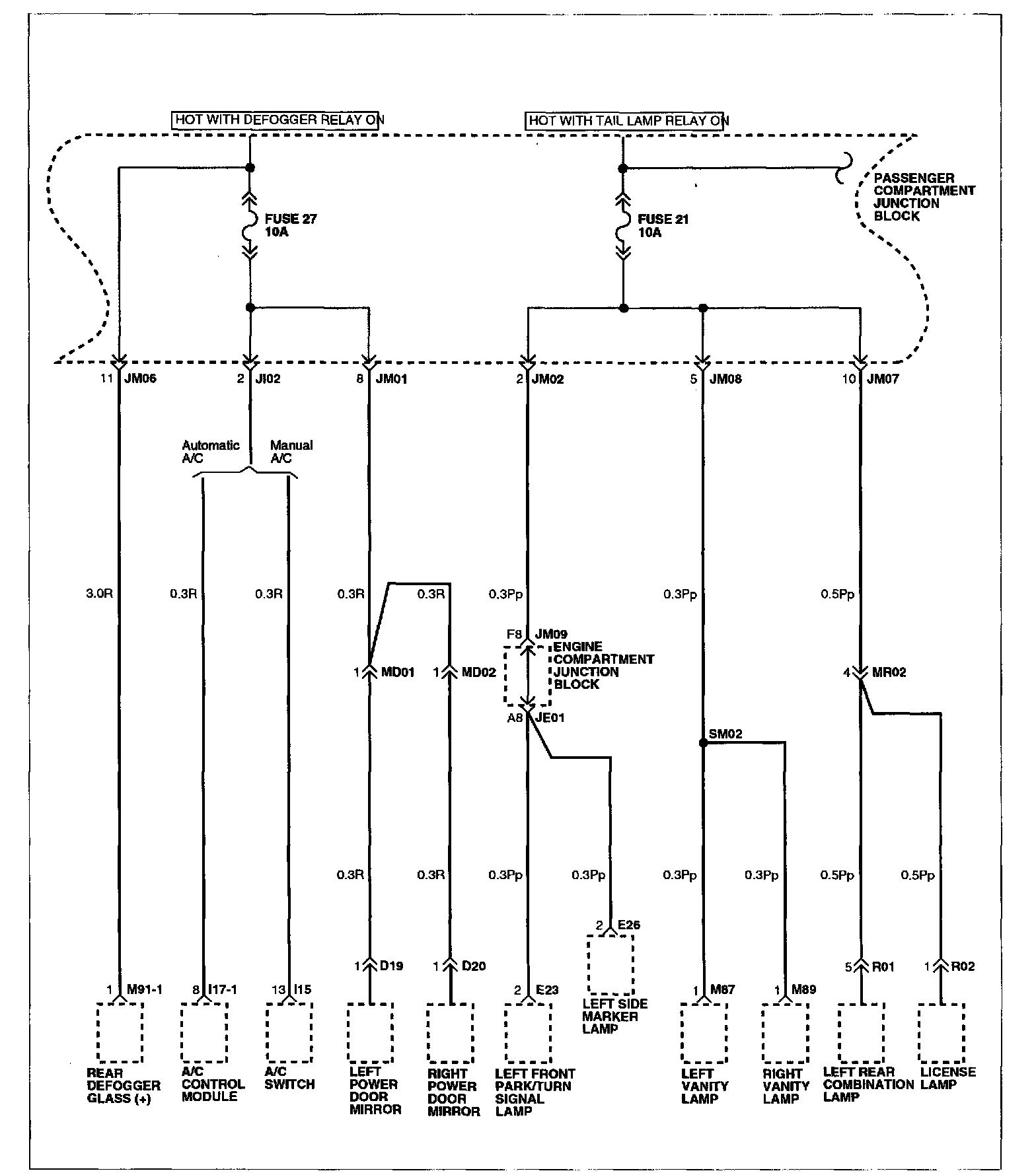

Image SD-22 - Passenger Compartment Fuse Details (3):

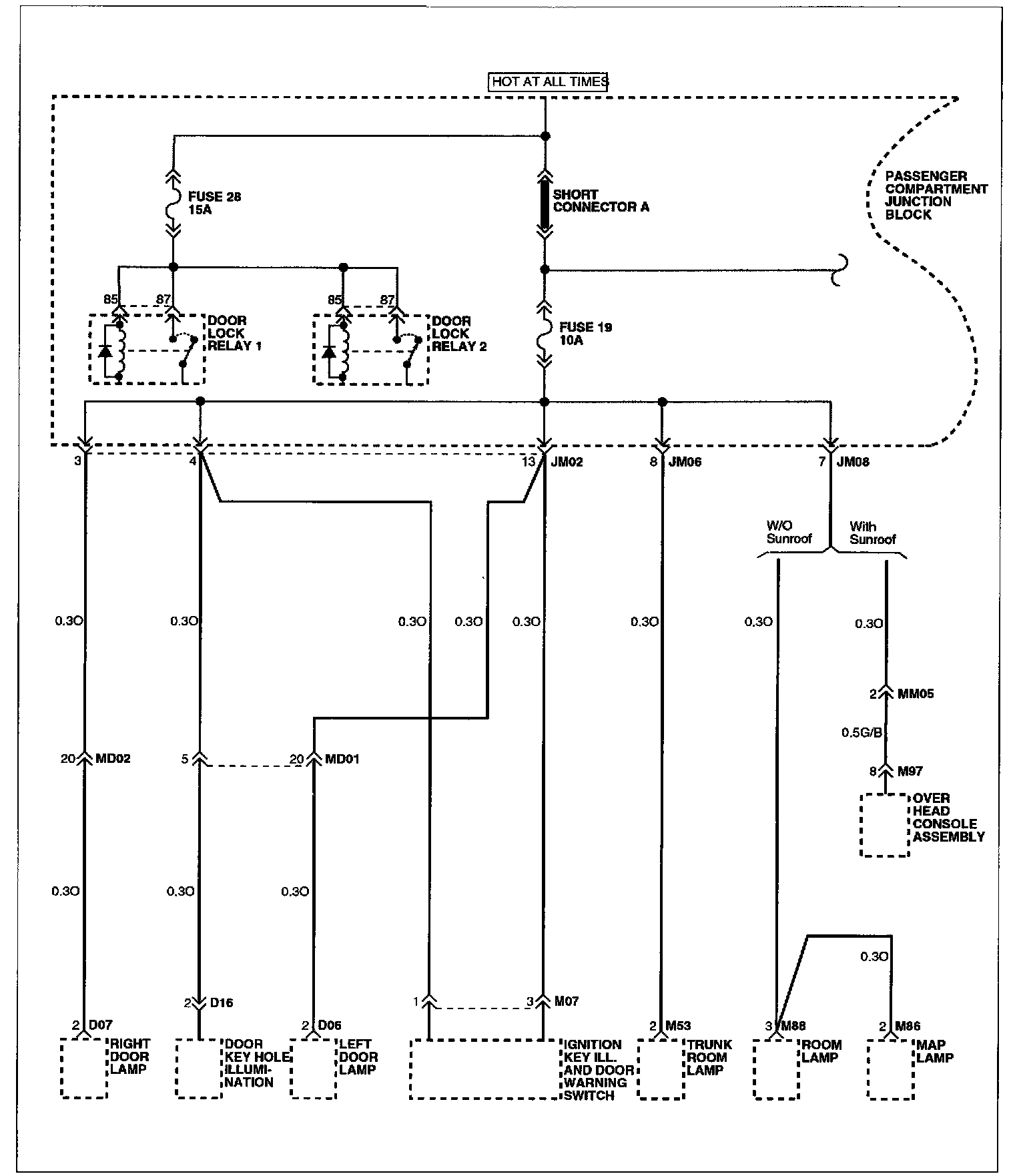

Image SD-23 - Passenger Compartment Fuse Details (4):

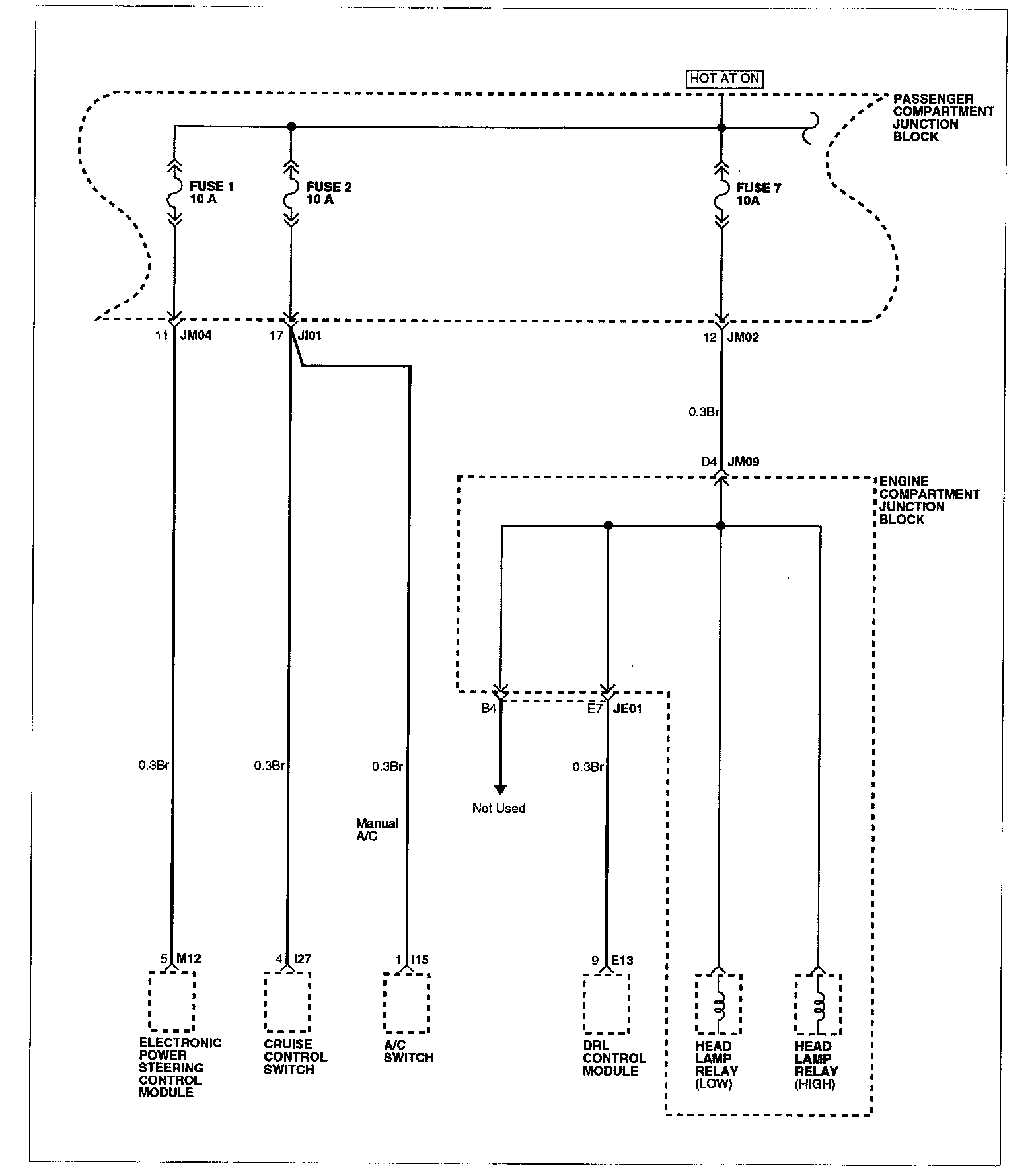

Image SD-24 - Passenger Compartment Fuse Details (5):

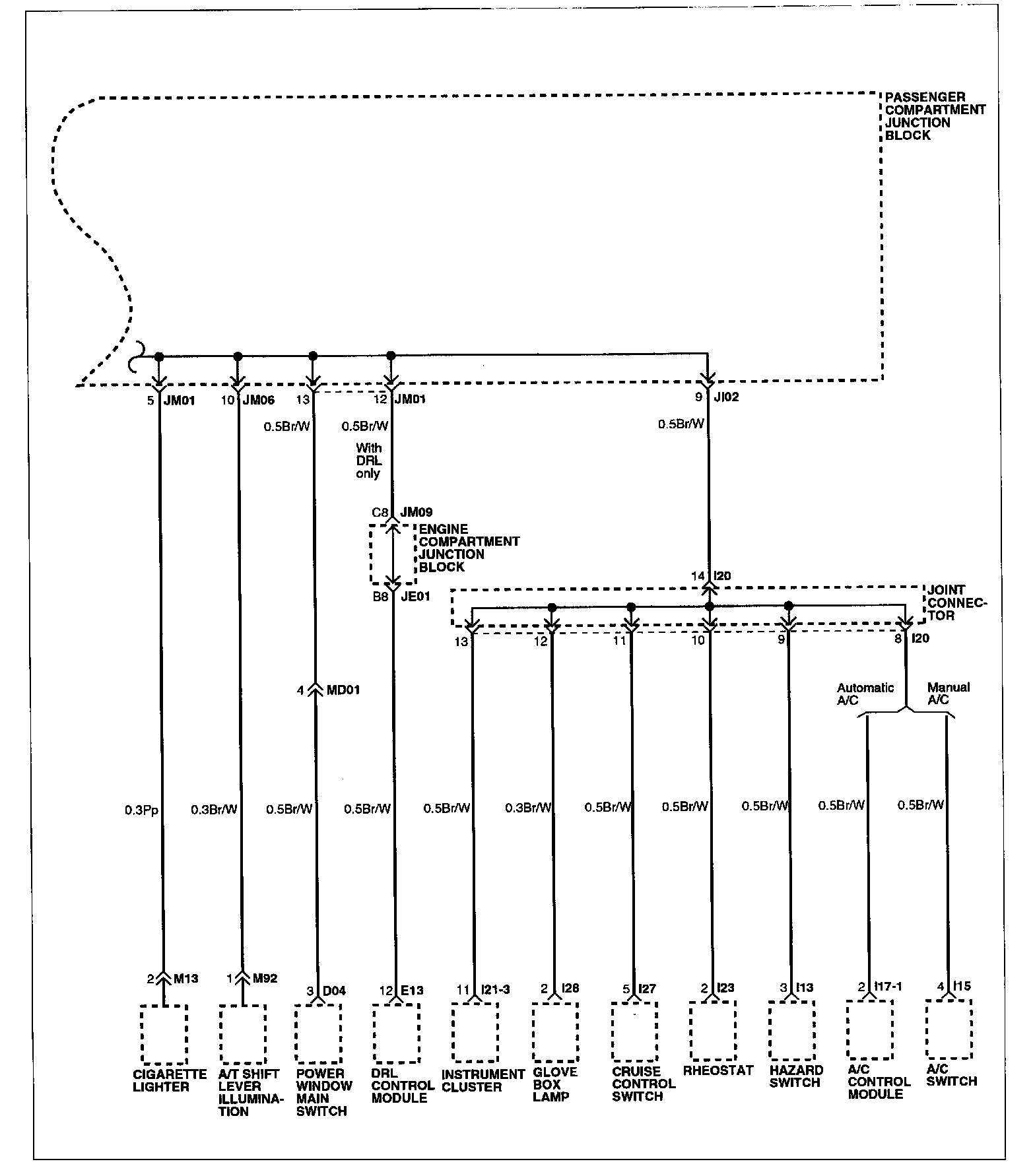

Image SD-25 - Passenger Compartment Fuse Details (6):

Image SD-26 - Passenger Compartment Fuse Details (7):

Image SD-27 - Passenger Compartment Fuse Details (8):

Image SD-28 - Passenger Compartment Fuse Details (9):

Image SD-29 - Passenger Compartment Fuse Details (10):

Image SD-30 - Passenger Compartment Fuse Details (11):

Image SD-31 - Passenger Compartment Fuse Details (12):
