Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
2001
>>
Sonata L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Ignition System
Ignition System

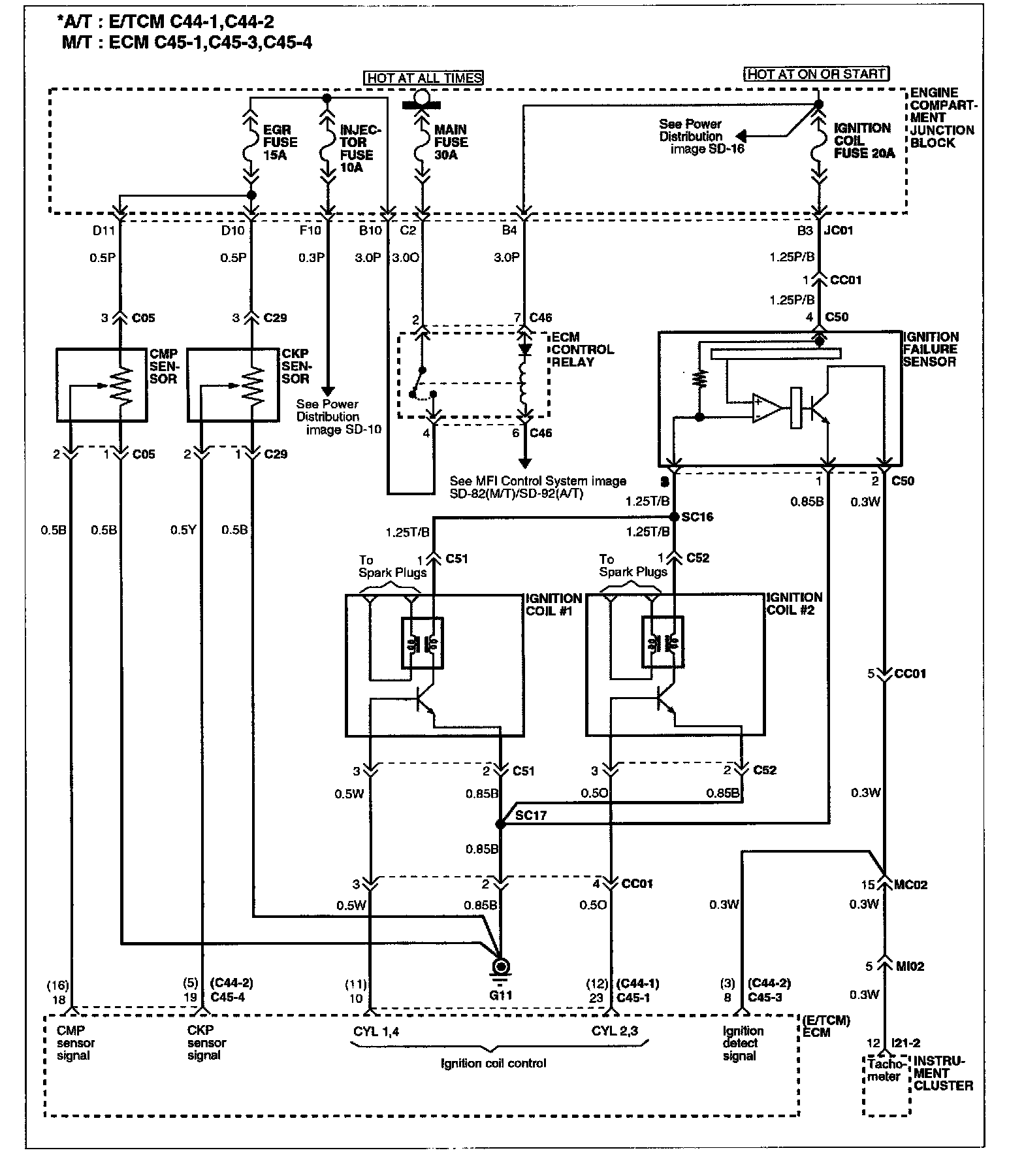

Image SD-64 - Ignition System (DOHC) (1):
