Hyundai
>>
2001
>>
Sonata L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
Radio, Stereo, and Compact Disc

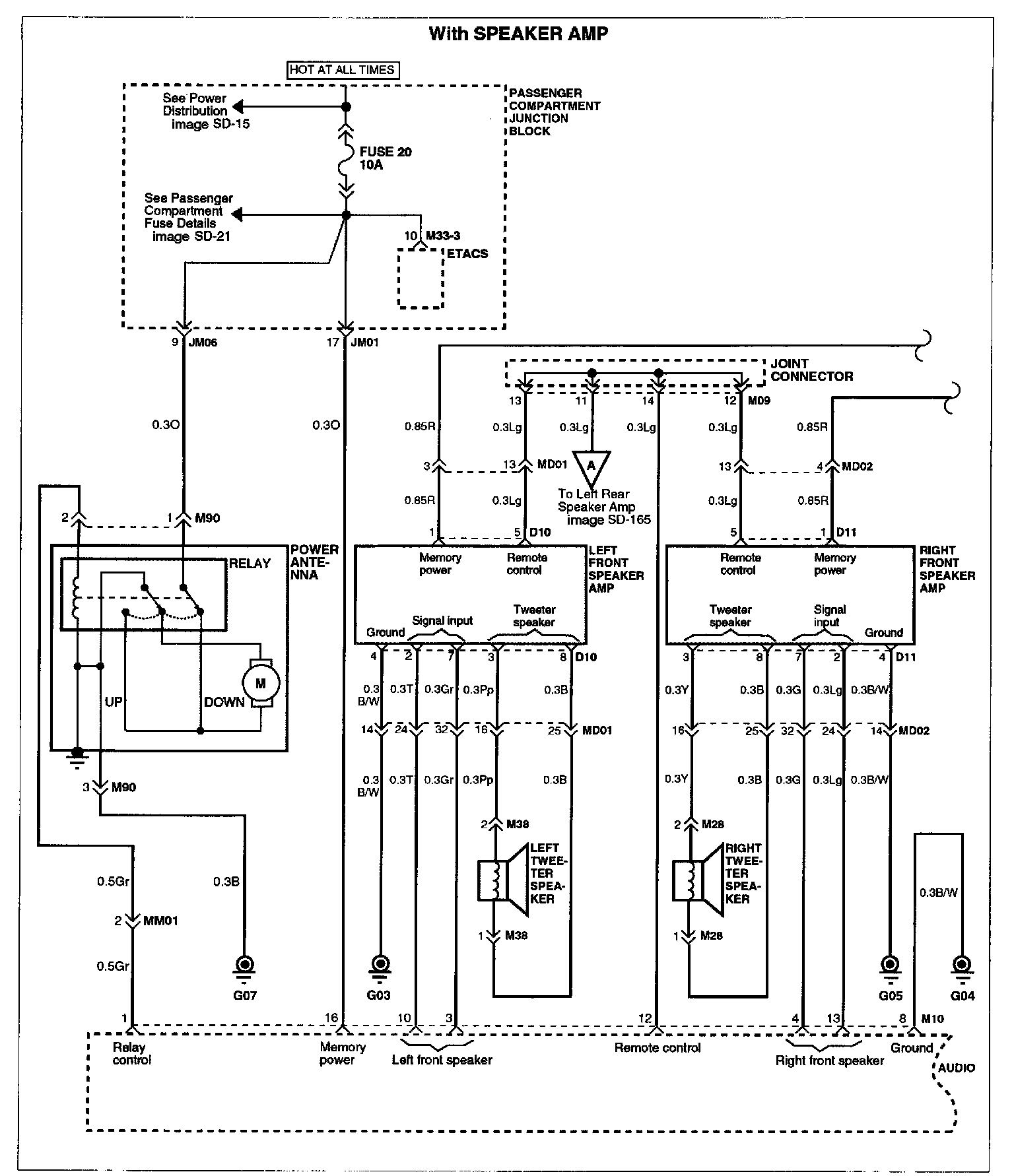

Image SD-164 - Audio System (1):

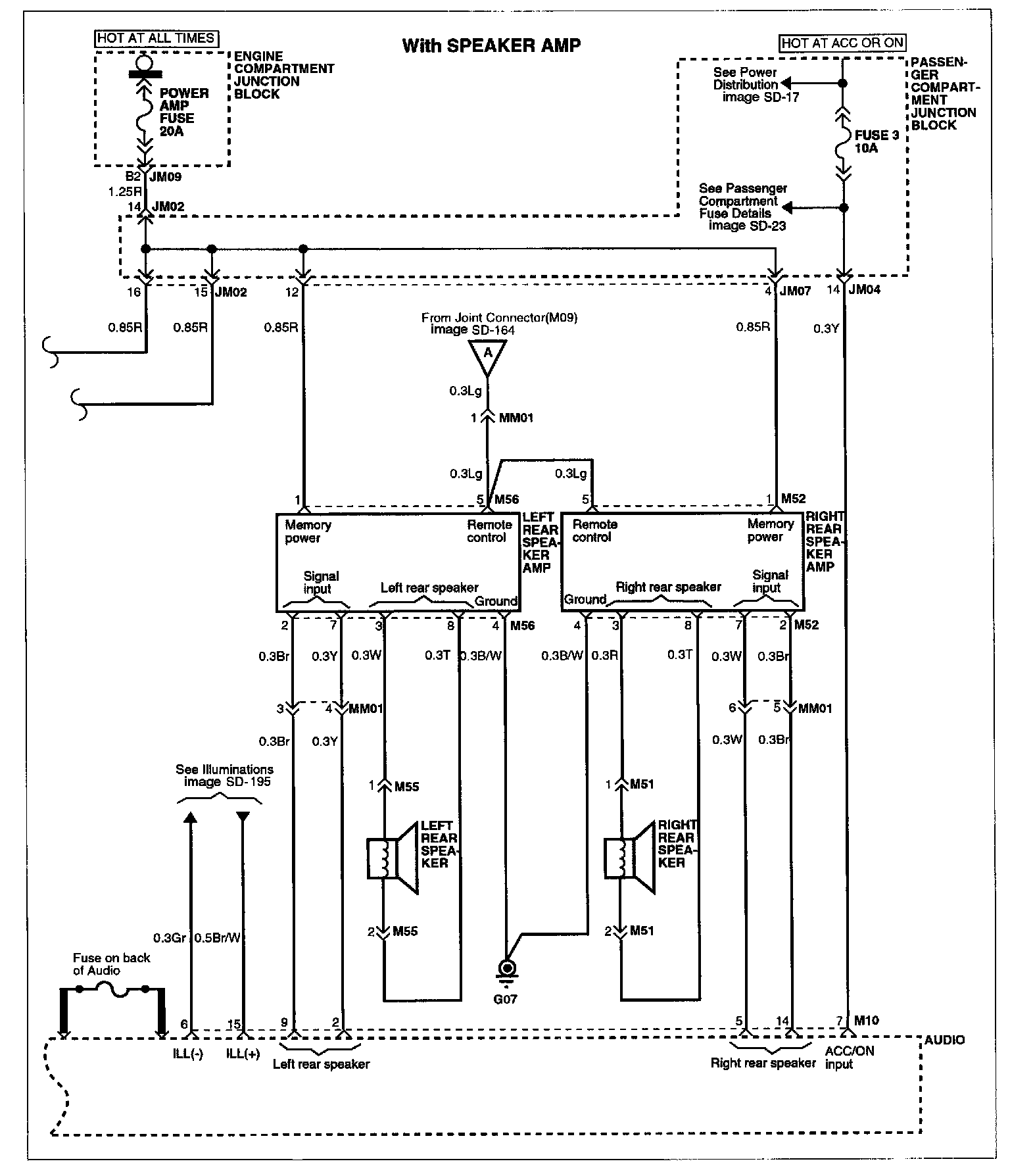

Image SD-165 - Audio System (2):
Image SD-166 - Audio System (3):
