Home >> Hyundai >> 2001 >> Sonata L4-2.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Seat Temperature Element

Seat Temperature Element

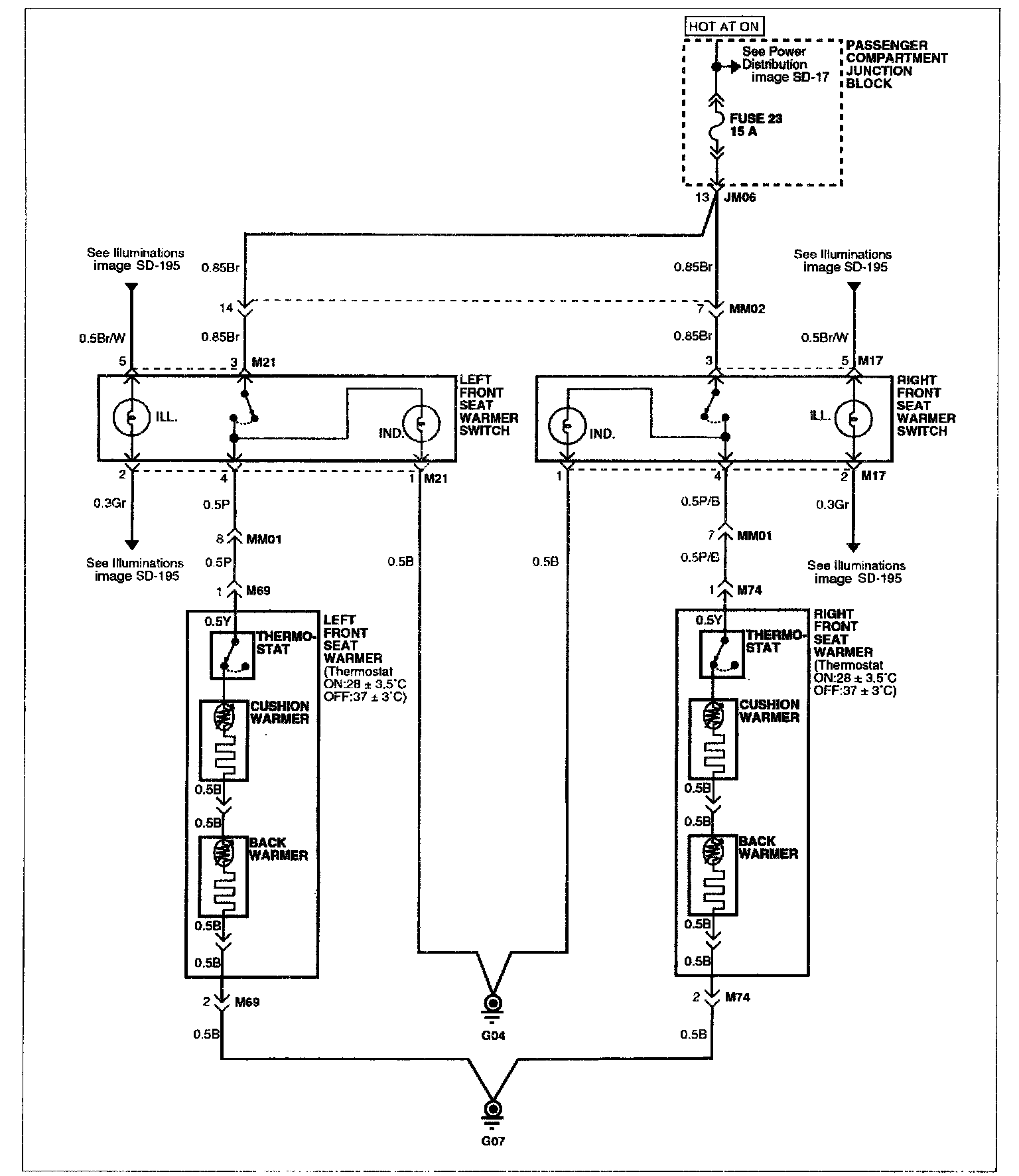

Image SD-220 - Seat Warmer (1):
