Tightening Torque Specifications

TIGHTENING TORQUE





1 of 3





2 of 3





3 of 3

Cylinder Head Removal

Loosening Sequence:

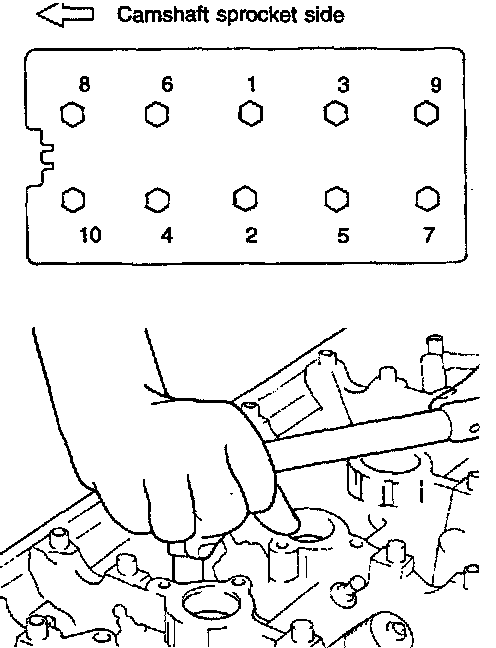

Using the special tool (09221-32001), remove the cylinder head bolts as shown in the illustration.

Cylinder Head Installation

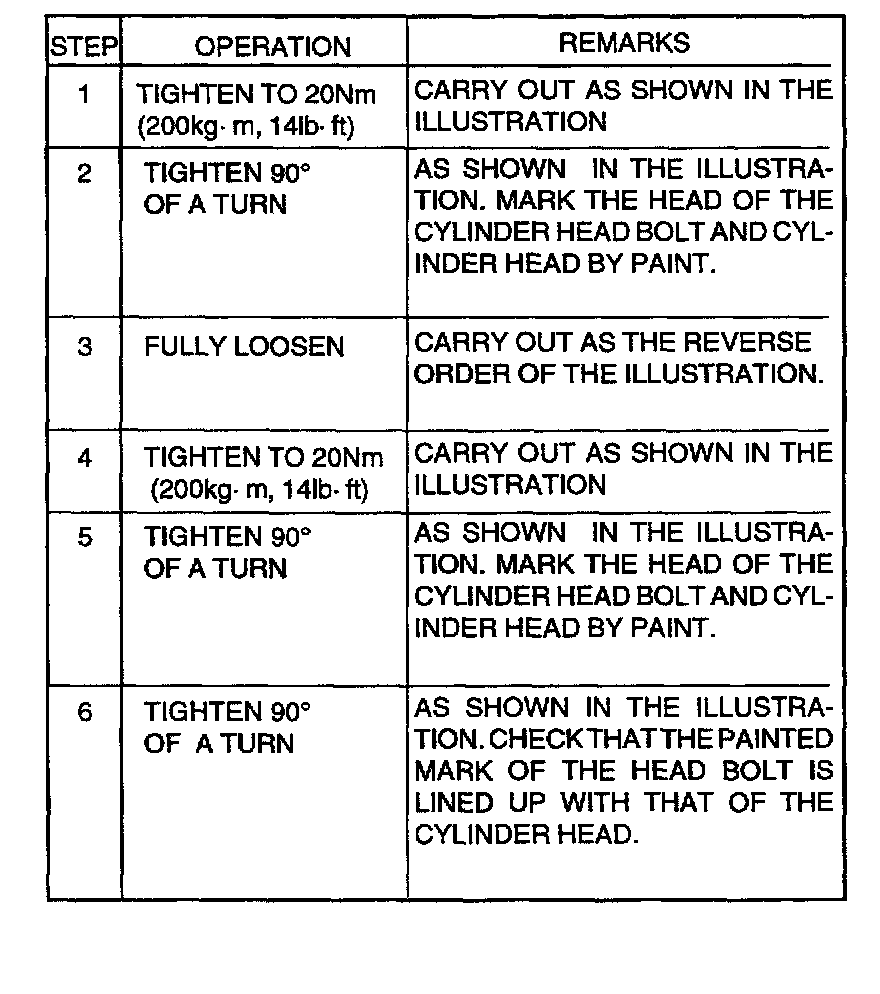

Procedures for Installing Cylinder Head (With Replacing Head Bolts)

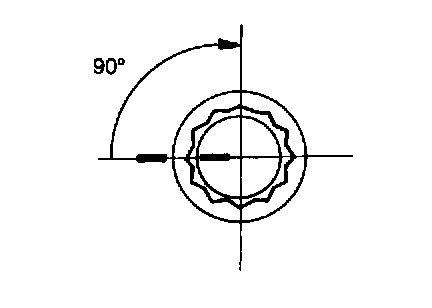

Tightening Sequence:

1 of 4





2 of 4





3 of 4





4 of 4

Procedures for installing cylinder head (Without replacing head bolts)

Tightening Sequence:

1 of 3





2 of 3





3 of 3







Camshaft Bearing Cap Installation

Other

Cylinder Head Bolt
Maximum Length 99.4 ± 0.35 mm (3.9 in.)
