Home >> Hyundai >> 2001 >> Sonata L4-2.4L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Electrical Diagrams >> Gauges

Gauges

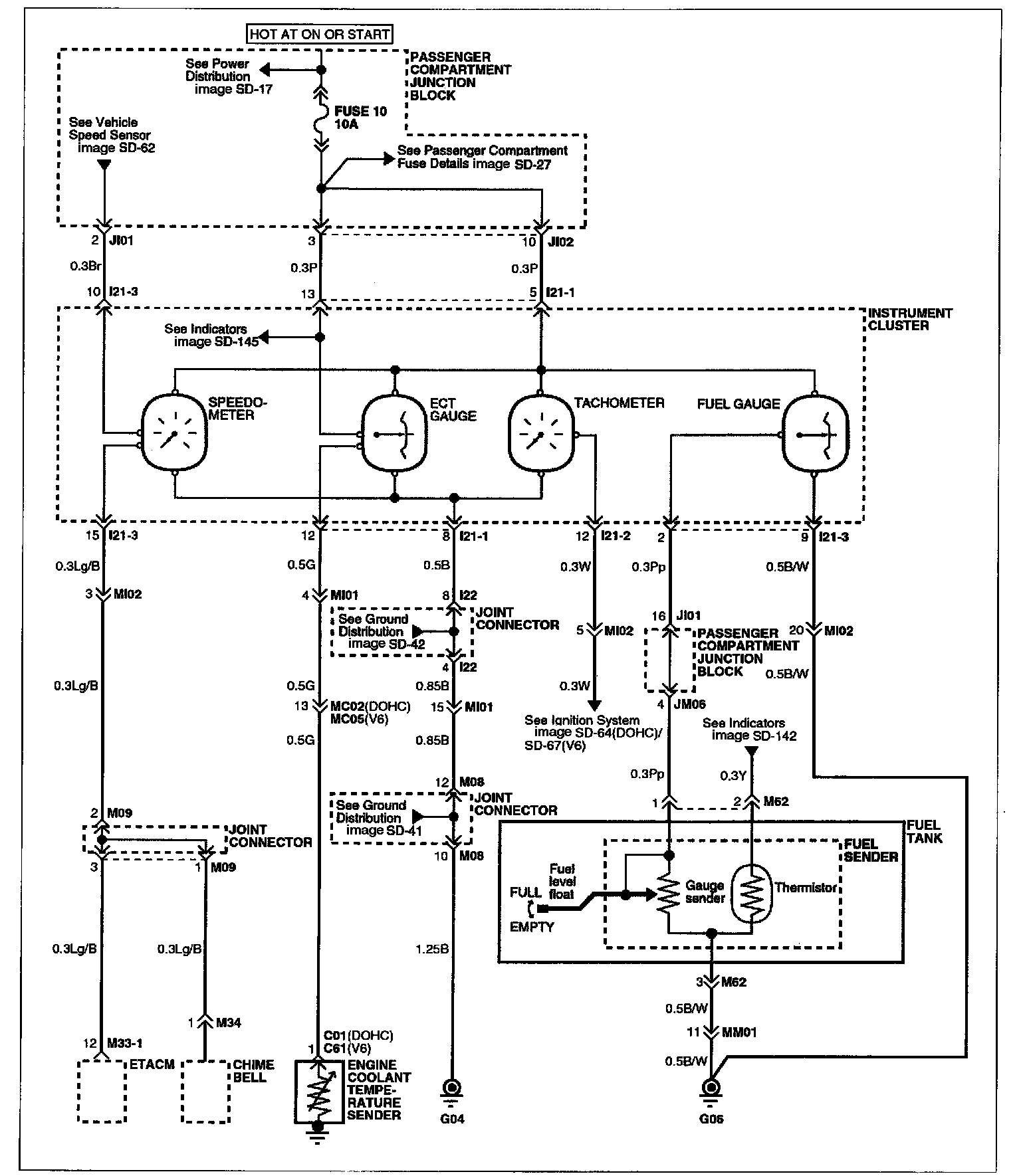

Image SD-148 - Gauges (1):
