Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Indicators
Indicators

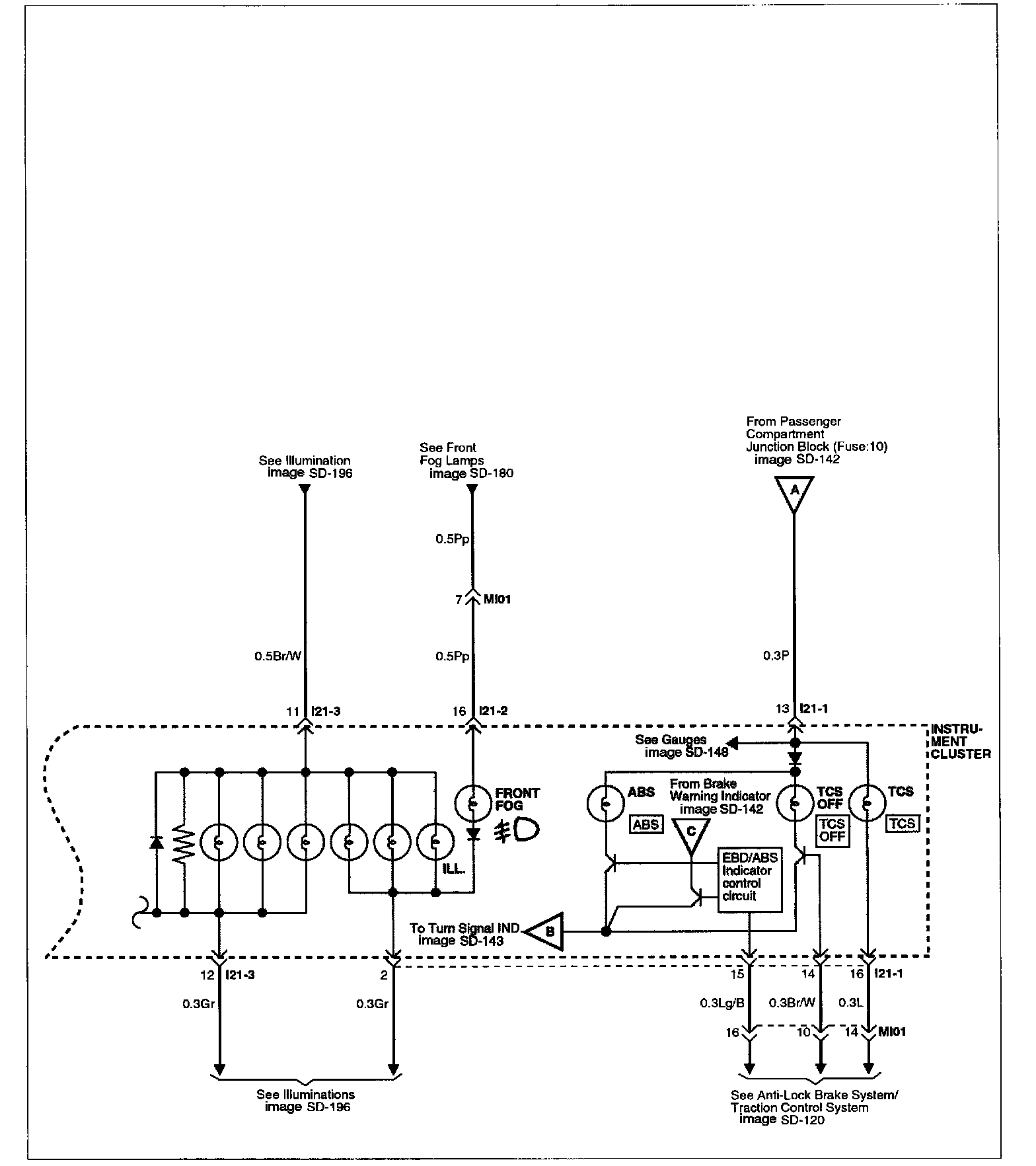

Image SD-142 - Indicators (1):
Image SD-143 - Indicators (2):
Image SD-144 - Indicators (3):
Image SD-145 - Indicators (4):
