Home
>>
Hyundai
>>
2001
>>
Sonata L4-2.4L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Backup Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

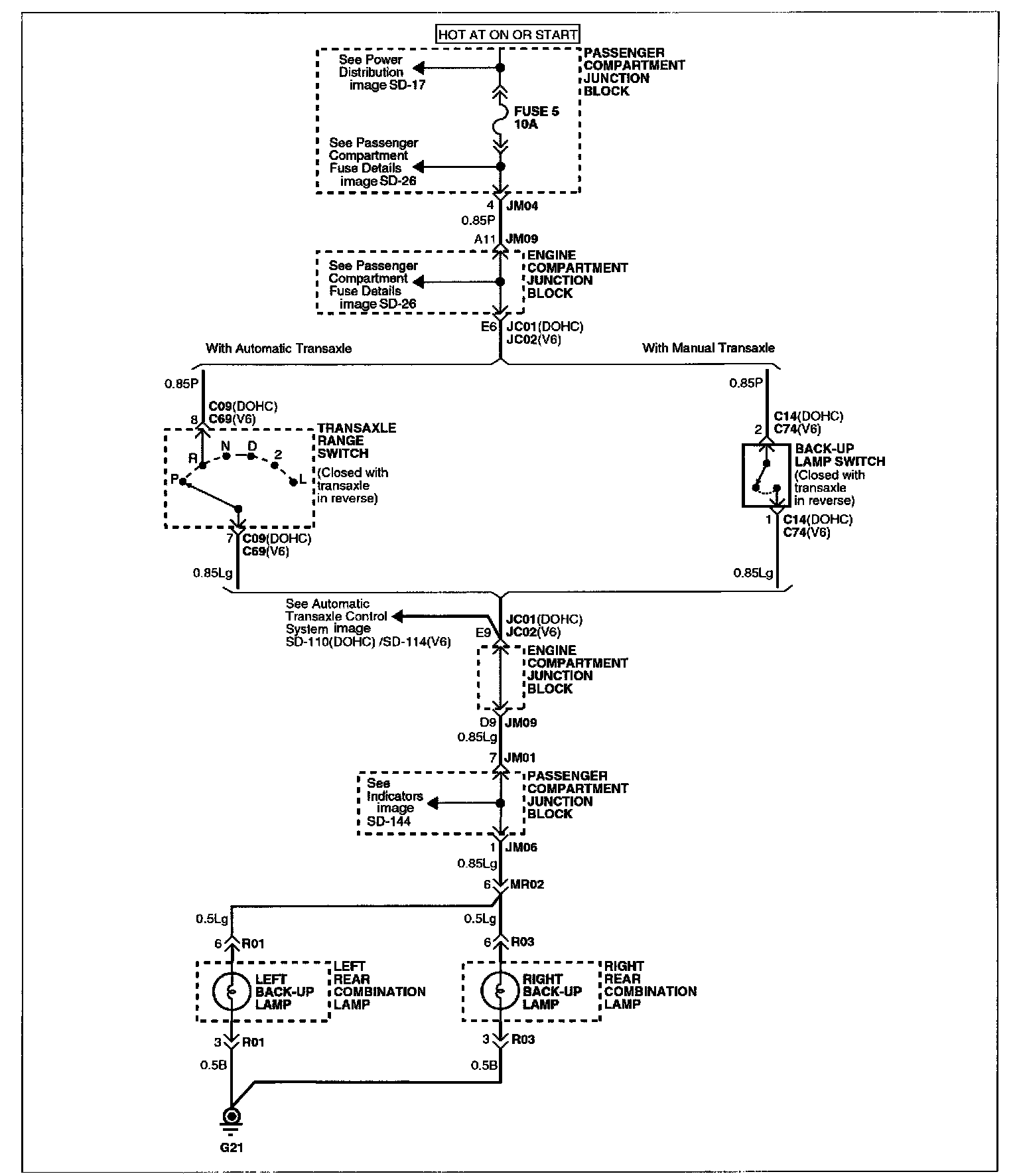

Image SD-186 - Back-up Lamps (1):
