Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
2001
>>
Sonata L4-2.4L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

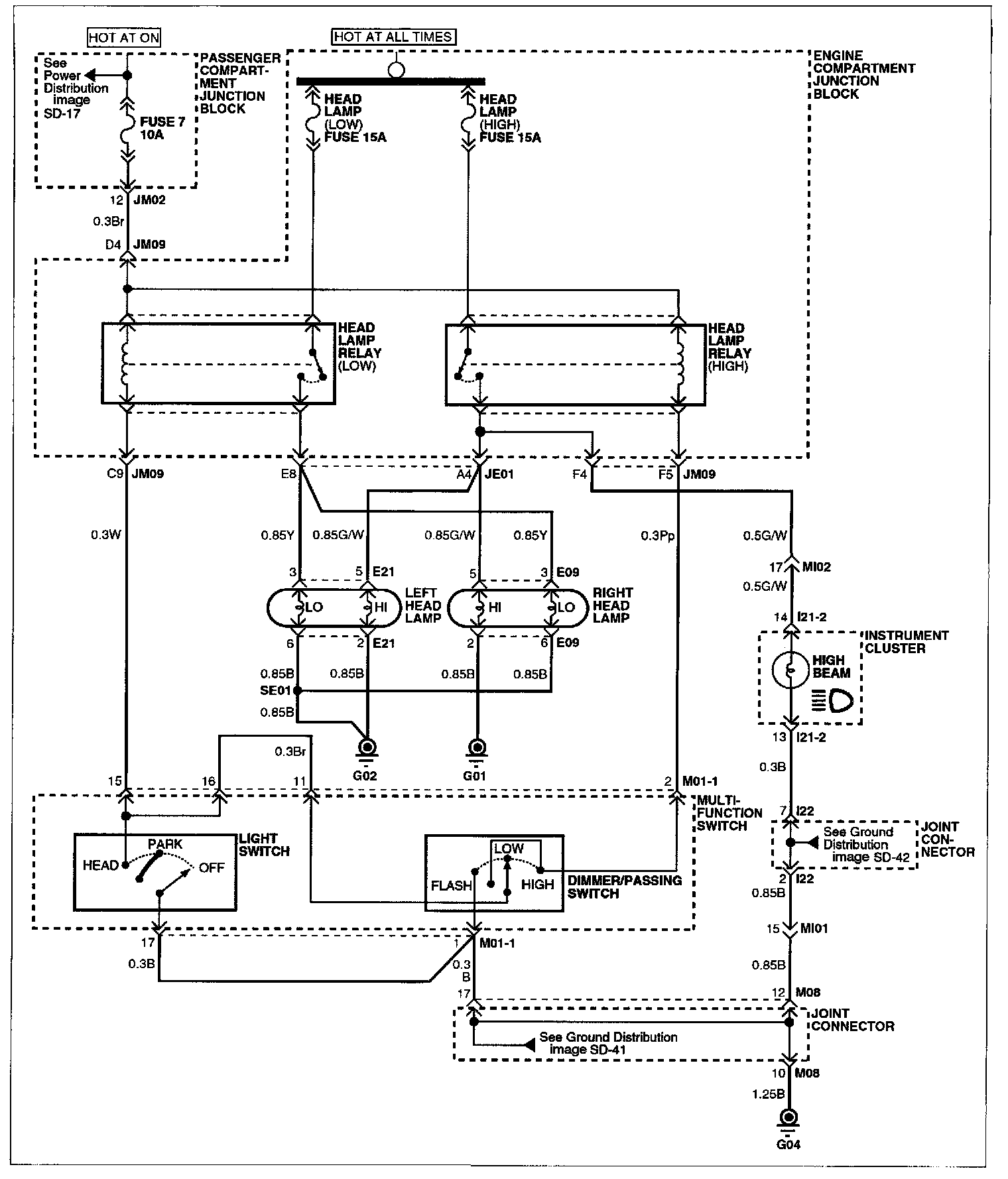

Image SD-170 - Head Lamps (1):
