Home >> Hyundai >> 2001 >> Sonata L4-2.4L >> Repair and Diagnosis >> Lighting and Horns >> Horn >> Diagrams >> Electrical Diagrams

Electrical Diagrams

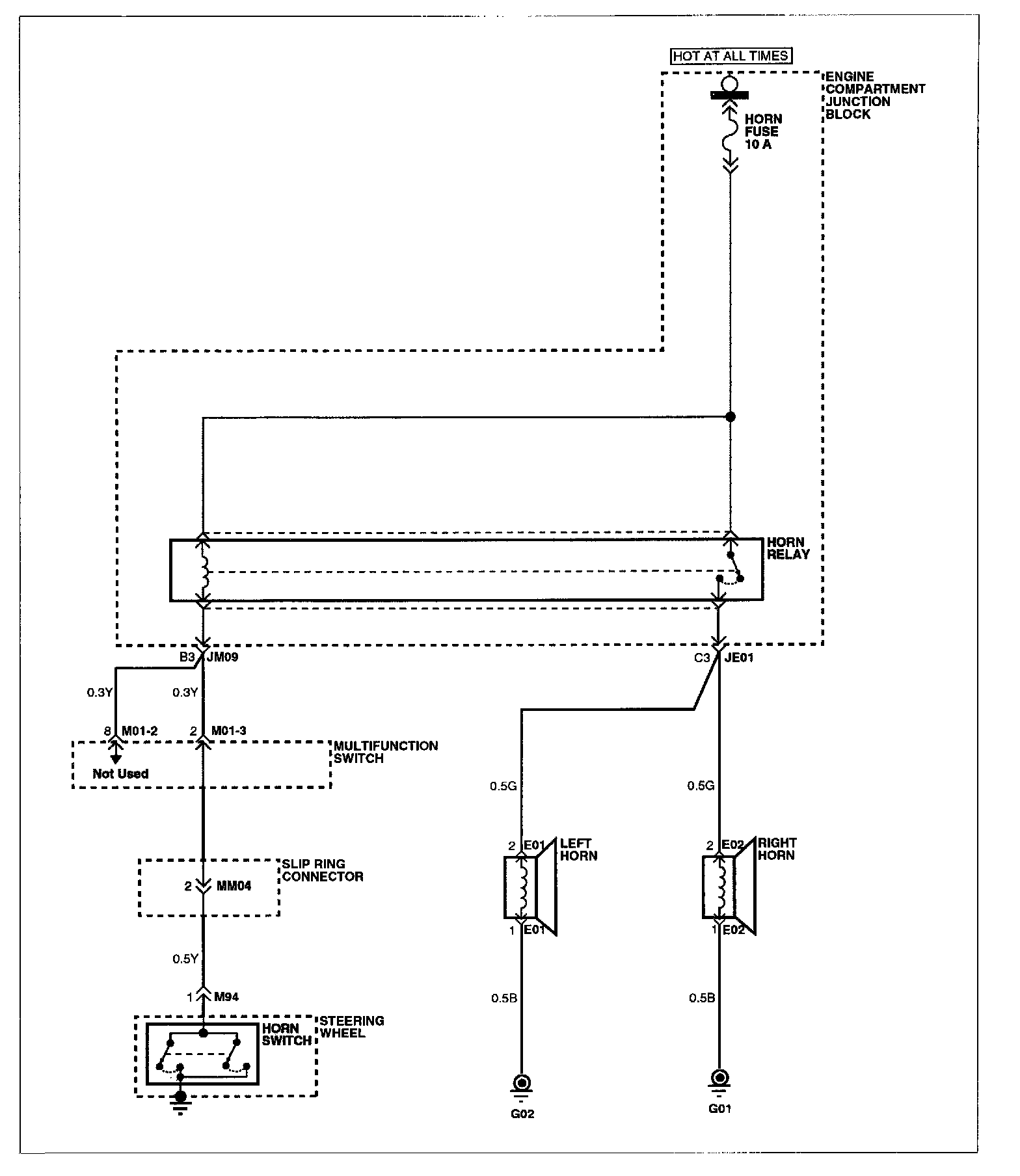

Image SD-168 - Horns (1):
