Electrical Diagrams

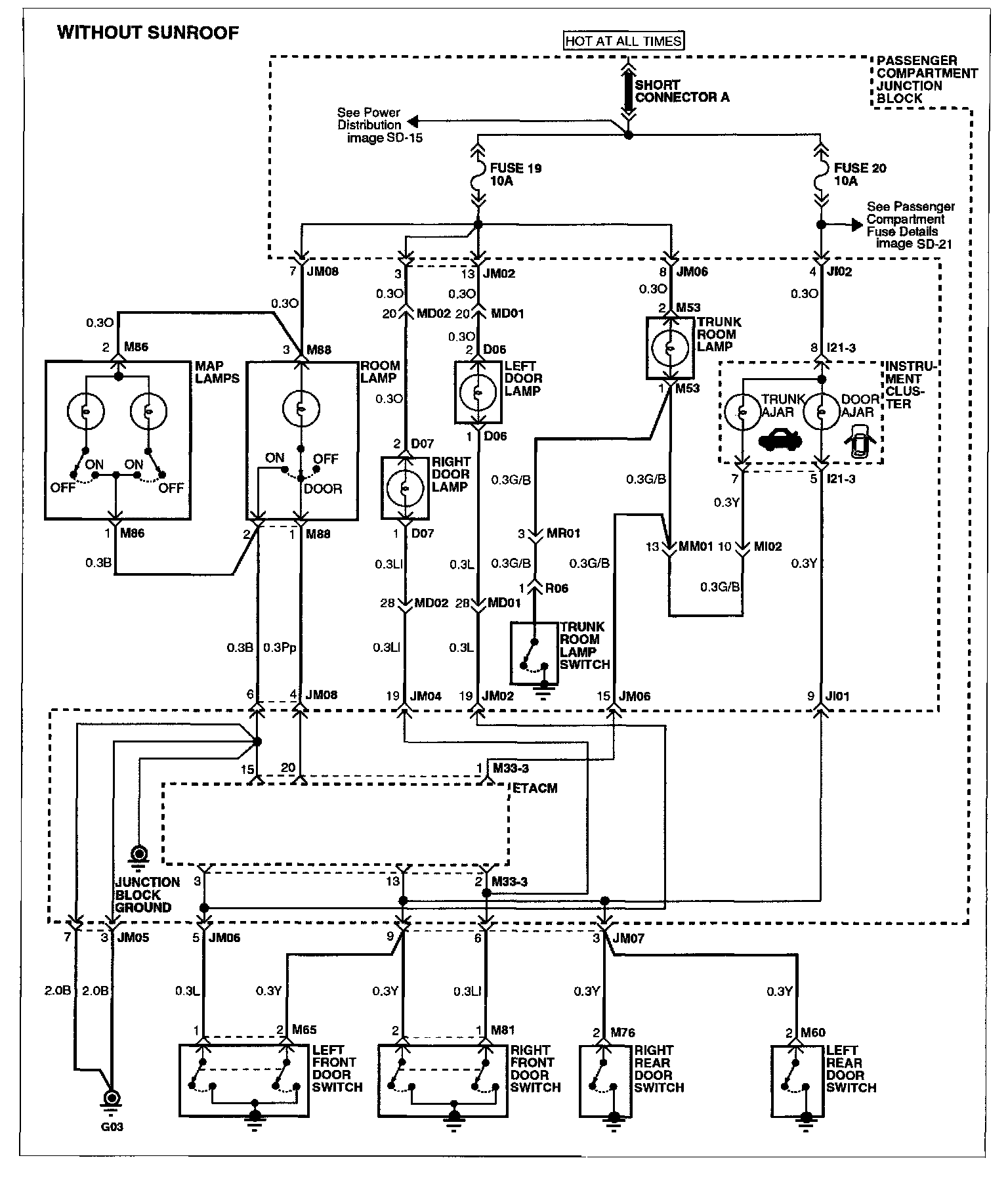

Image SD-190 - Courtesy And Trunk Lamps (1):

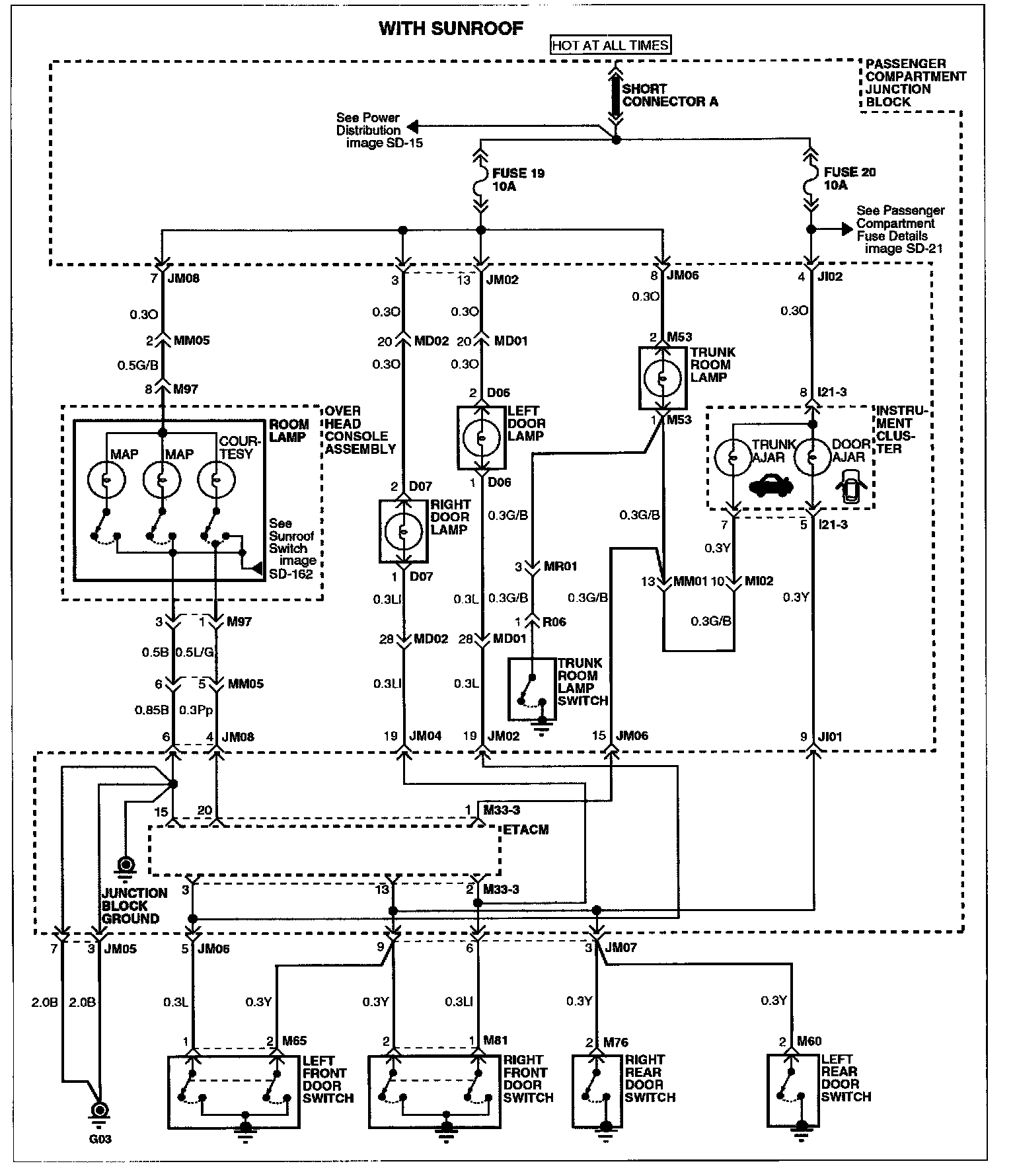

Image SD-191 - Courtesy And Trunk Lamps (2):
