Grounding Point: Locations
G01:

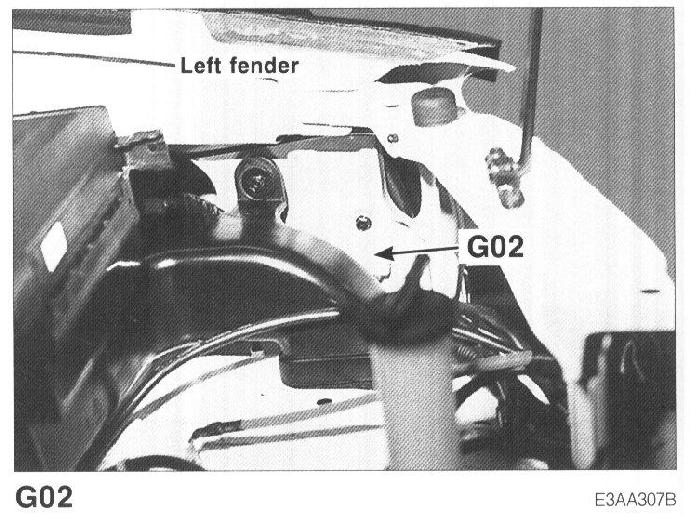

G02:

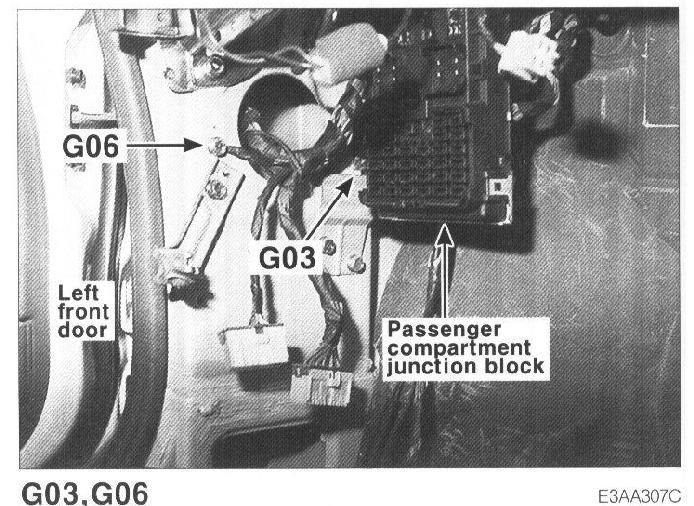

G03, G06:

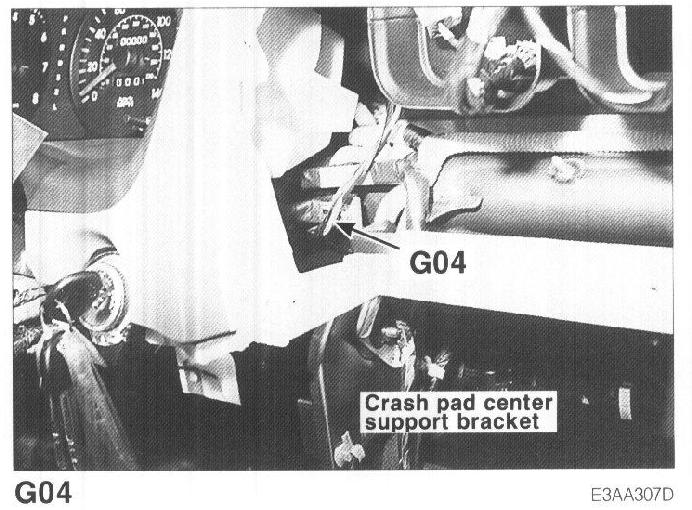

G04:
G05:

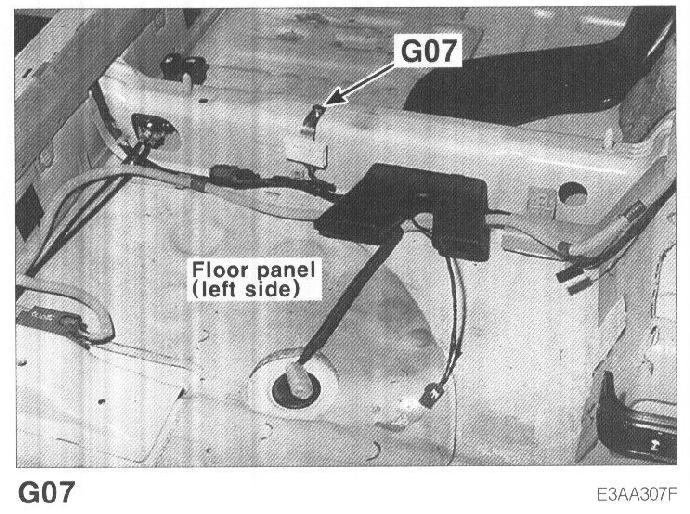

G07:
G08:

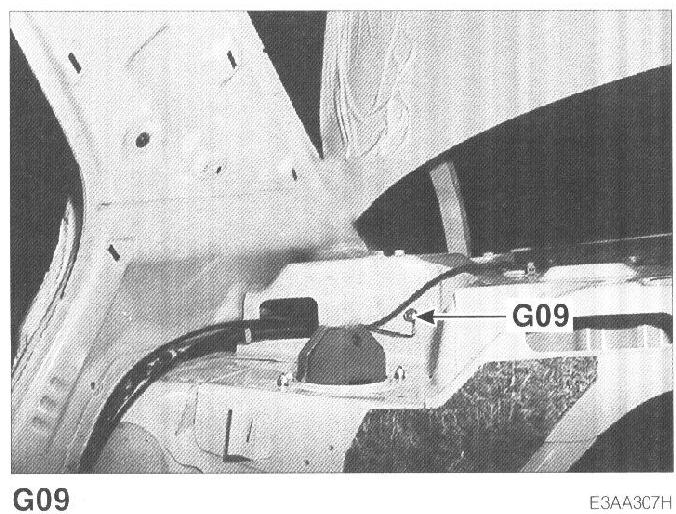

G09:
G10 SRS Control Module Ground, G13, G14 (DOHC), G18, G19 (V6):
G11 (DOHC):
G12 (DOHC), G17 (V6):
G15 (DOHC), G20 (V6):
G21:
G23:
