Wiring Diagrams

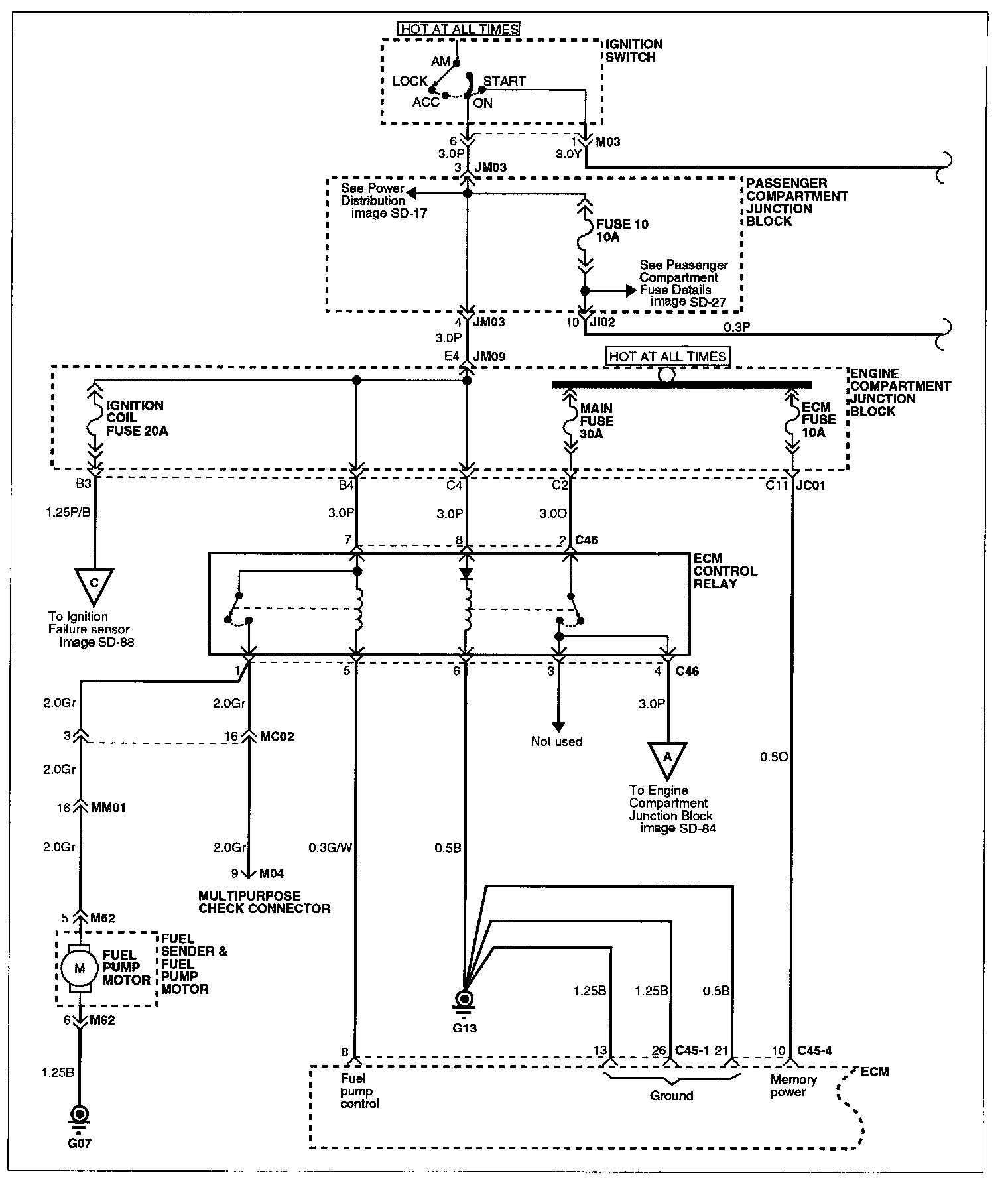

Image SD-82 - MFI Control System (DOHC With M/T) (1):

Image SD-83 - MFI Control System (DOHC With M/T) (2):

Image SD-84 - MFI Control System (DOHC With M/T) (3):

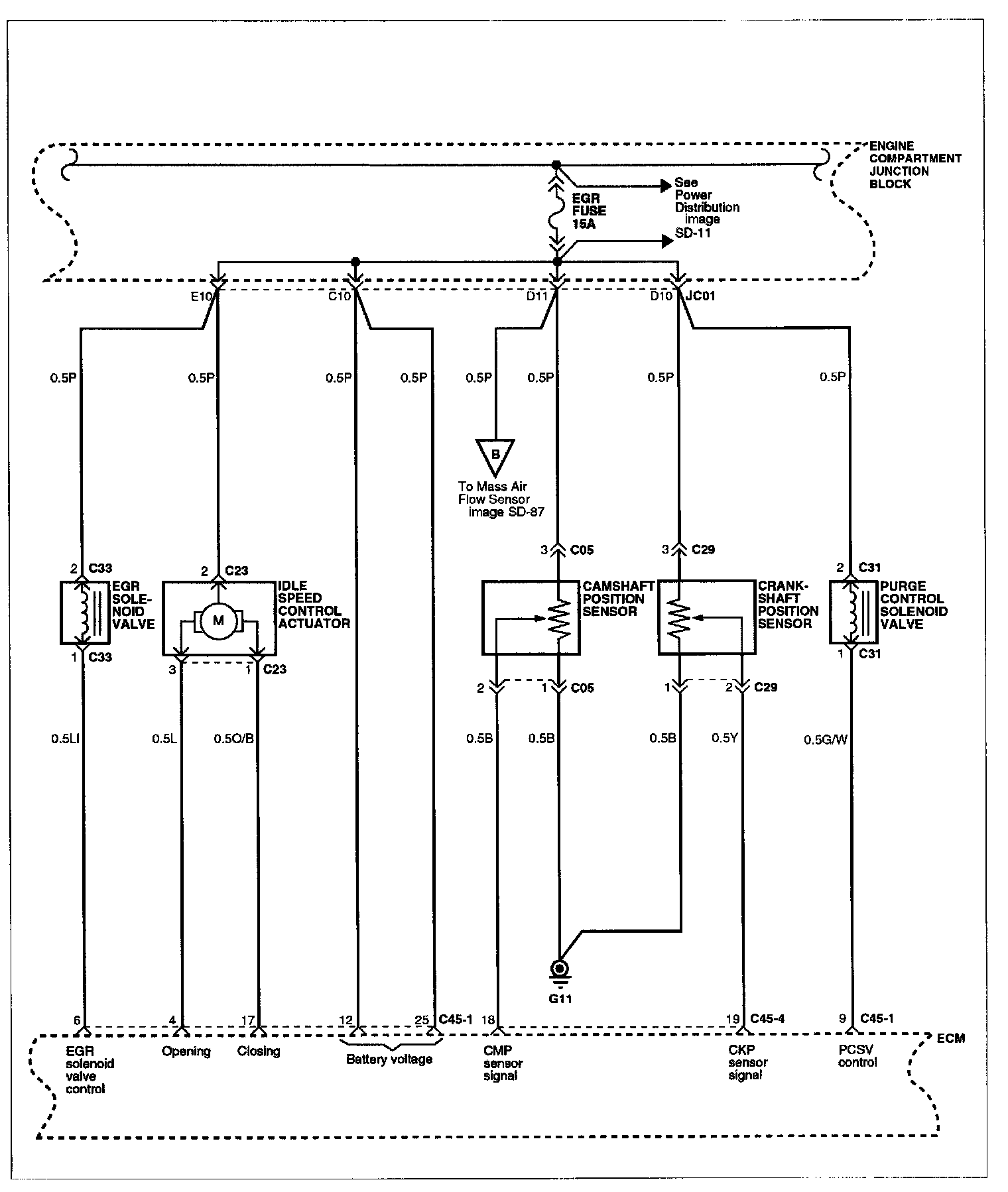

Image SD-85 - MFI Control System (DOHC With M/T) (4):

Image SD-86 - MFI Control System (DOHC With M/T) (5):

Image SD-87 - MFI Control System (DOHC With M/T) (6):

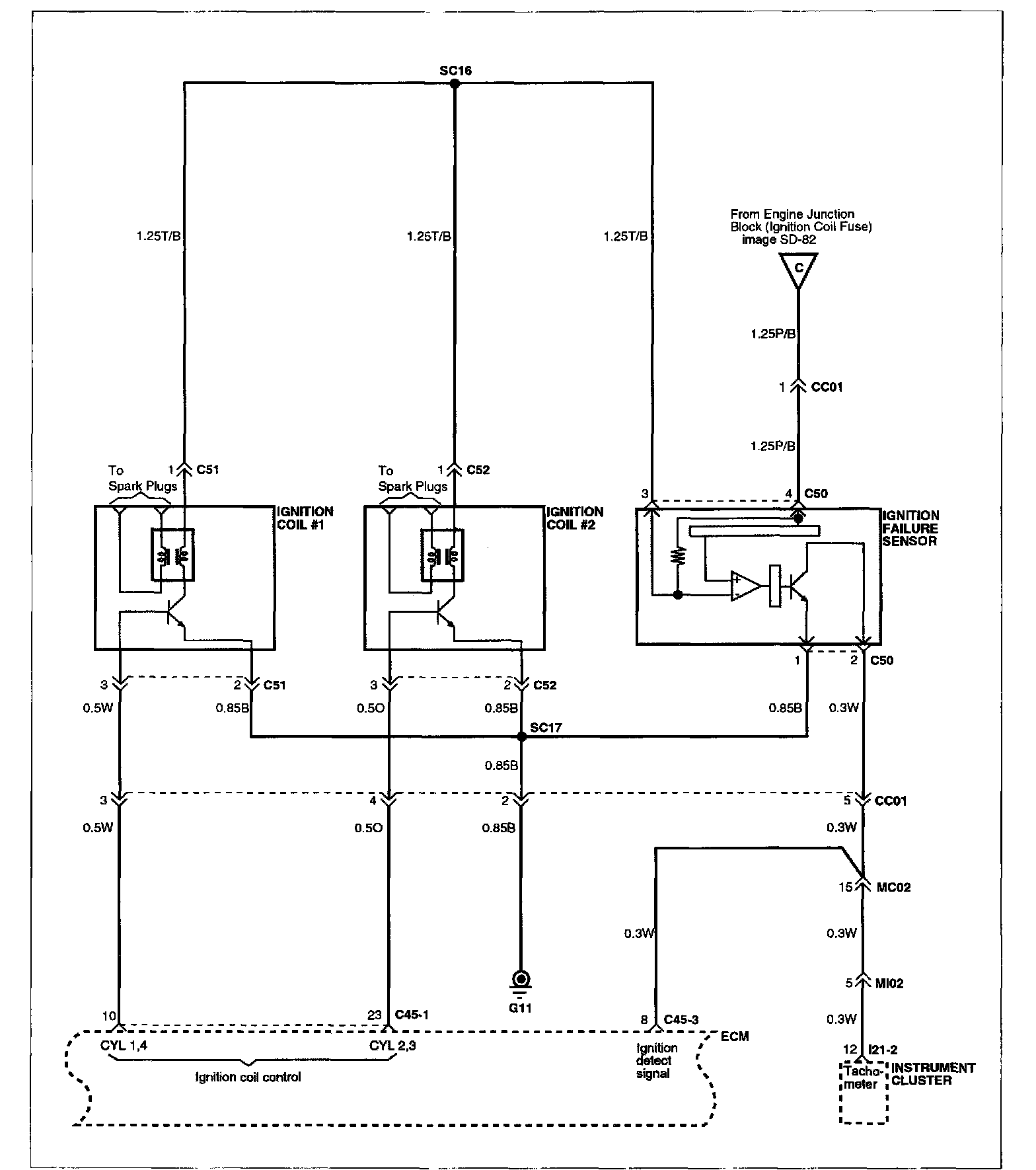

Image SD-88 - MFI Control System (DOHC With M/T) (7):

Image SD-89 - MFI Control System (DOHC With M/T) (8):

Image SD-92 - MFI Control System (DOHC With A/T) (1):

Image SD-93 - MFI Control System (DOHC With A/T) (2):

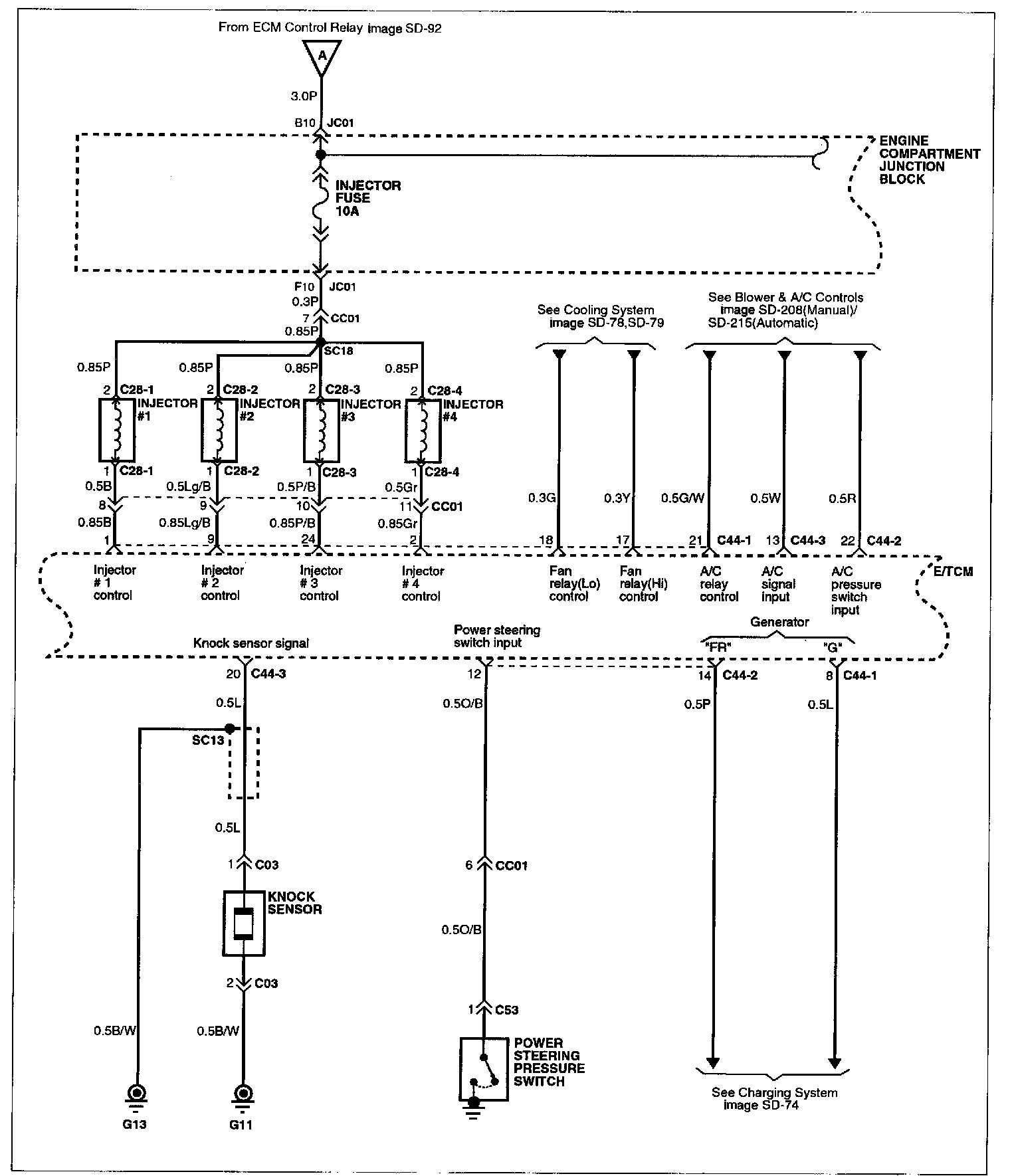

Image SD-94 - MFI Control System (DOHC With A/T) (3):

Image SD-95 - MFI Control System (DOHC With A/T) (4):

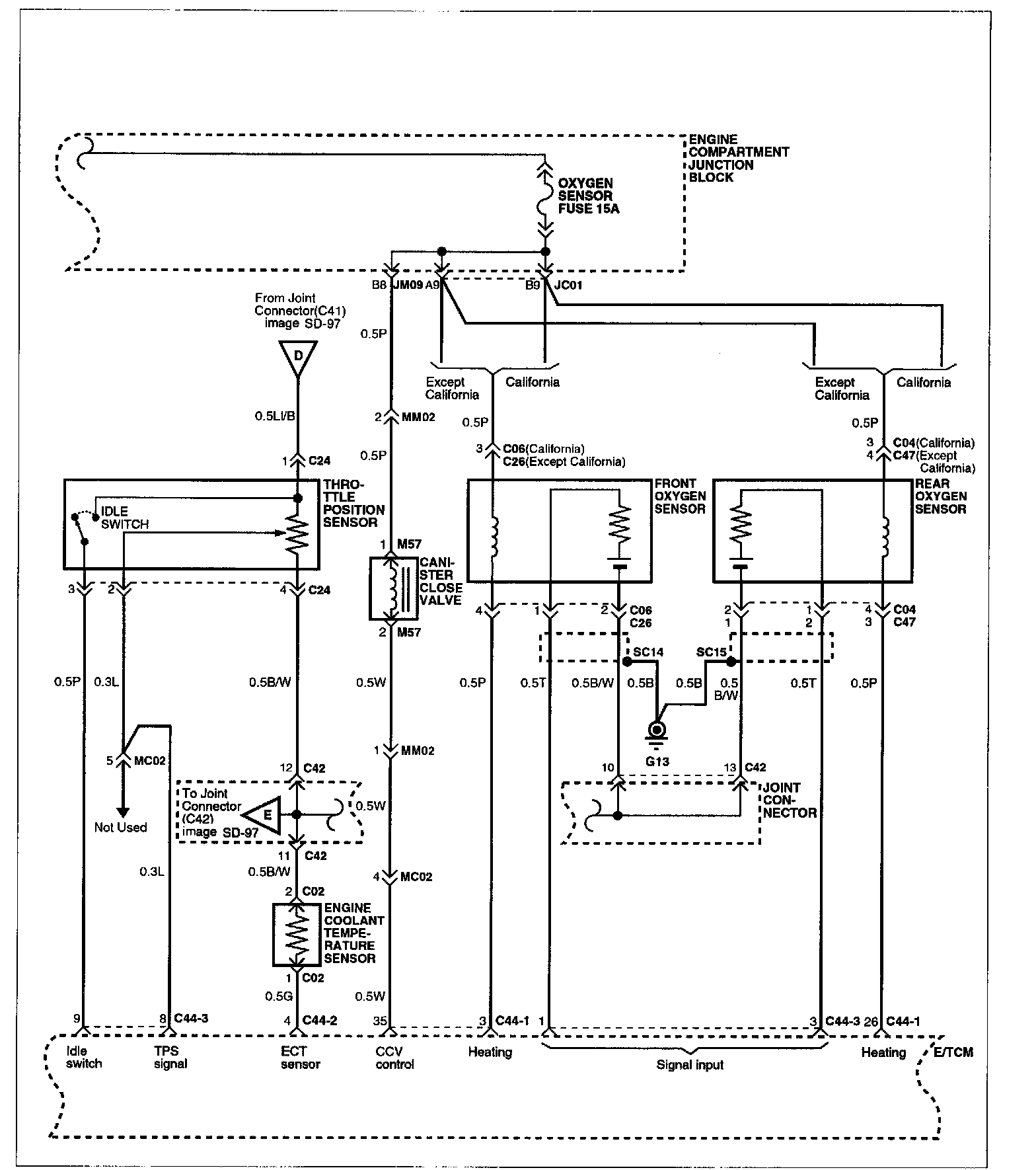

Image SD-96 - MFI Control System (DOHC With A/T) (5):

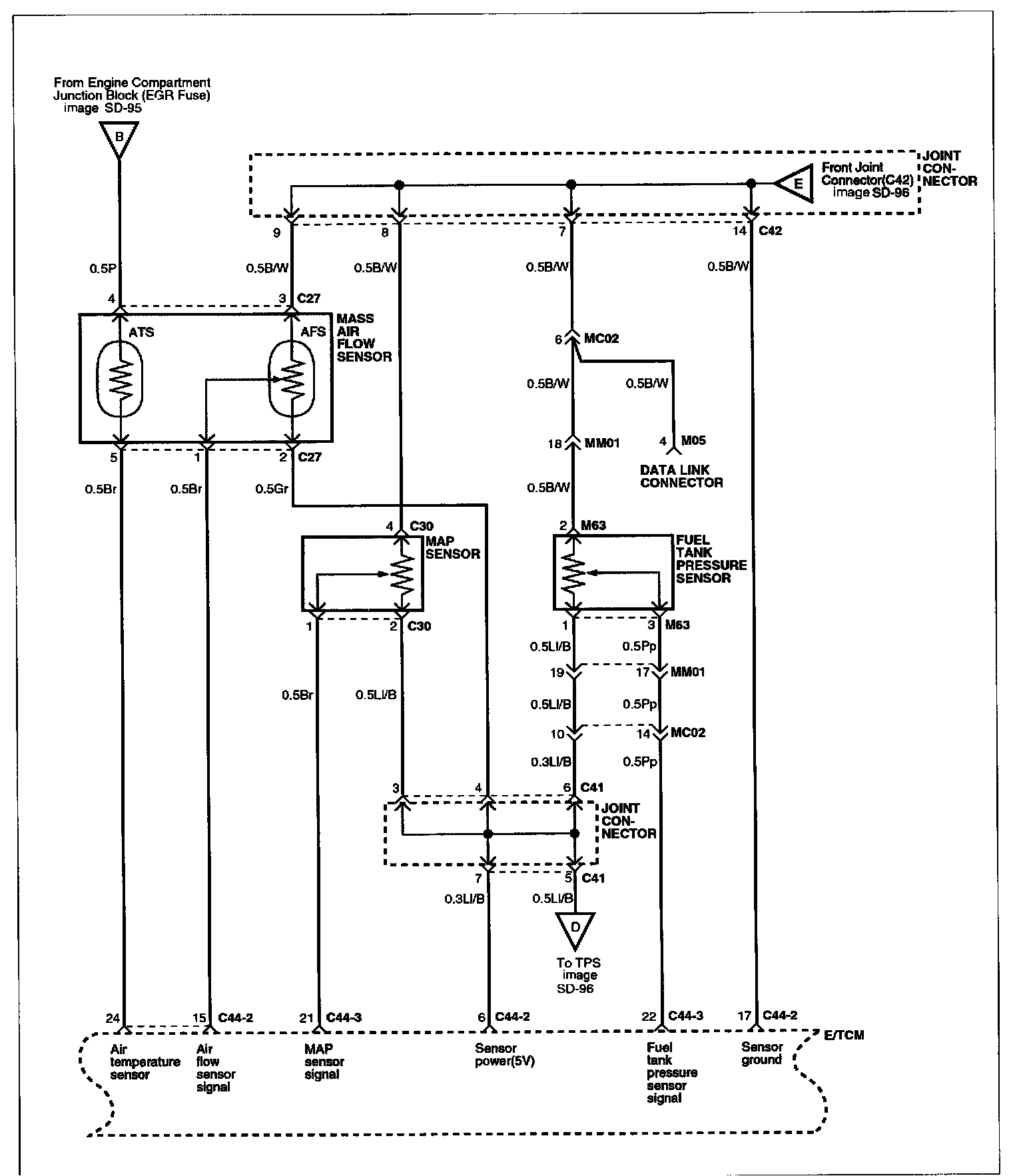

Image SD-97 - MFI Control System (DOHC With A/T) (6):

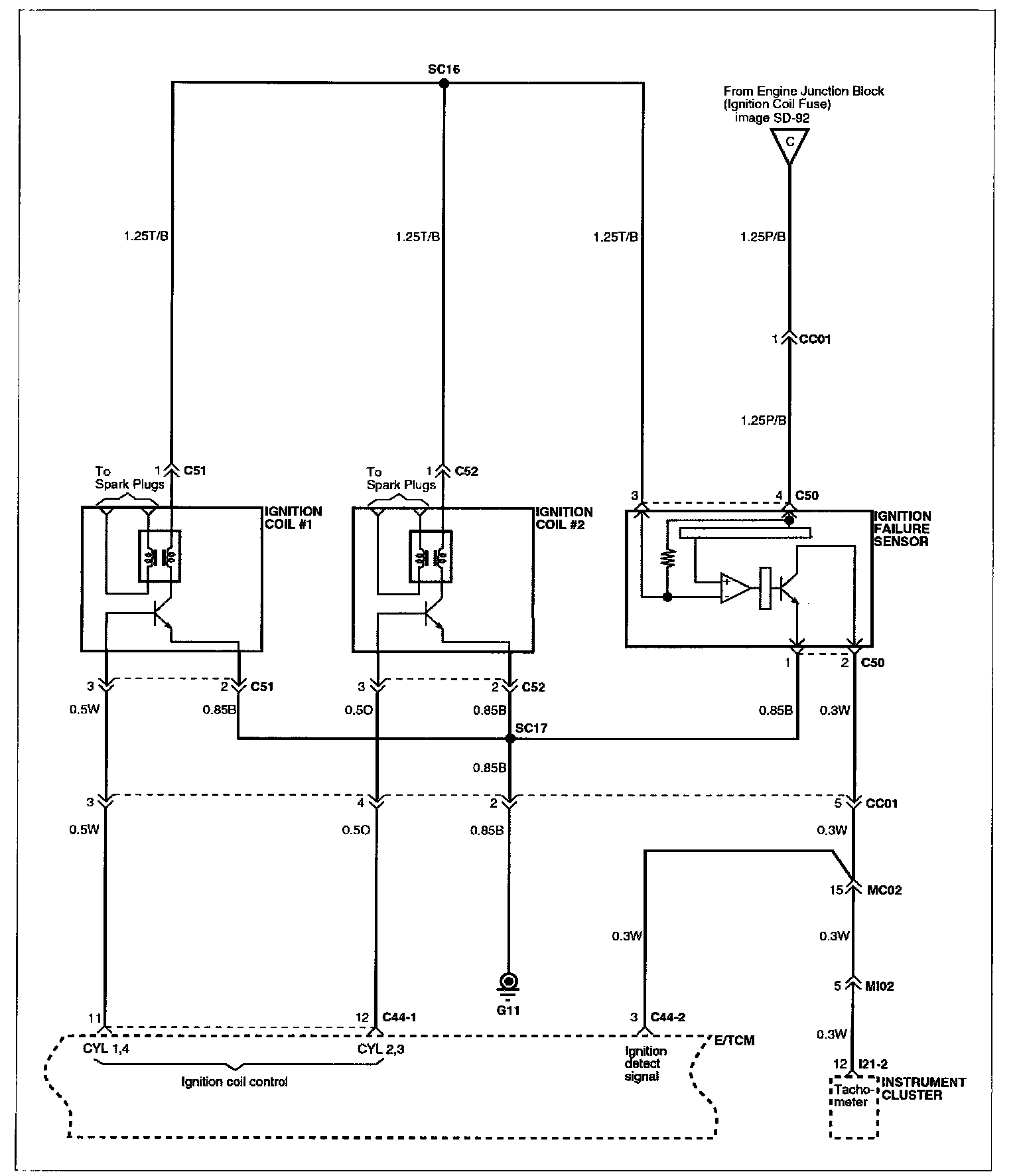

Image SD-98 - MFI Control System (DOHC With A/T) (7):

Image SD-99 - MFI Control System (DOHC With A/T) (8):
