Electrical Diagrams

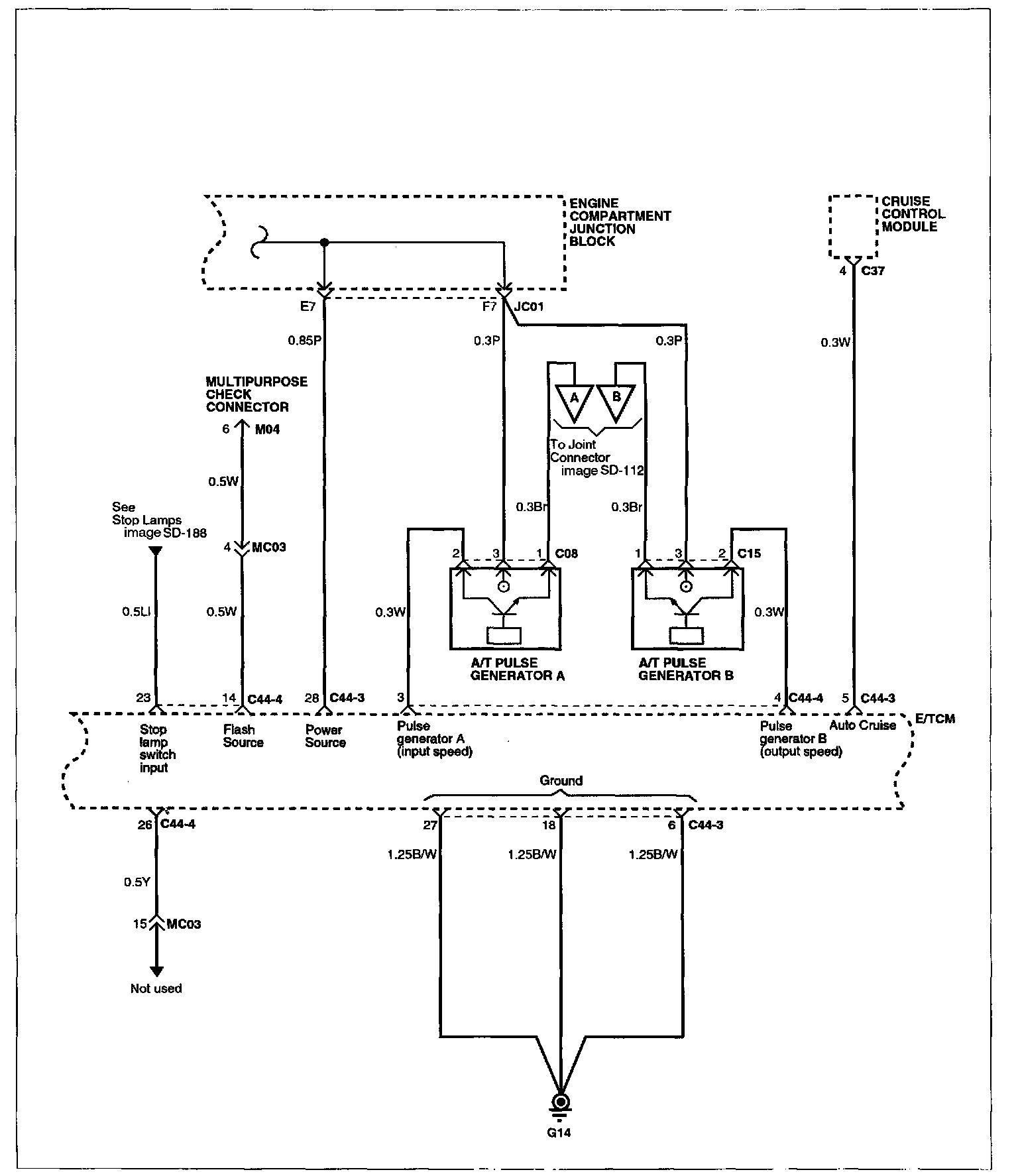

Image SD-110 - Automatic Transaxle Control System (DOHC) (1):

Image SD-111 - Automatic Transaxle Control System (DOHC) (2):

Image SD-112 - Automatic Transaxle Control System (DOHC) (3):

��IImage SD-113-1 - Automatic Transaxle Control System (DOHC):
