Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
2001
>>
Sonata L4-2.4L
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

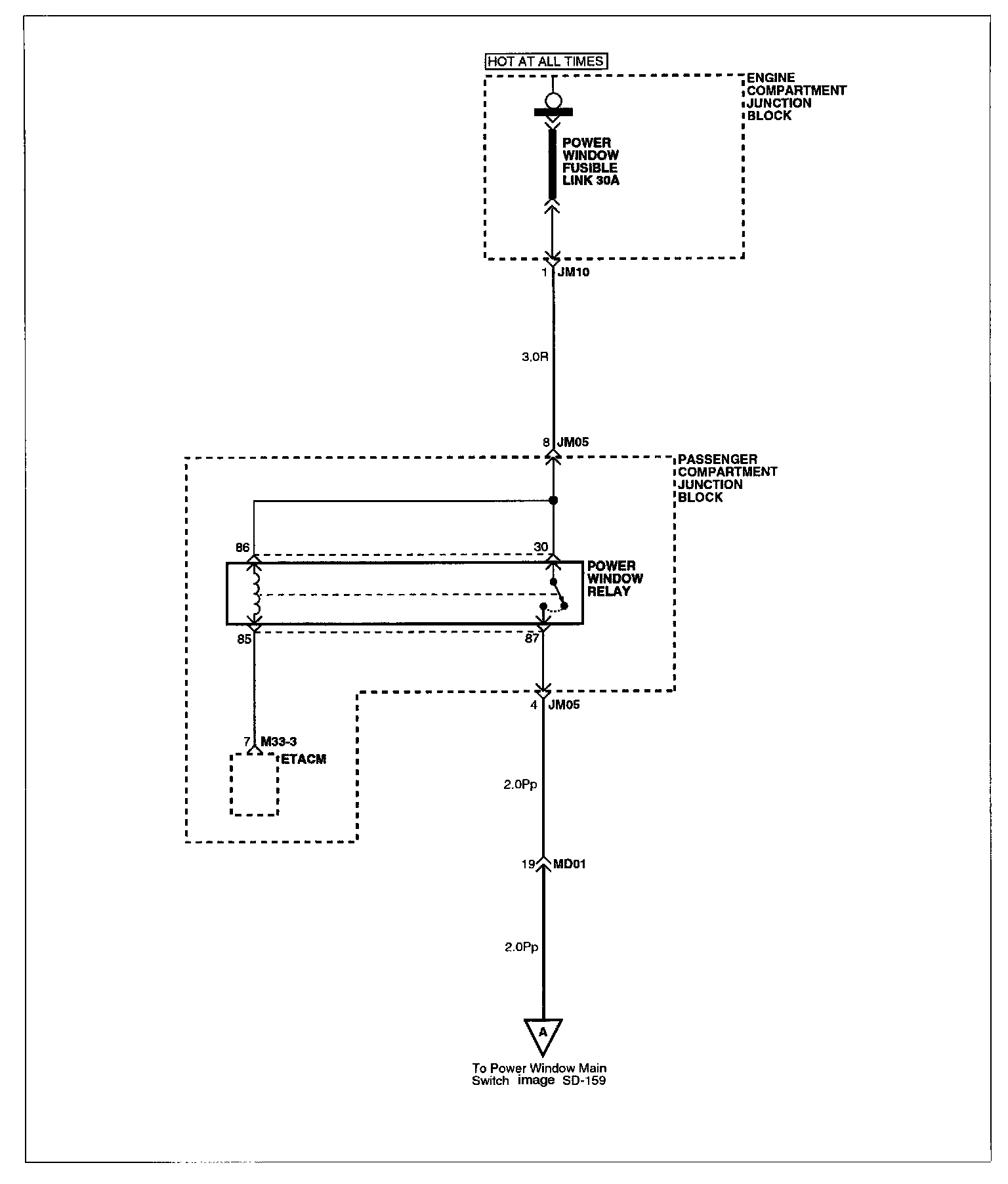

Image SD-158 - Power Windows (1):

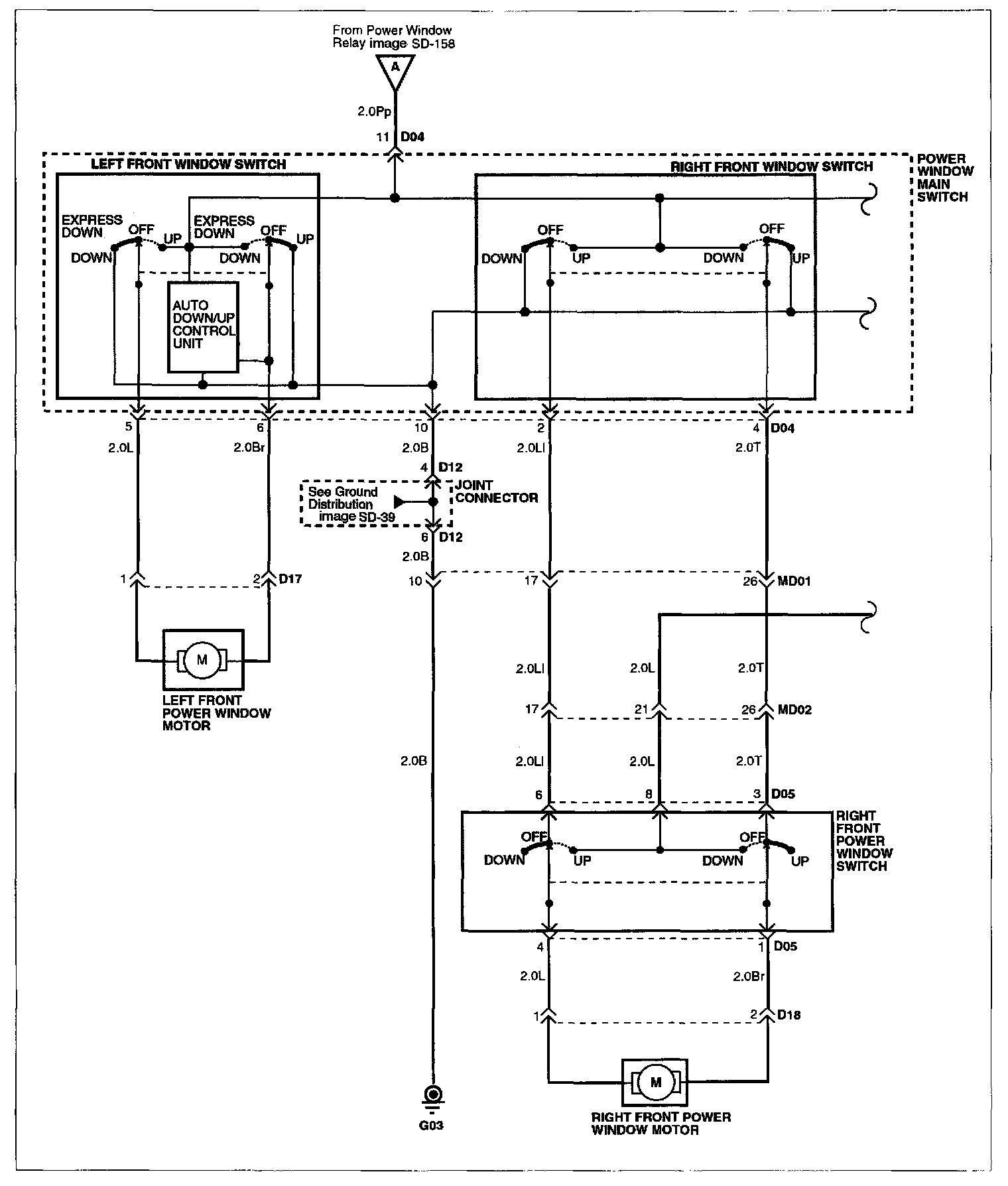

Image SD-159 - Power Windows (2):
Image SD-160 - Power Windows (3):
