Wiring Diagrams

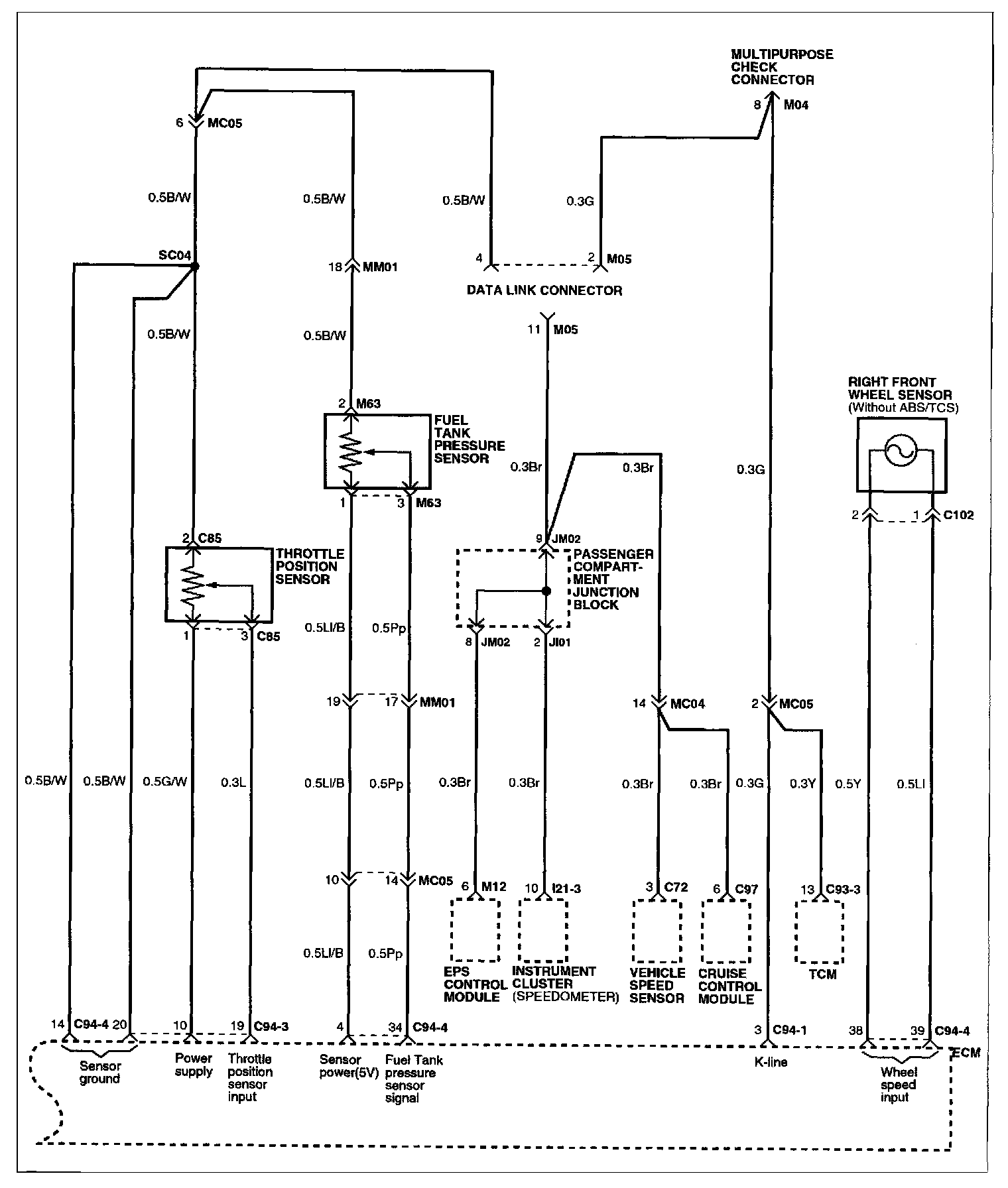

Image SD-102 - MFI Control System (V6) (1):

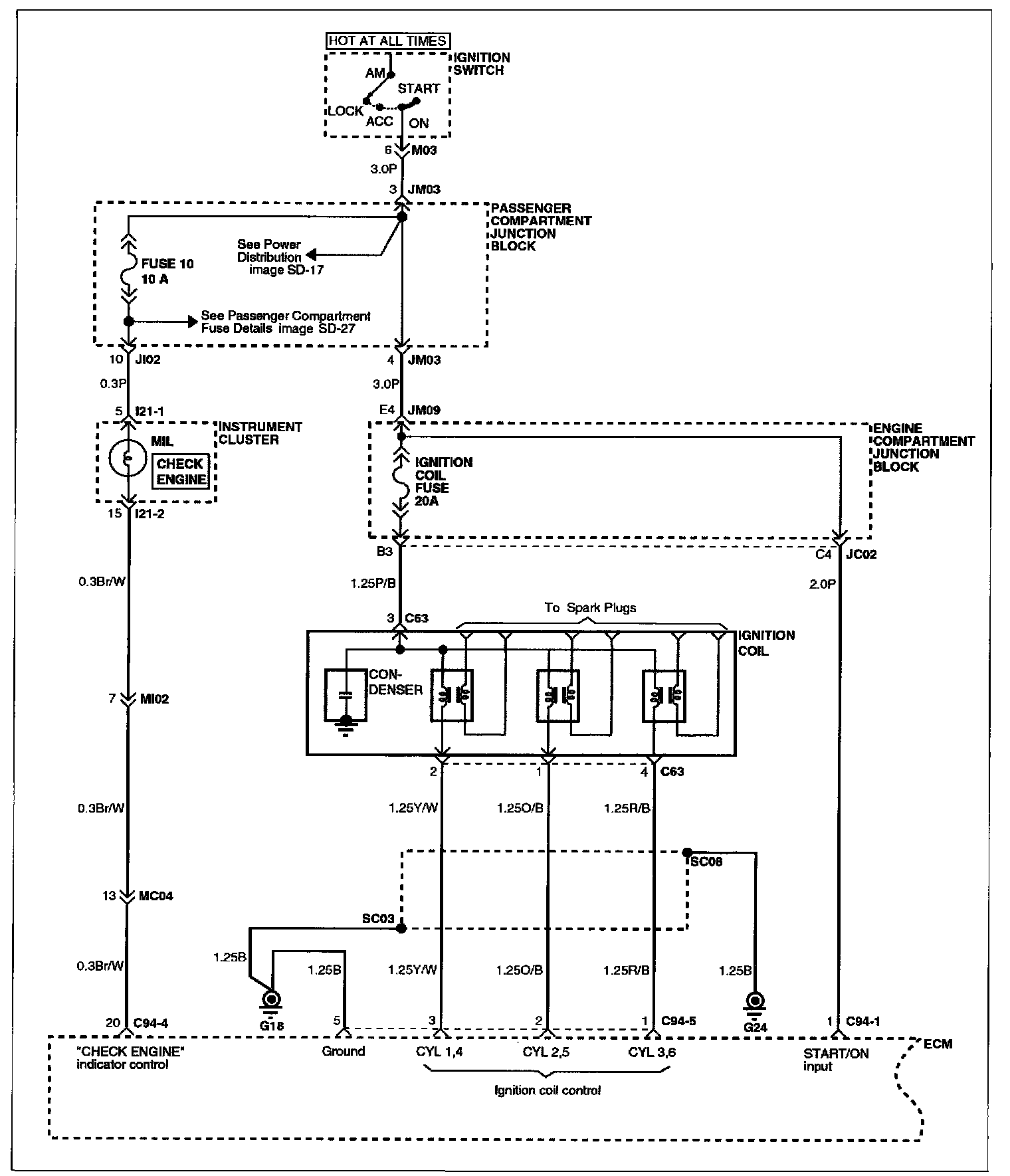

Image SD-103 - MFI Control System (V6) (2):

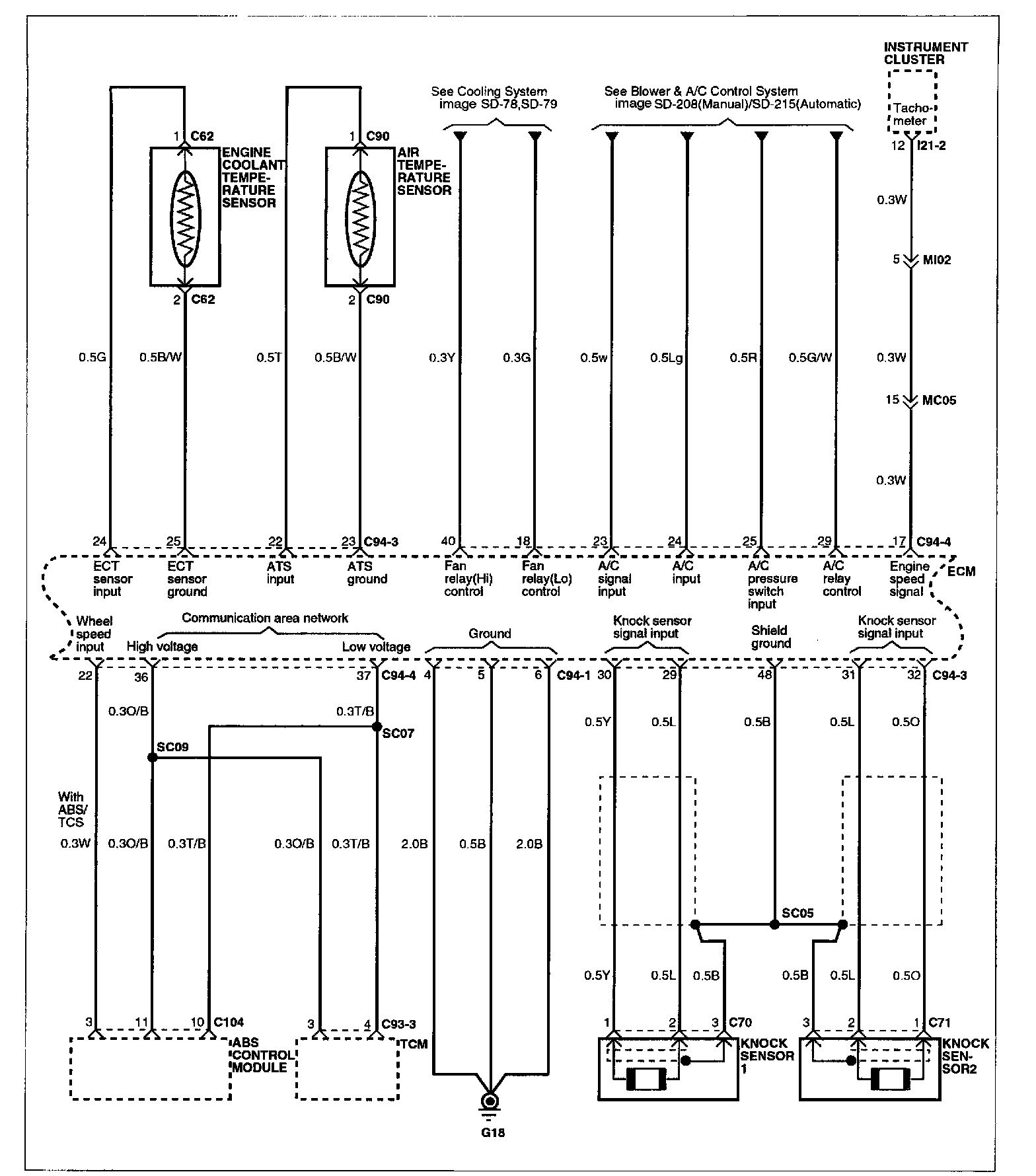

Image SD-104 - MFI Control System (V6) (3):

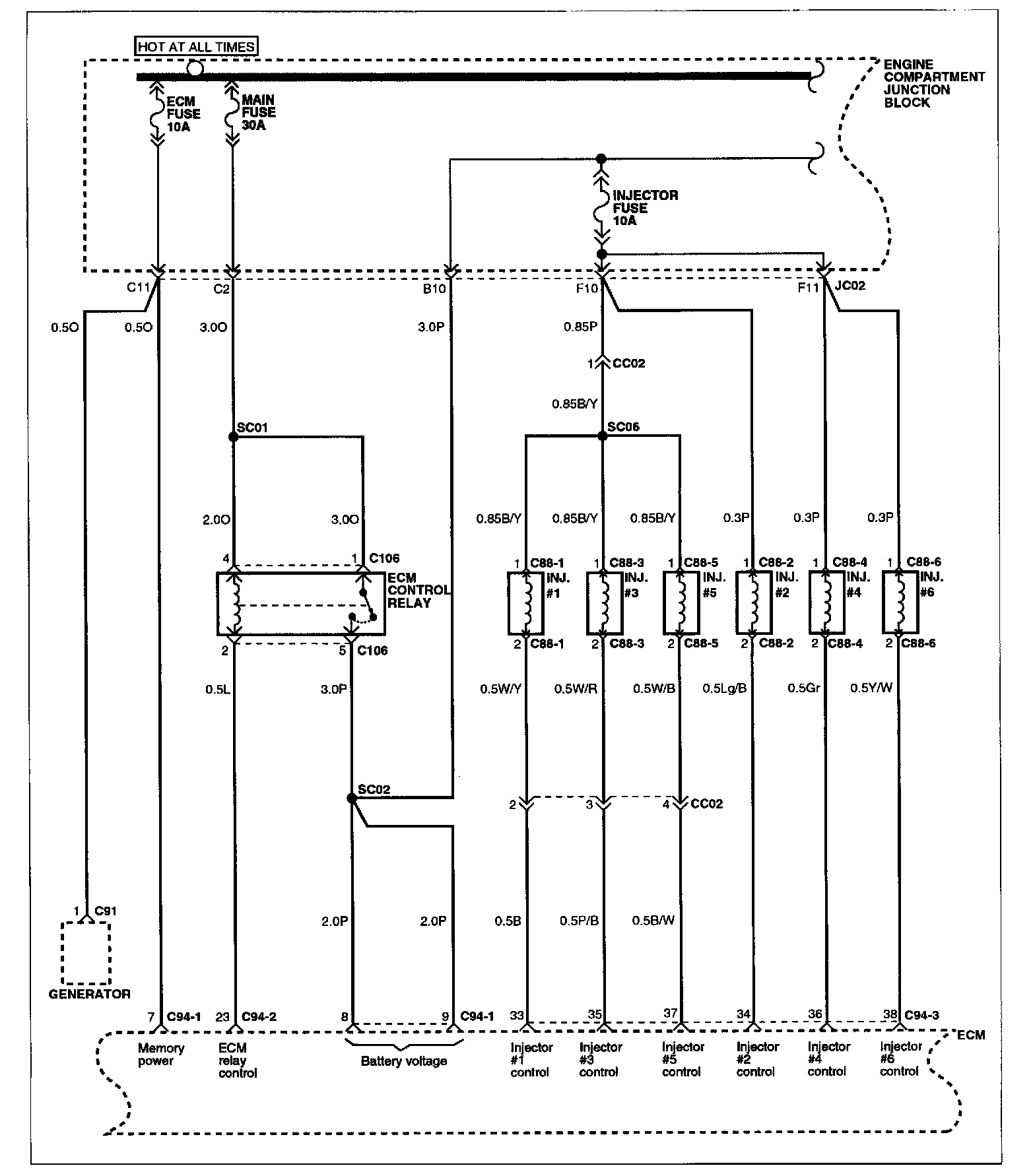

Image SD-105 - MFI Control System (V6) (4):

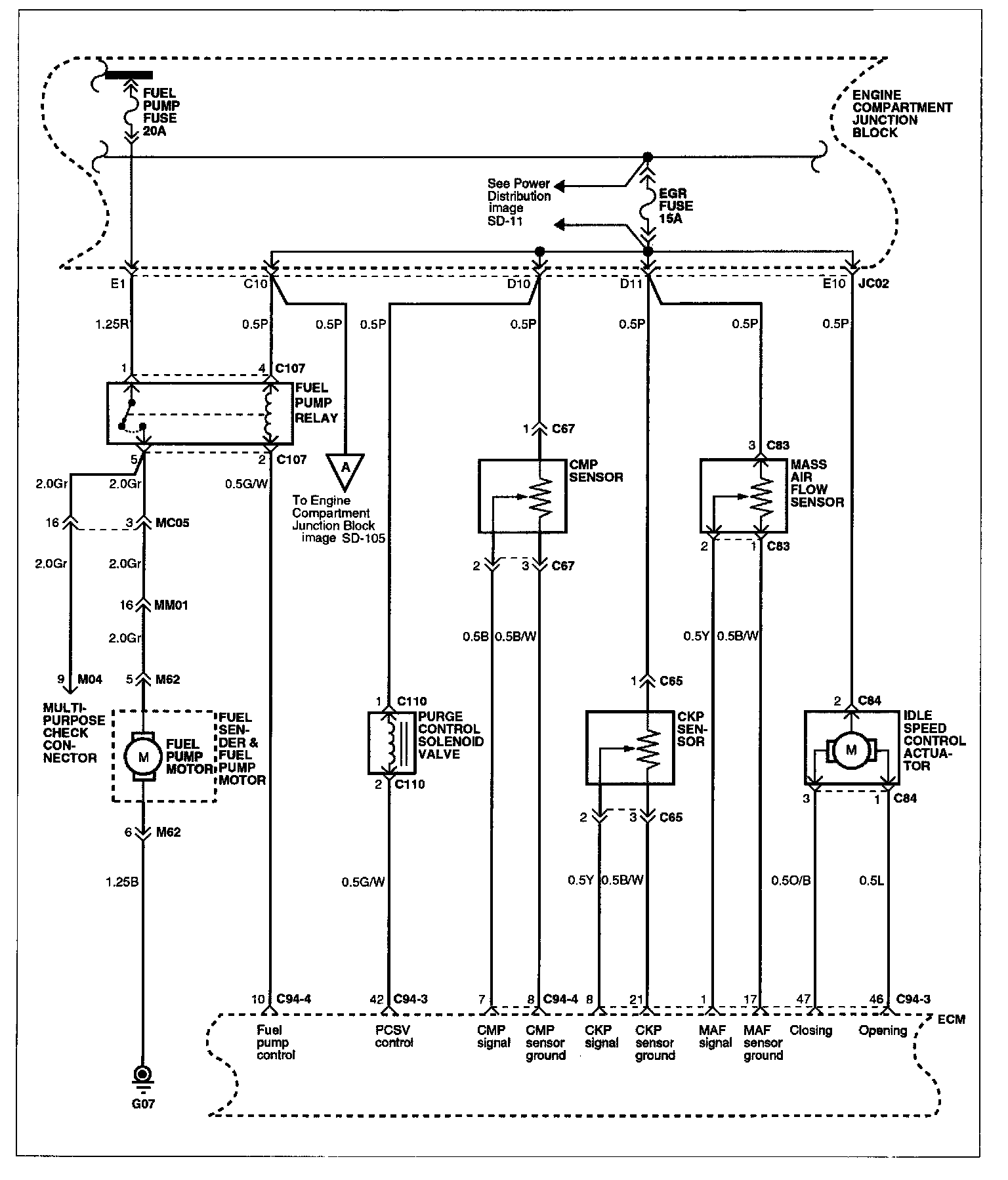

Image SD-106 - MFI Control System (V6) (5):

Image SD-107 - MFI Control System (V6) (6):
