Electrical Diagrams

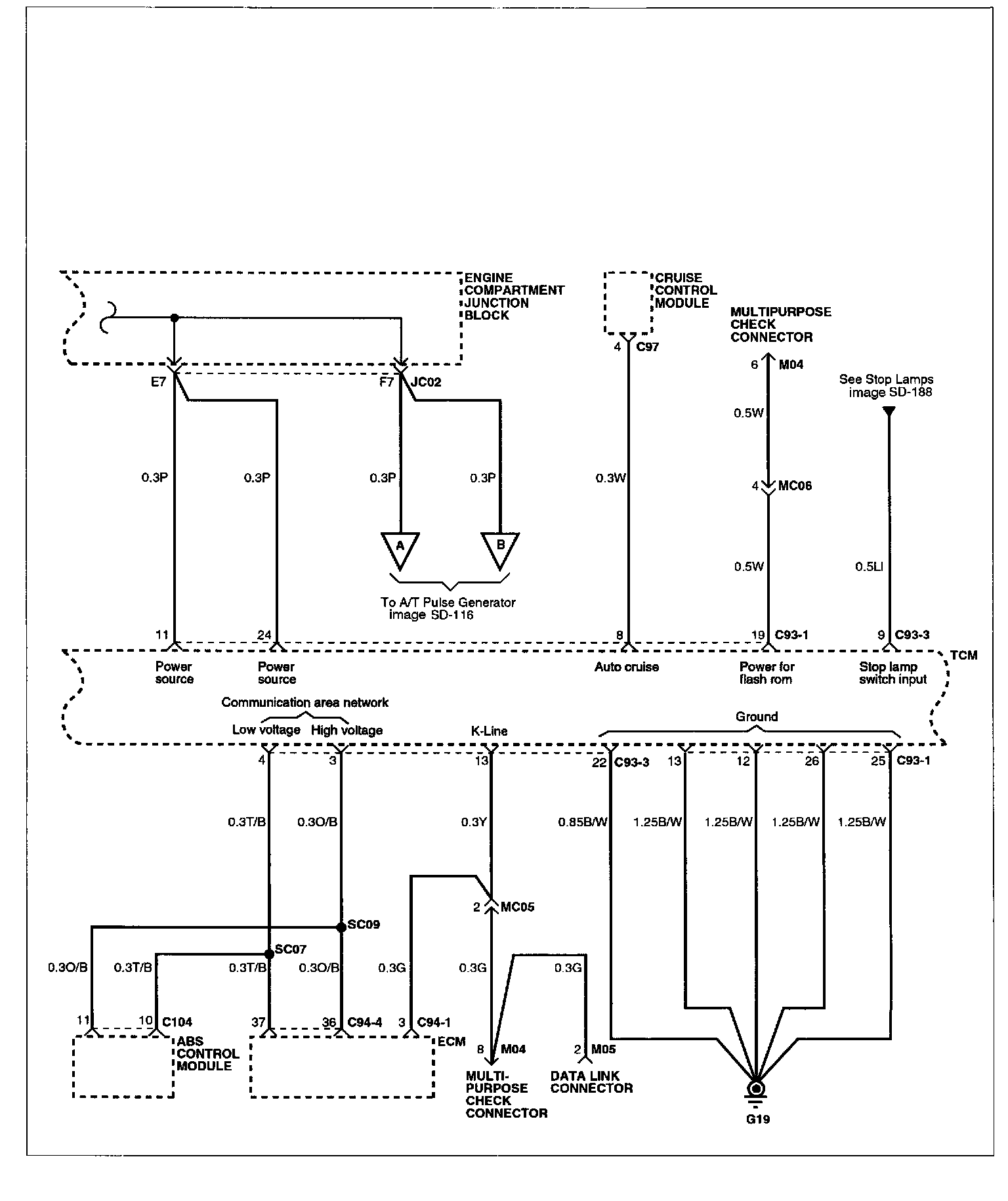

Image SD-114 - Automatic Transaxle Control System (V6) (1):

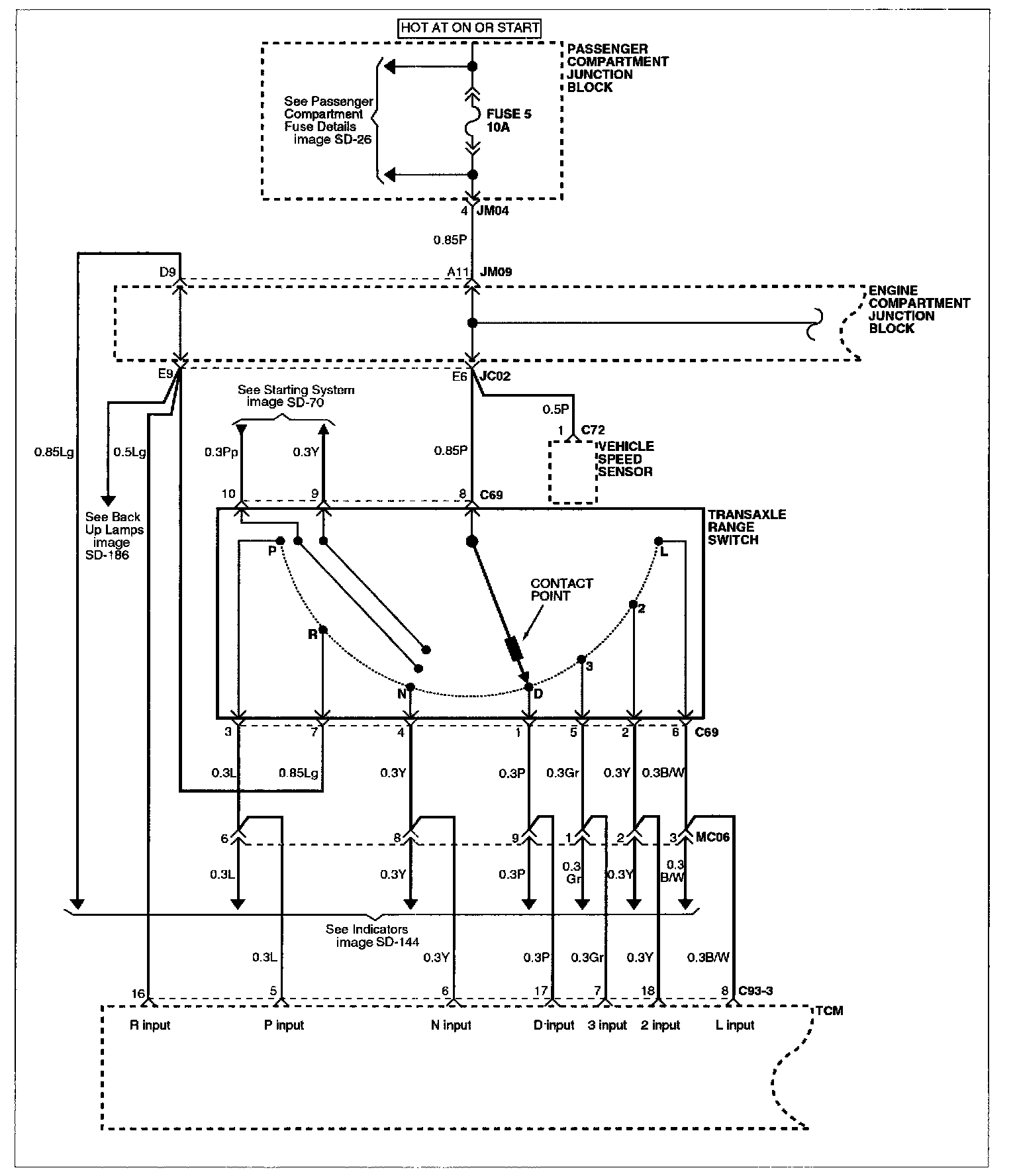

Image SD-115 - Automatic Transaxle Control System (V6) (2):

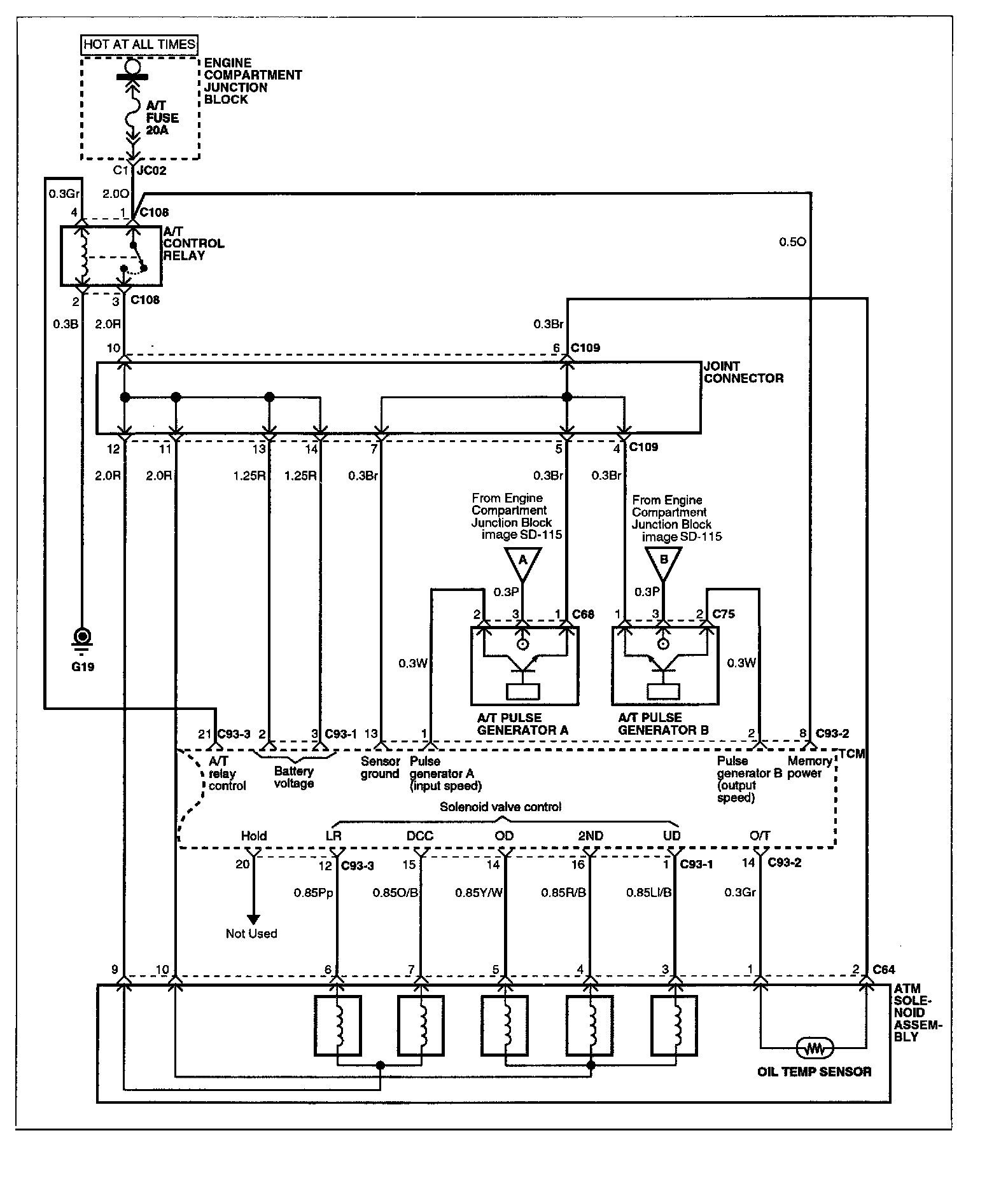

Image SD-116 - Automatic Transaxle Control System (V6) (3):

�IImage SD-117-1 - Automatic Transaxle Control System (V6):
