Home >> Hyundai >> 2001 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cruise Control

Cruise Control

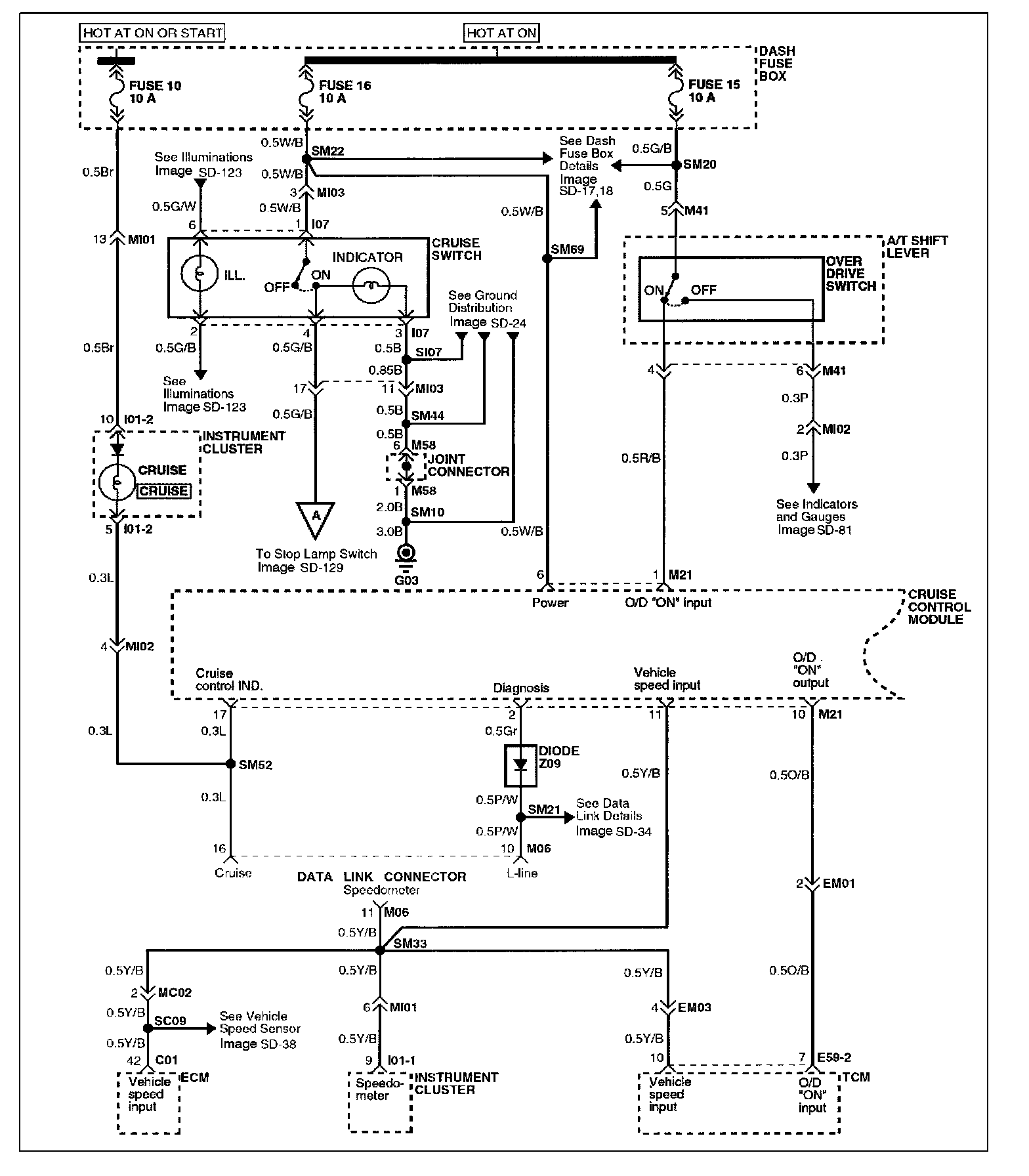

Image SD-128 -- Cruise Control System (1):



Image SD-129 -- Cruise Control System (2):
