Instrument Cluster / Carrier: Service and Repair

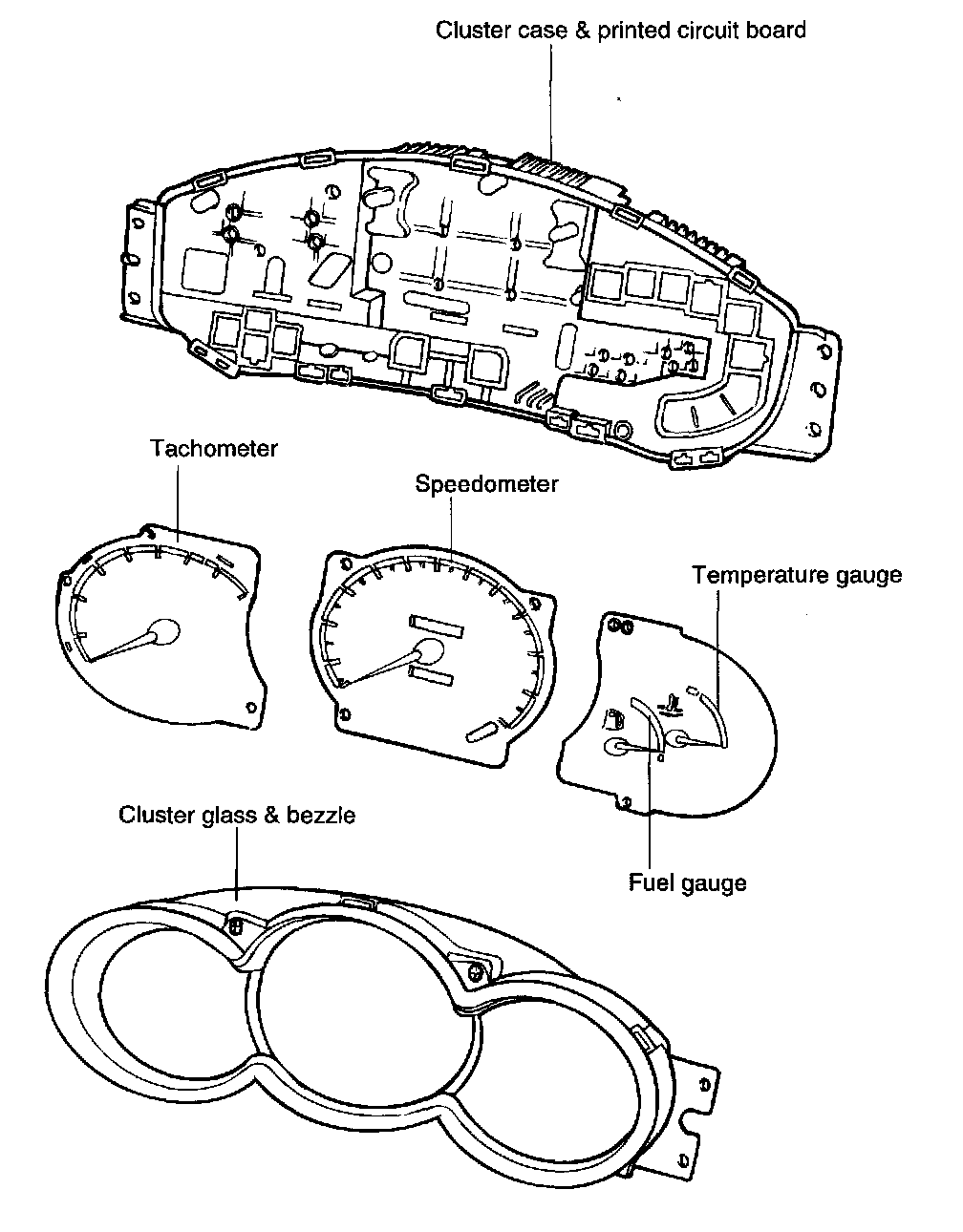

Instrument Cluster:

1. Disconnect the negative battery terminal.
2. Remove the mounting screws (5EA) and cluster facia panel.




3. Remove the cluster mounting screws (4EA) and instrument cluster.
4. Installation is the reverse of removal.
