Radio, Stereo, and Compact Disc: Service and Repair

Audio Unit:

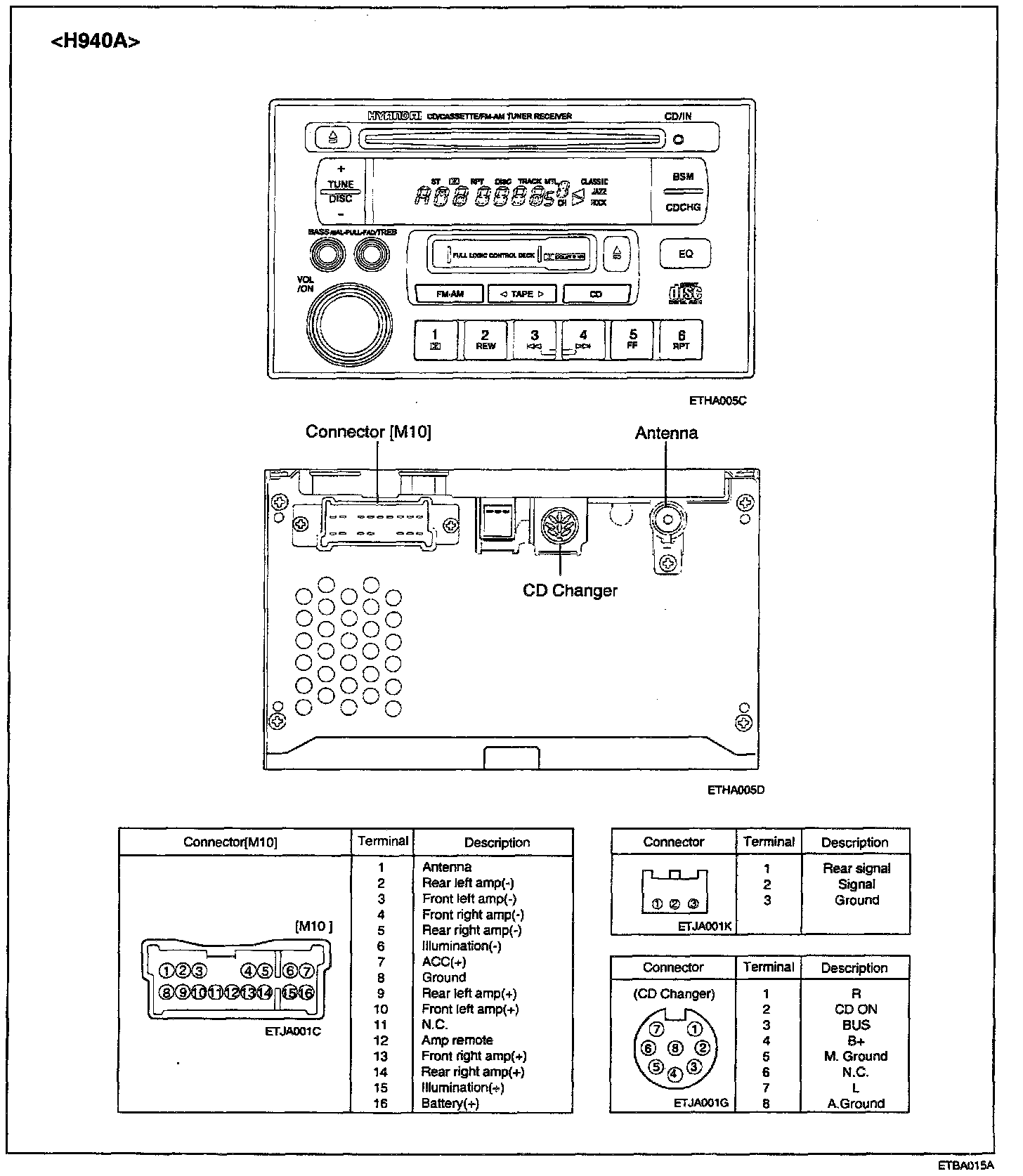

COMPONENTS

REMOVAL AND INSTALLATION
1. Disconnect the negative (-) battery terminal.

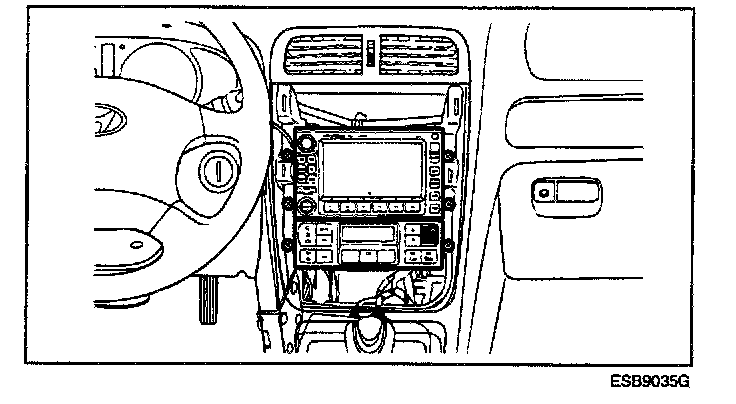

2. Remove the center facia panel.




3. Unscrew the audio mounting screws and remove the audio assembly from the mounting bracket.
4. Installation is the reverse of removal.
