C Connector (Control Harness)
C Connector (Control Harness)

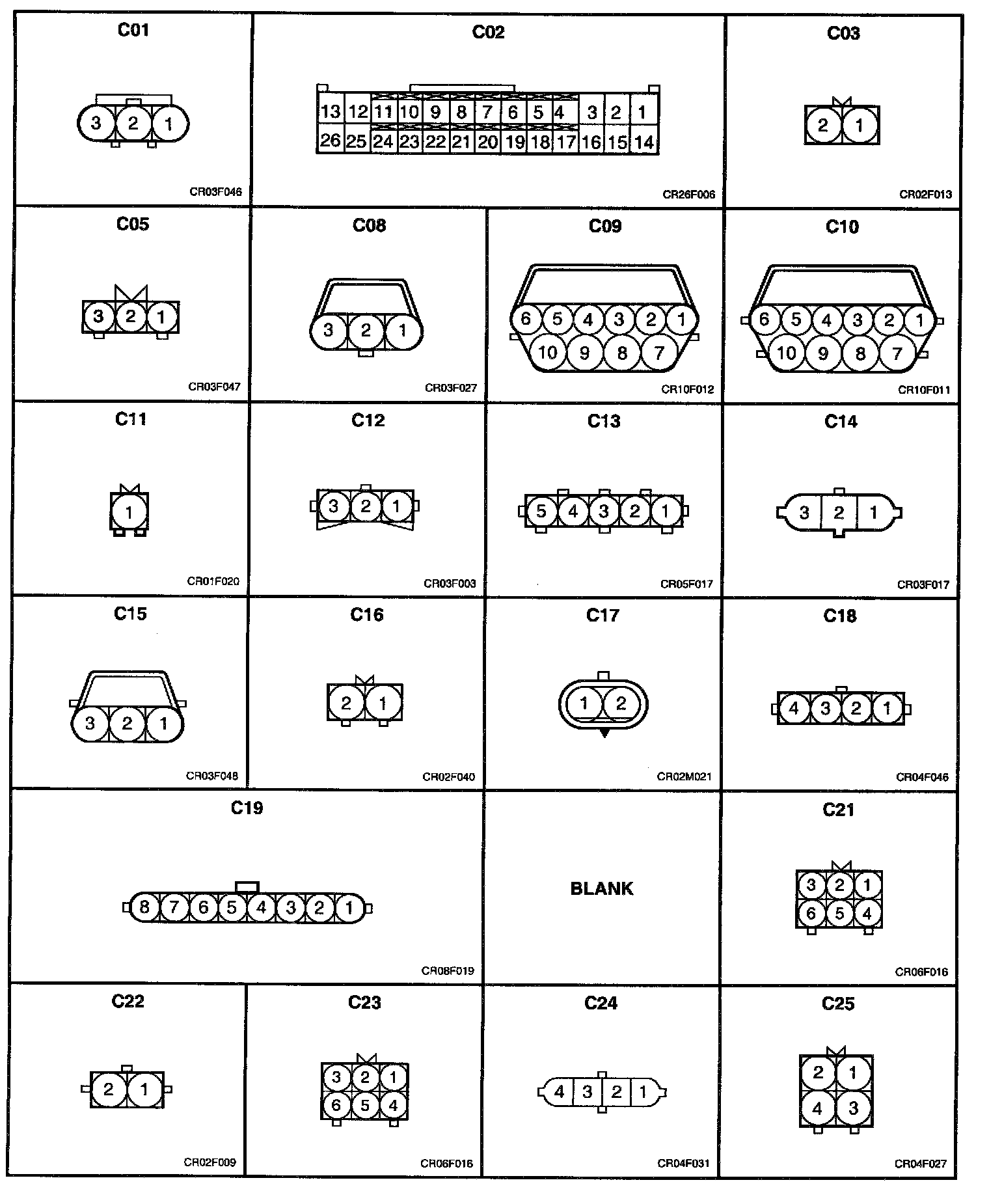

C01 - C25:
C26 - C42:

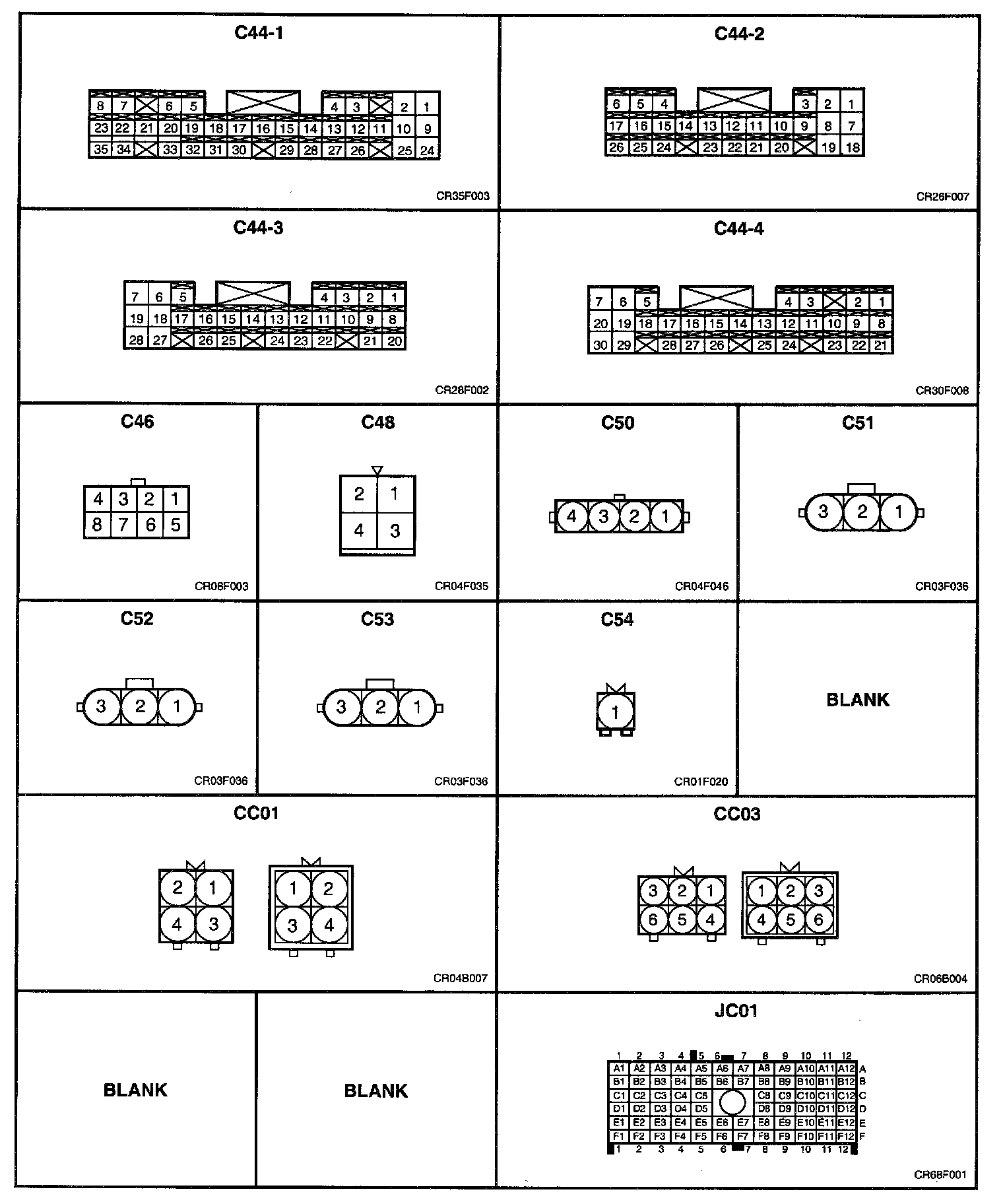

C44-1 - C54, CC01 - JC01:
