Ambient Light Sensor
Ambient Light Sensor

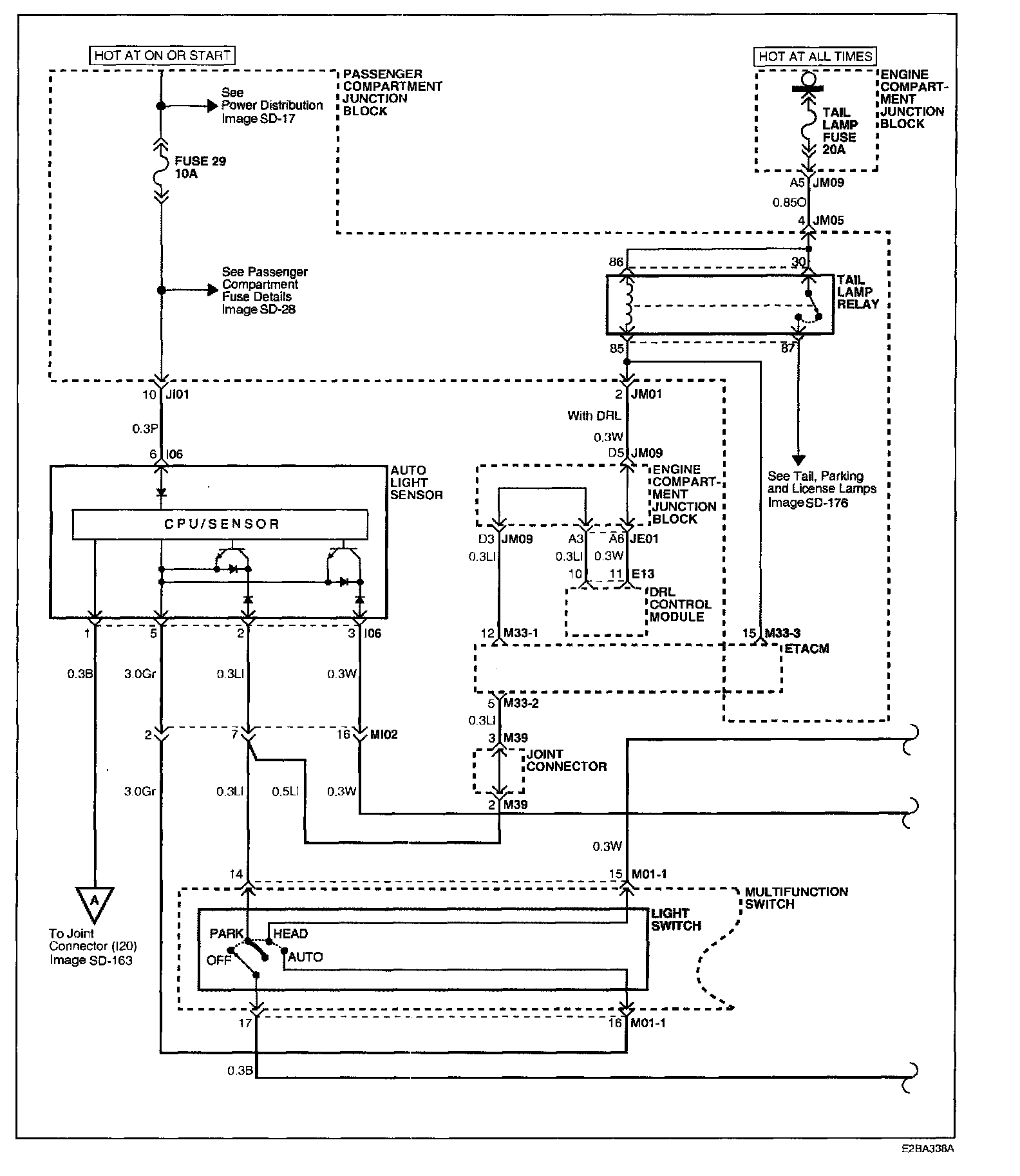

Image SD-162 - Auto Lights (1):

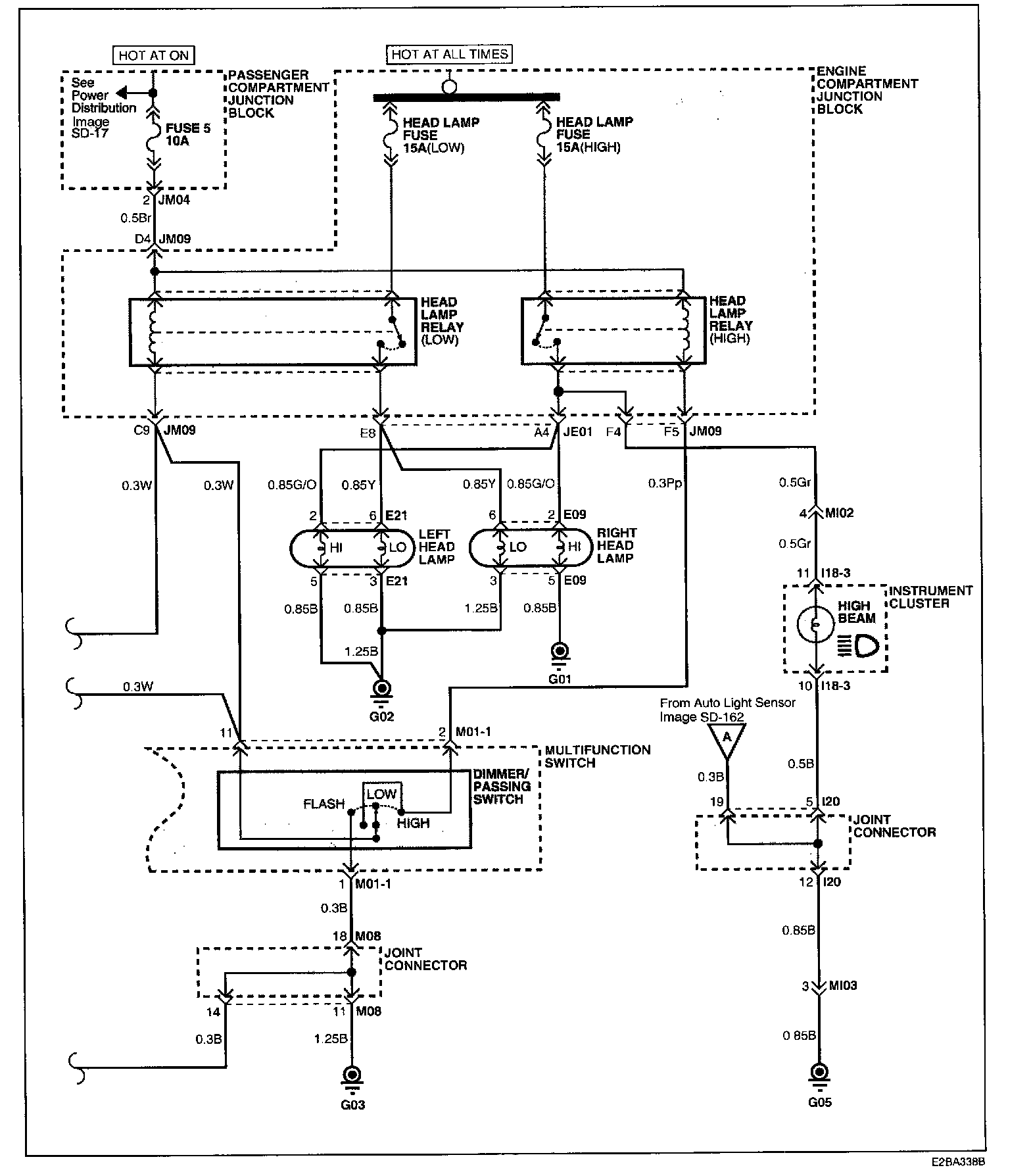

Image SD-163 - Auto Lights (2):
Circuit Diagram:
