Automatic Transmission/Transaxle
Automatic Transmission/Transaxle

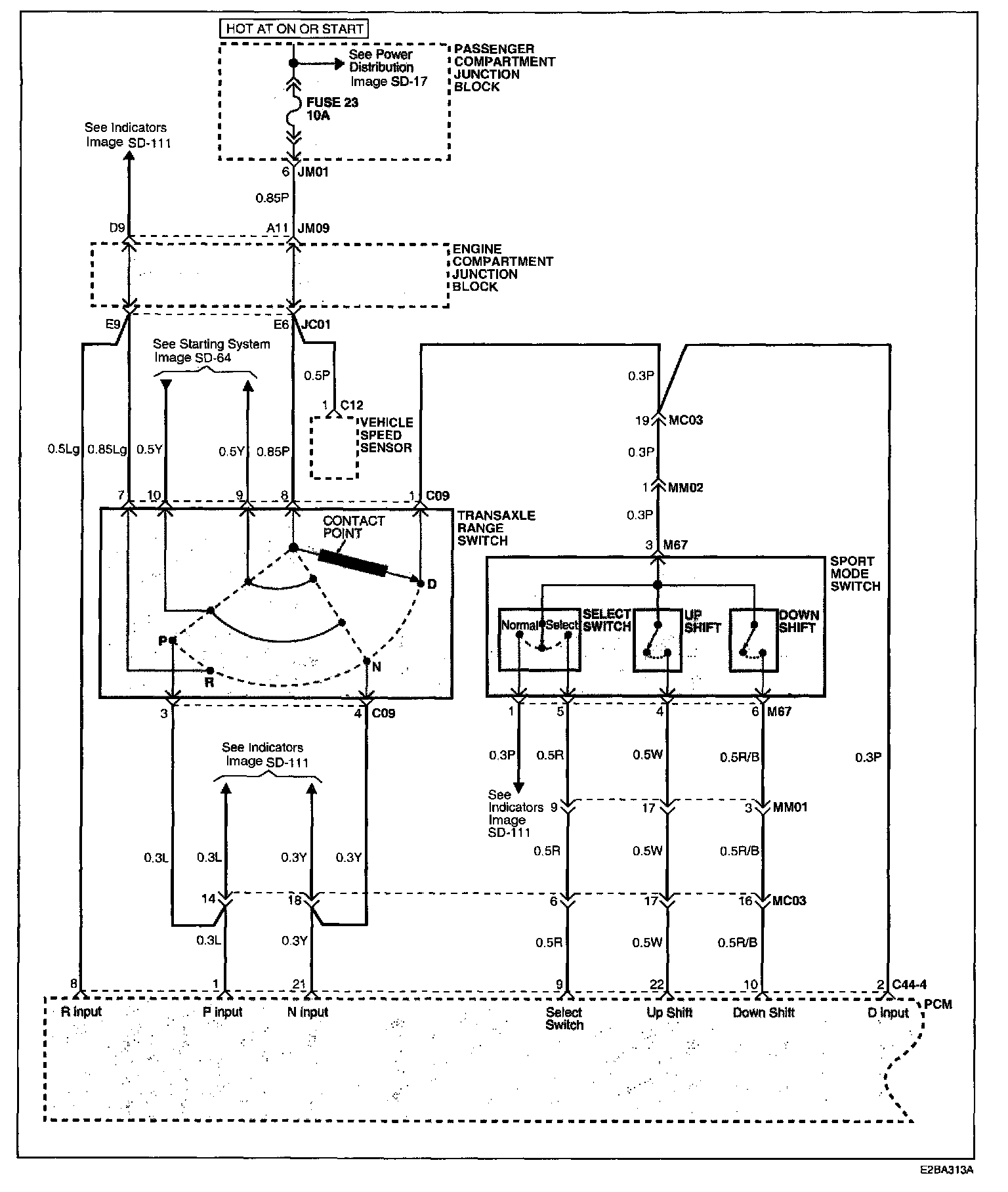

Image SD-86 - Automatic Transaxle Control System (1):

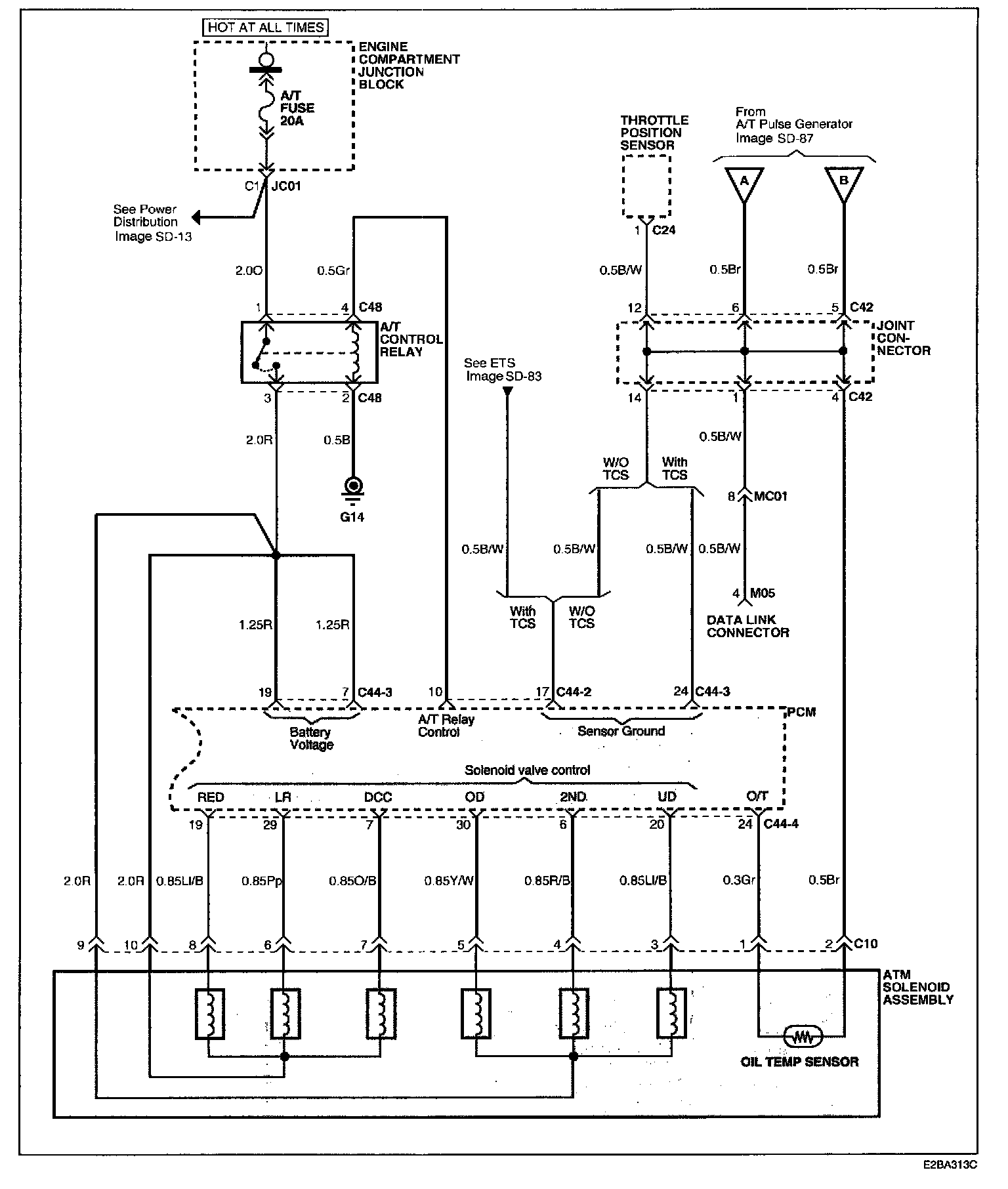

Image SD-87 - Automatic Transaxle Control System (2):
Image SD-88 - Automatic Transaxle Control System (3):
