Home >> Hyundai >> 2001 >> XG 300 V6-3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Backup Lamp

Backup Lamp

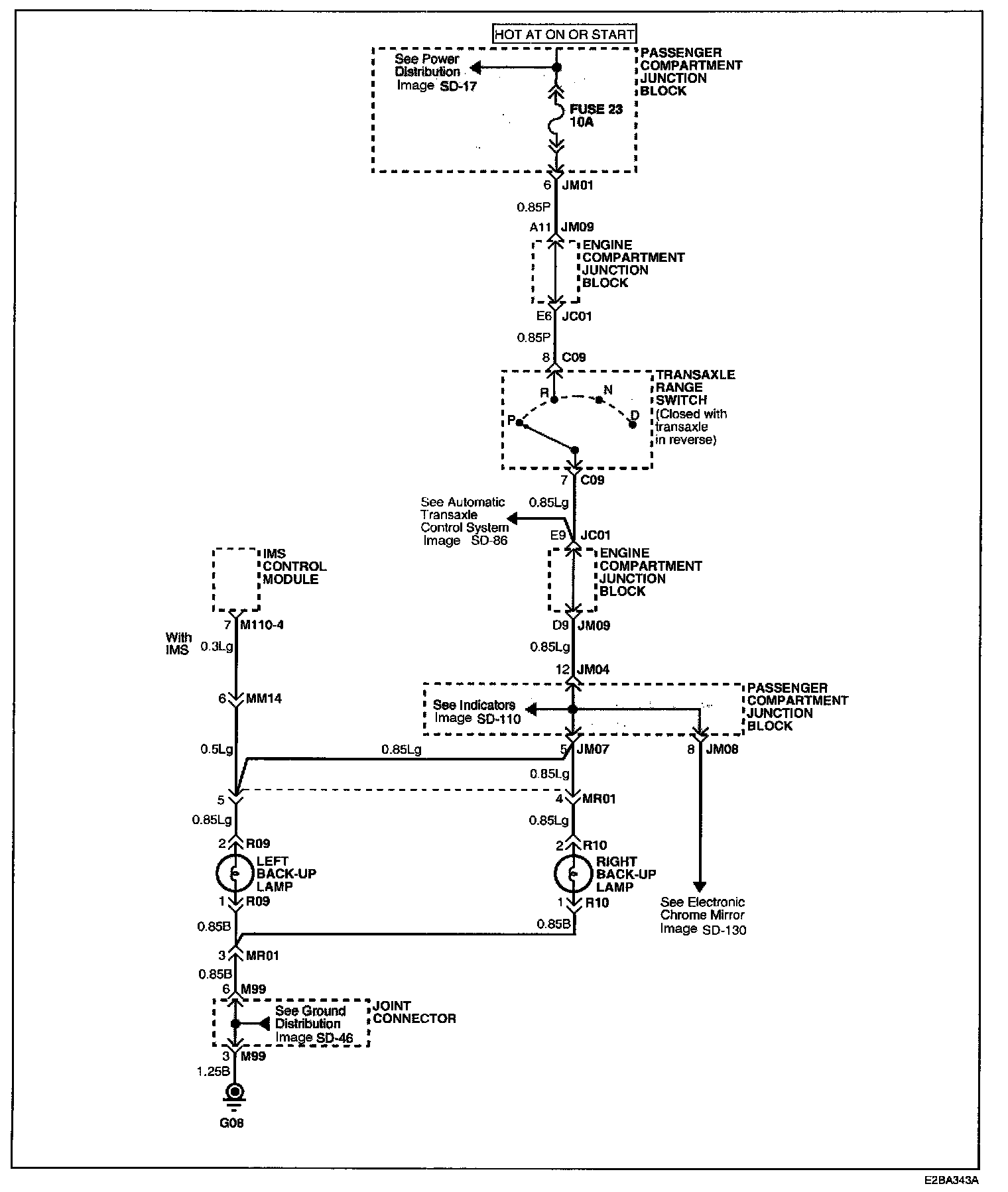

Image SD-180 - Back-up Lamps (1):
