Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
2001
>>
XG 300 V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Charging System
Charging System

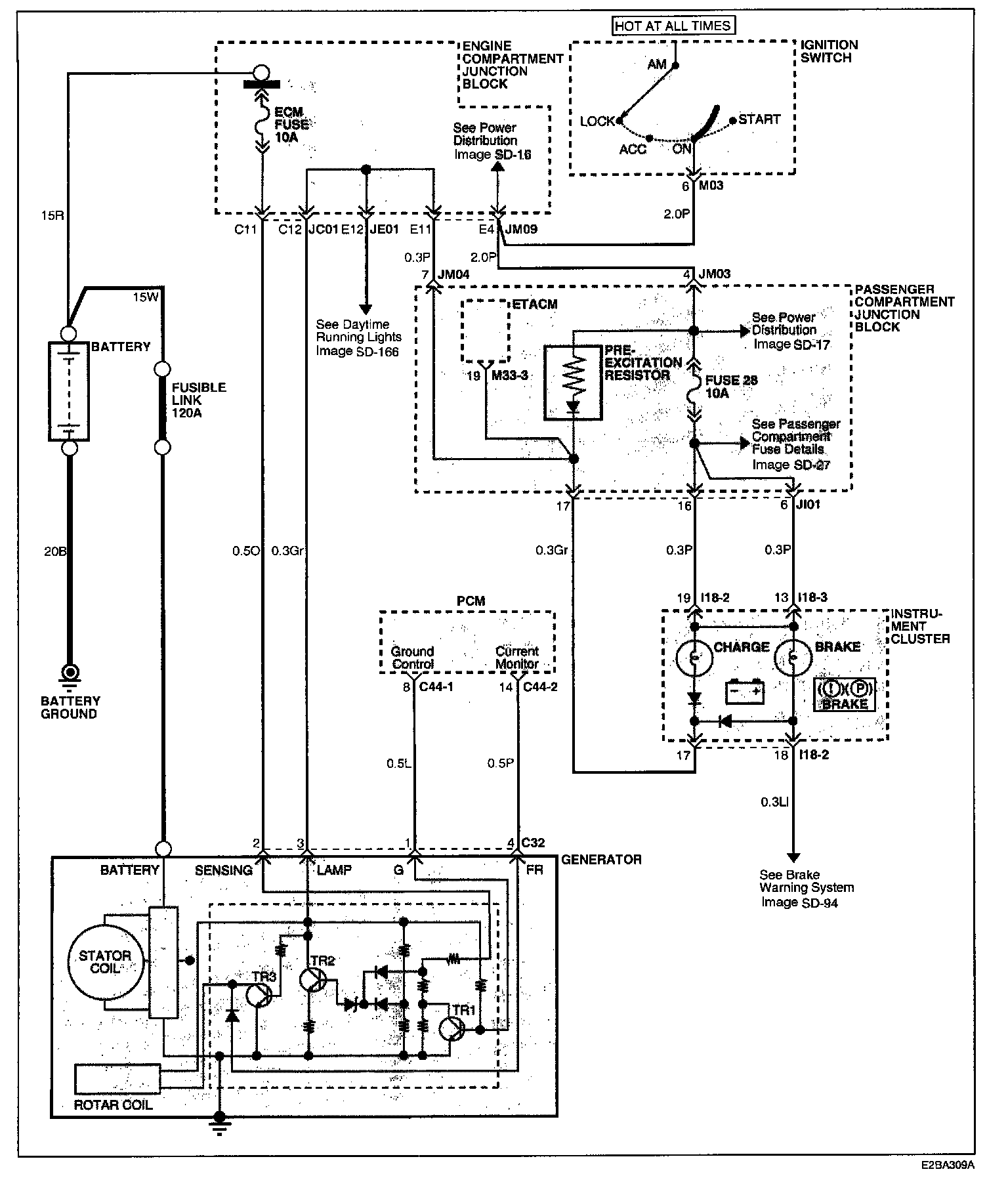

Image SD-66 - Charging System (1):
