Operation CHARM: Car repair manuals for everyone.
Home >> Hyundai >> 2001 >> XG 300 V6-3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Fog/Driving Lamp

Fog/Driving Lamp

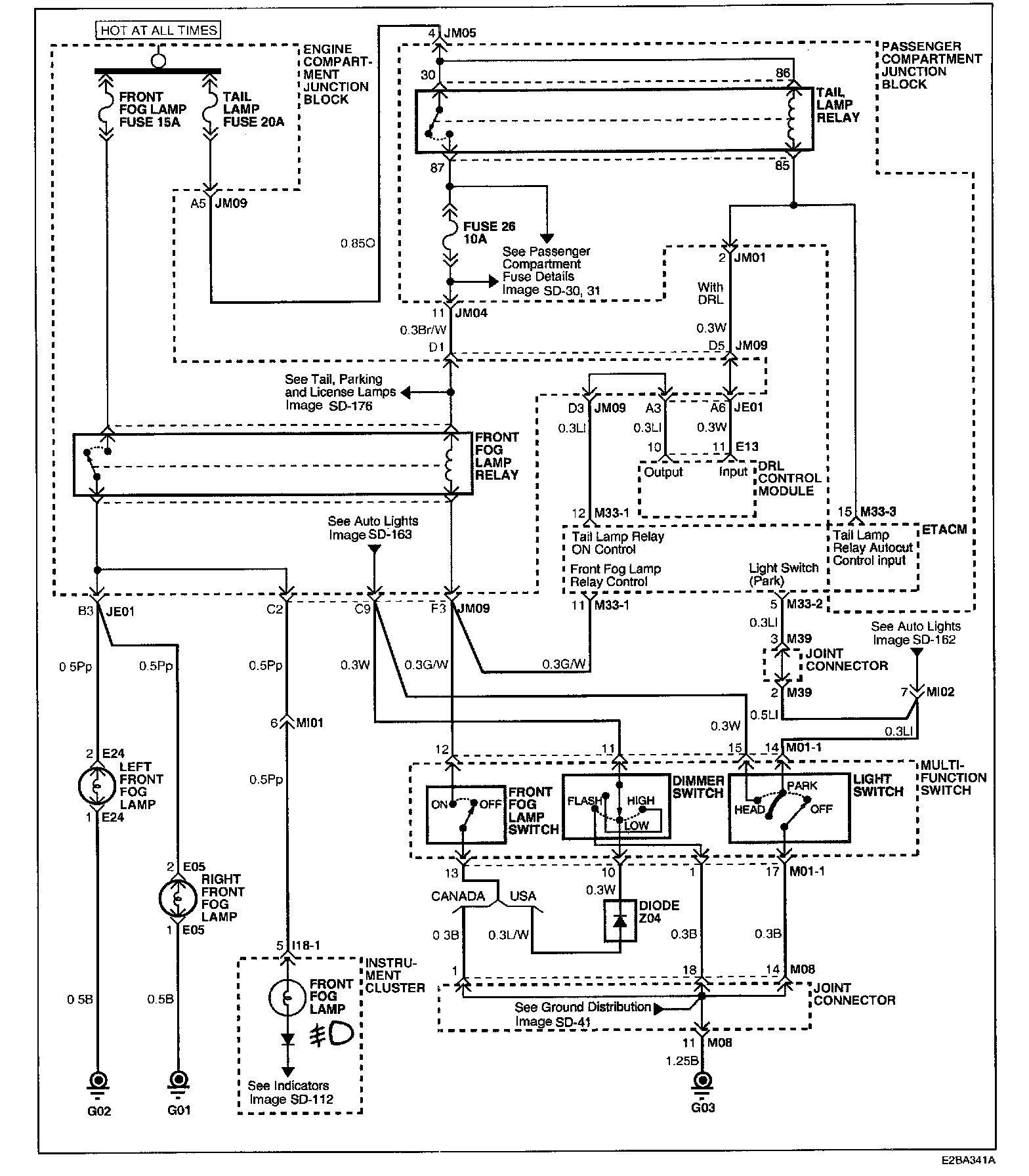

Image SD-174 - Front Fog Lamps (1):
