Home >> Hyundai >> 2001 >> XG 300 V6-3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Headlamp

Headlamp

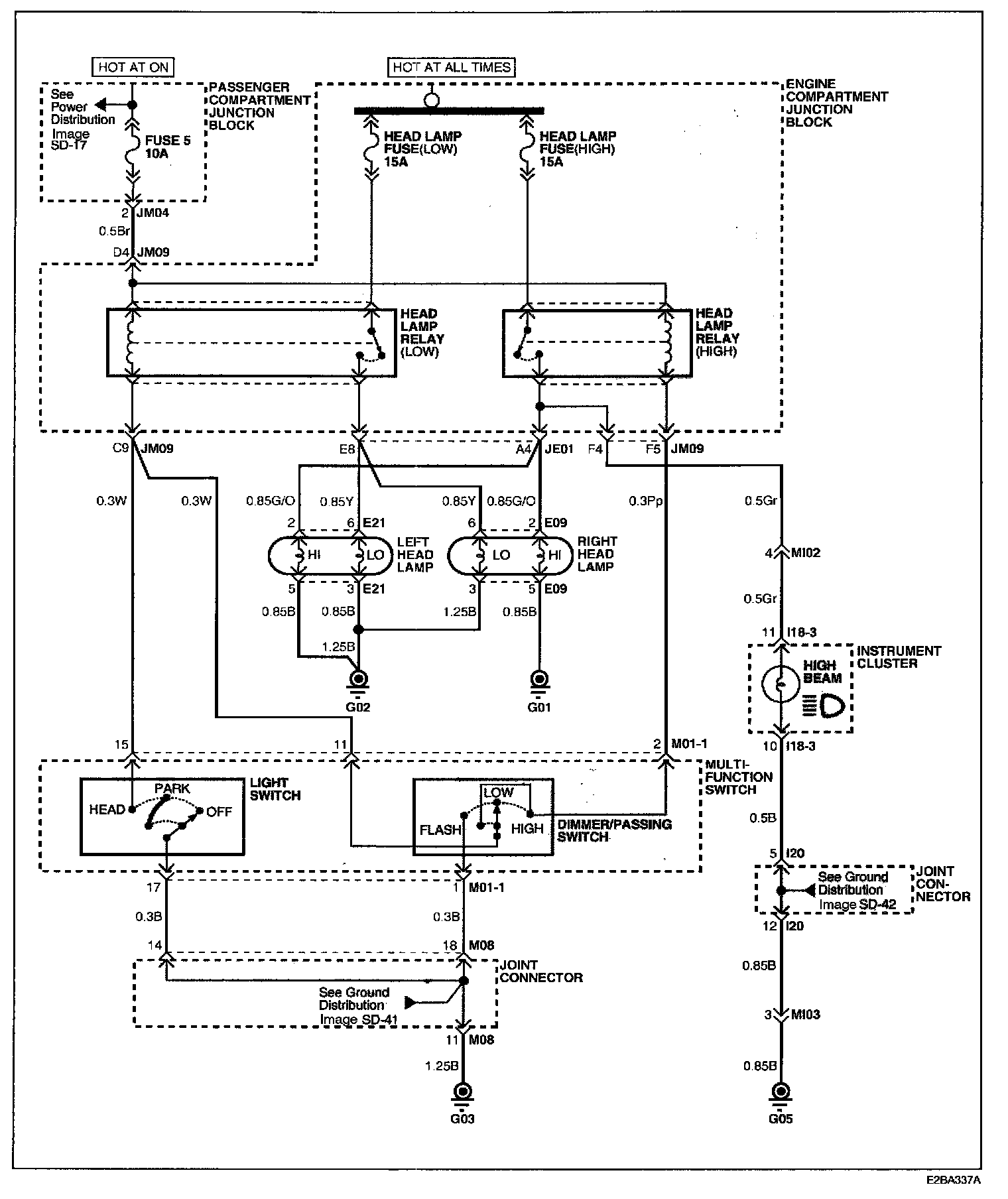

Image SD-160 - Head Lamps (1):
