Home >> Hyundai >> 2001 >> XG 300 V6-3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Horn

Horn

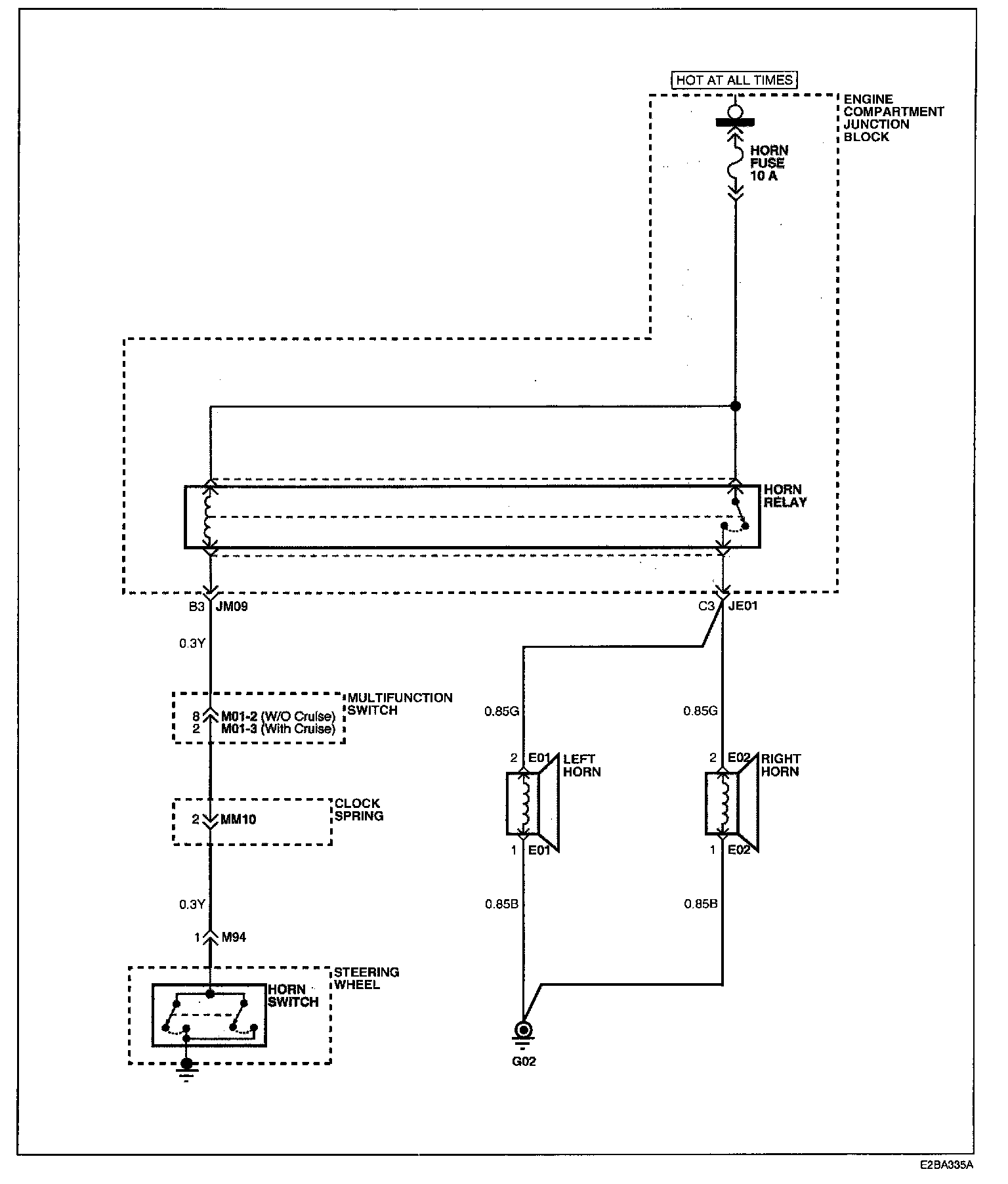

Image SD-154 - Horns (1):
