Keyless Entry
Keyless Entry

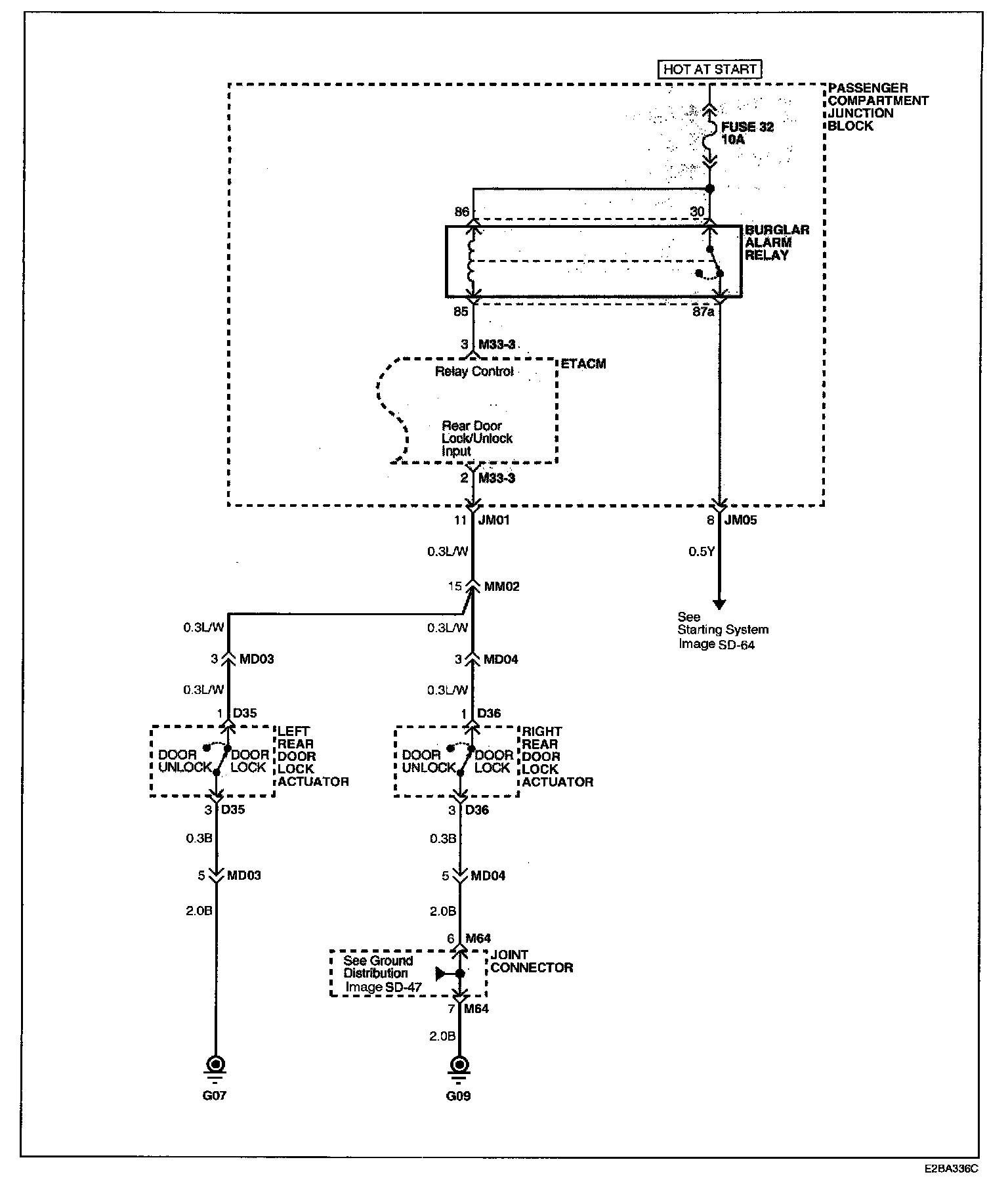

Image SD-156 - Keyless Entry & Burglar Alarm System (1):
Image SD-157 - Keyless Entry & Burglar Alarm System (2):
Image SD-158 - Keyless Entry & Burglar Alarm System (3):
