Memory Positioning Systems
Memory Positioning Systems

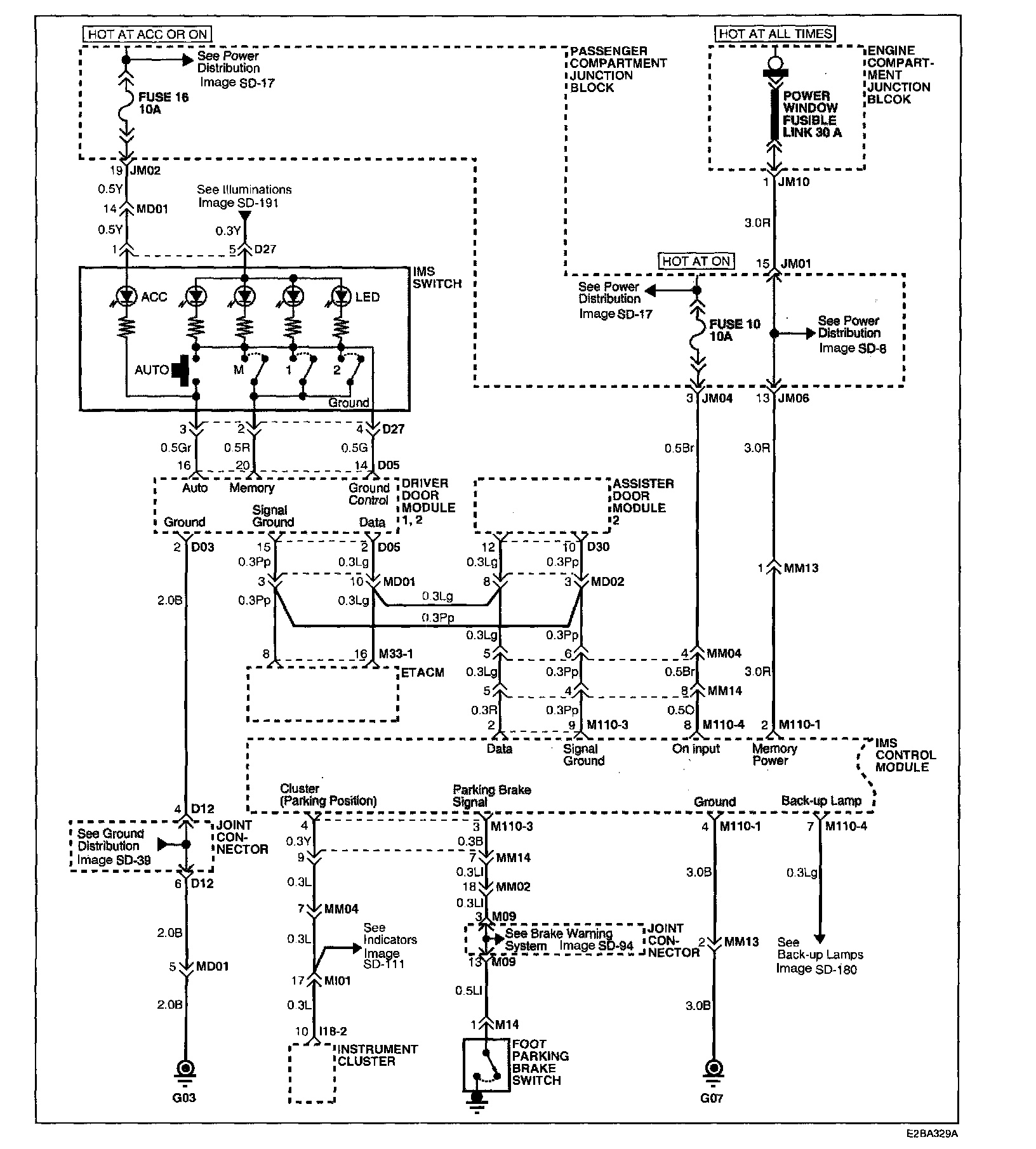

Image SD-136 - Integrated Memory System (1):

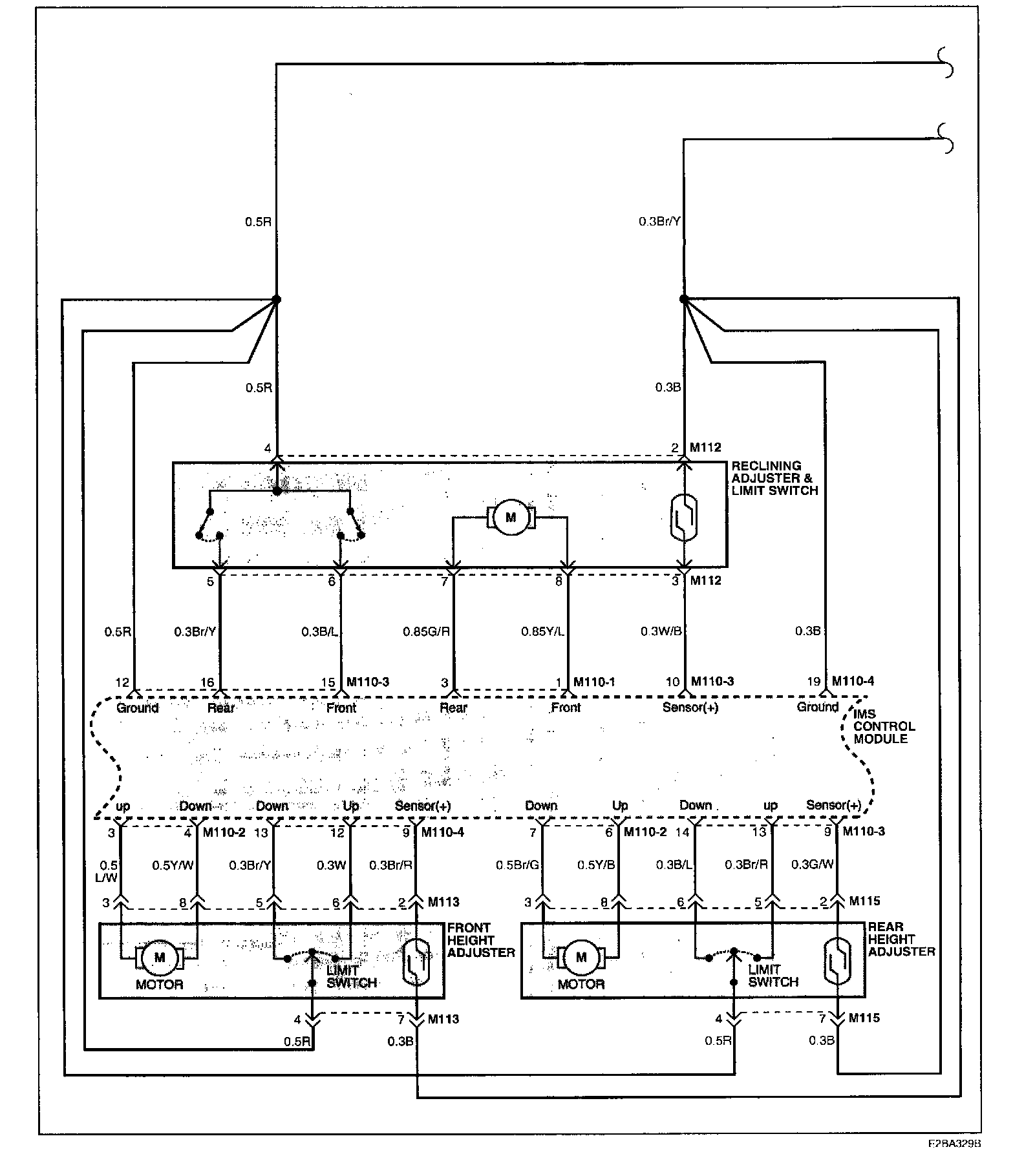

Image SD-137 - Integrated Memory System (2):

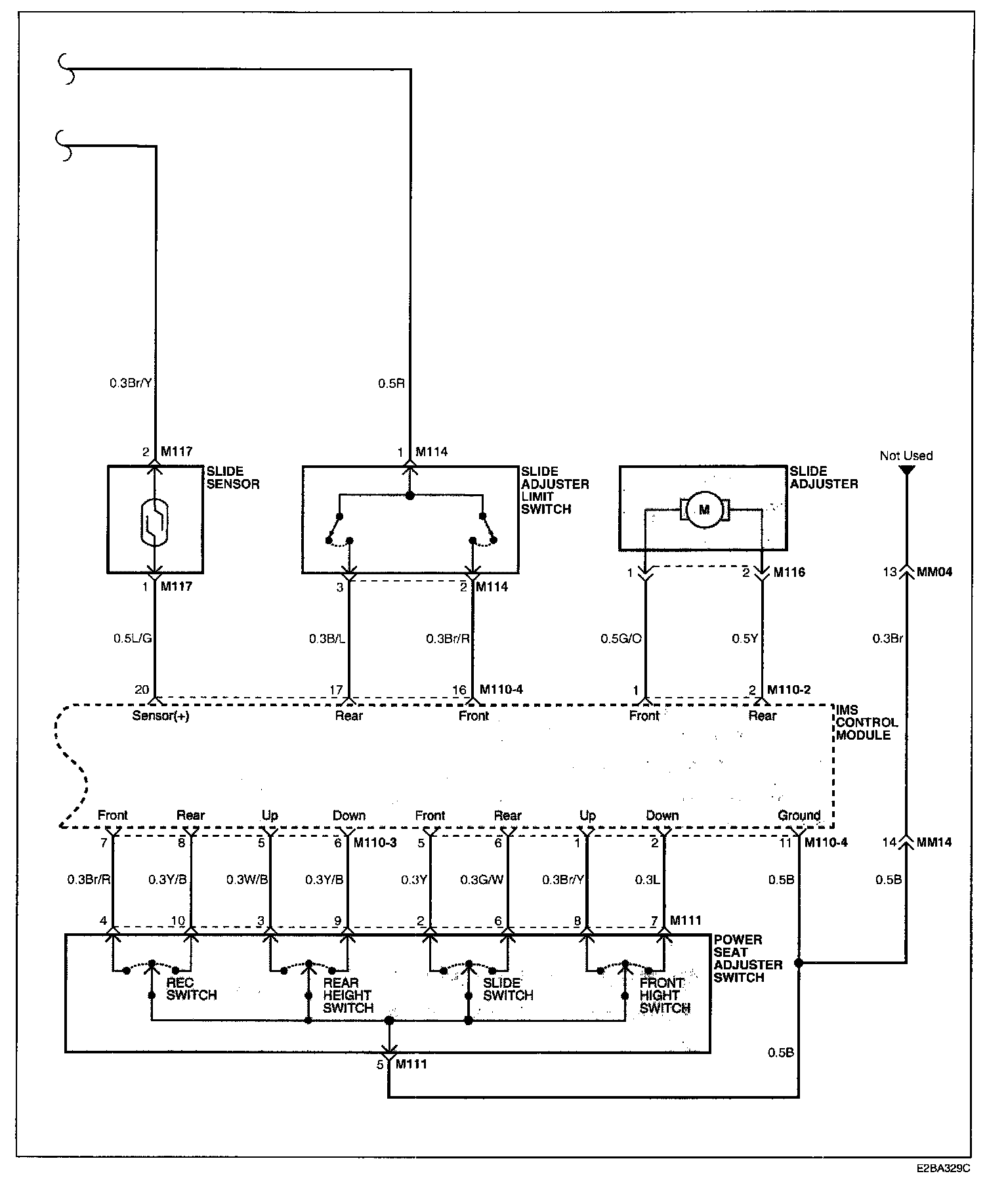

Image SD-138 - Integrated Memory System (3):
Circuit Diagram:
