Home
>>
Hyundai
>>
2001
>>
XG 300 V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
Radio, Stereo, and Compact Disc

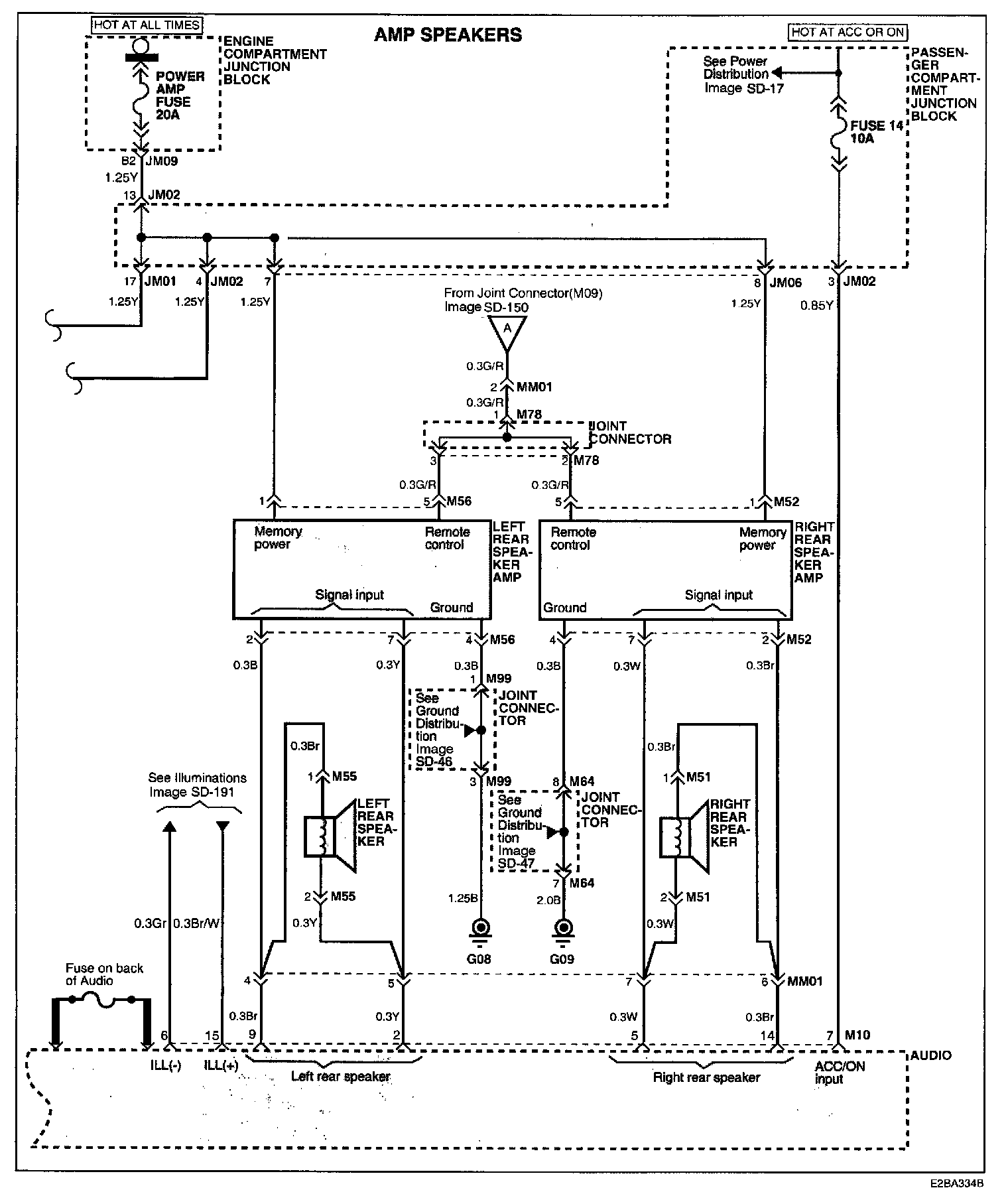

Image SD-150 - Audio System (1):

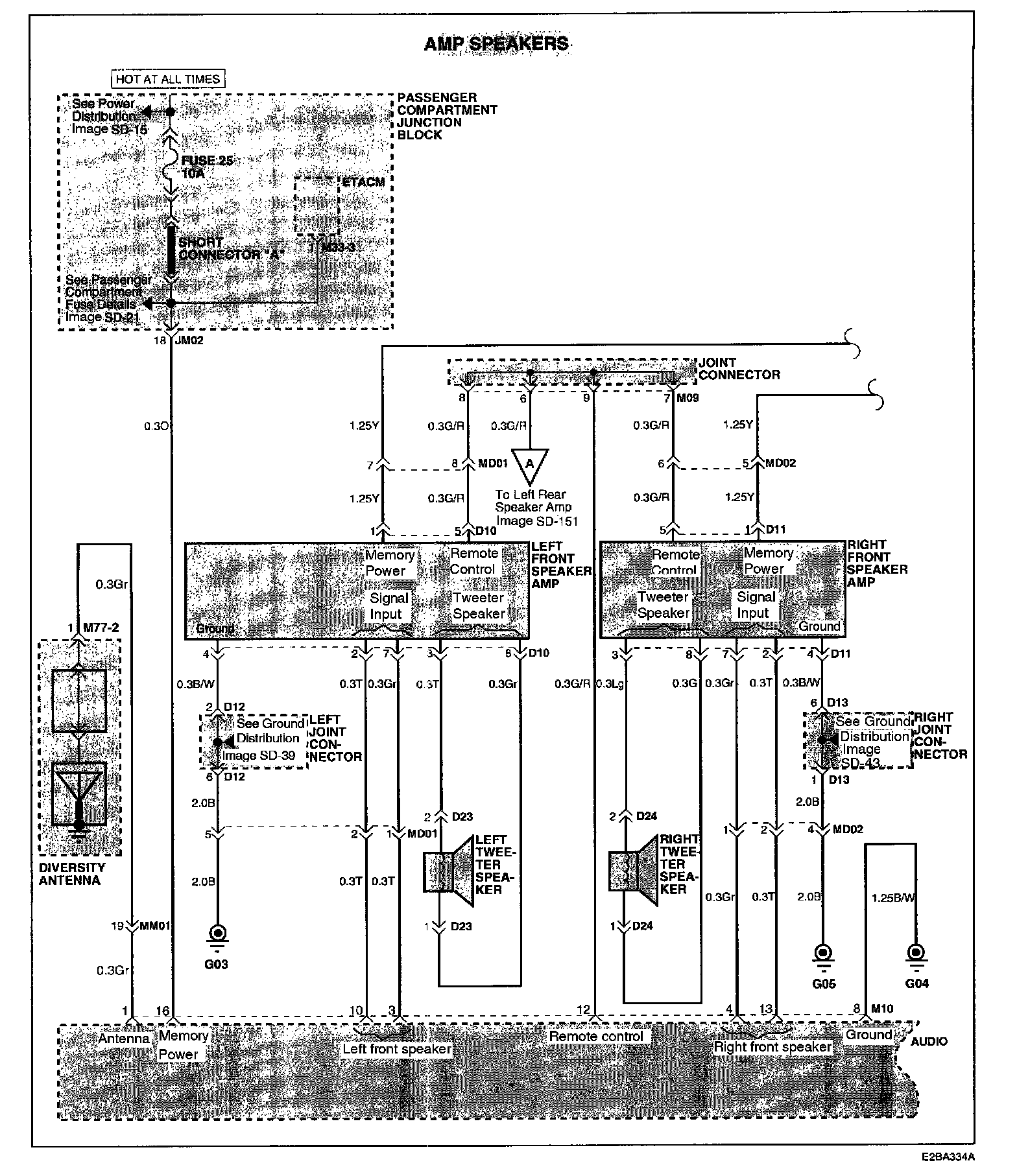

Image SD-151 - Audio System (2):

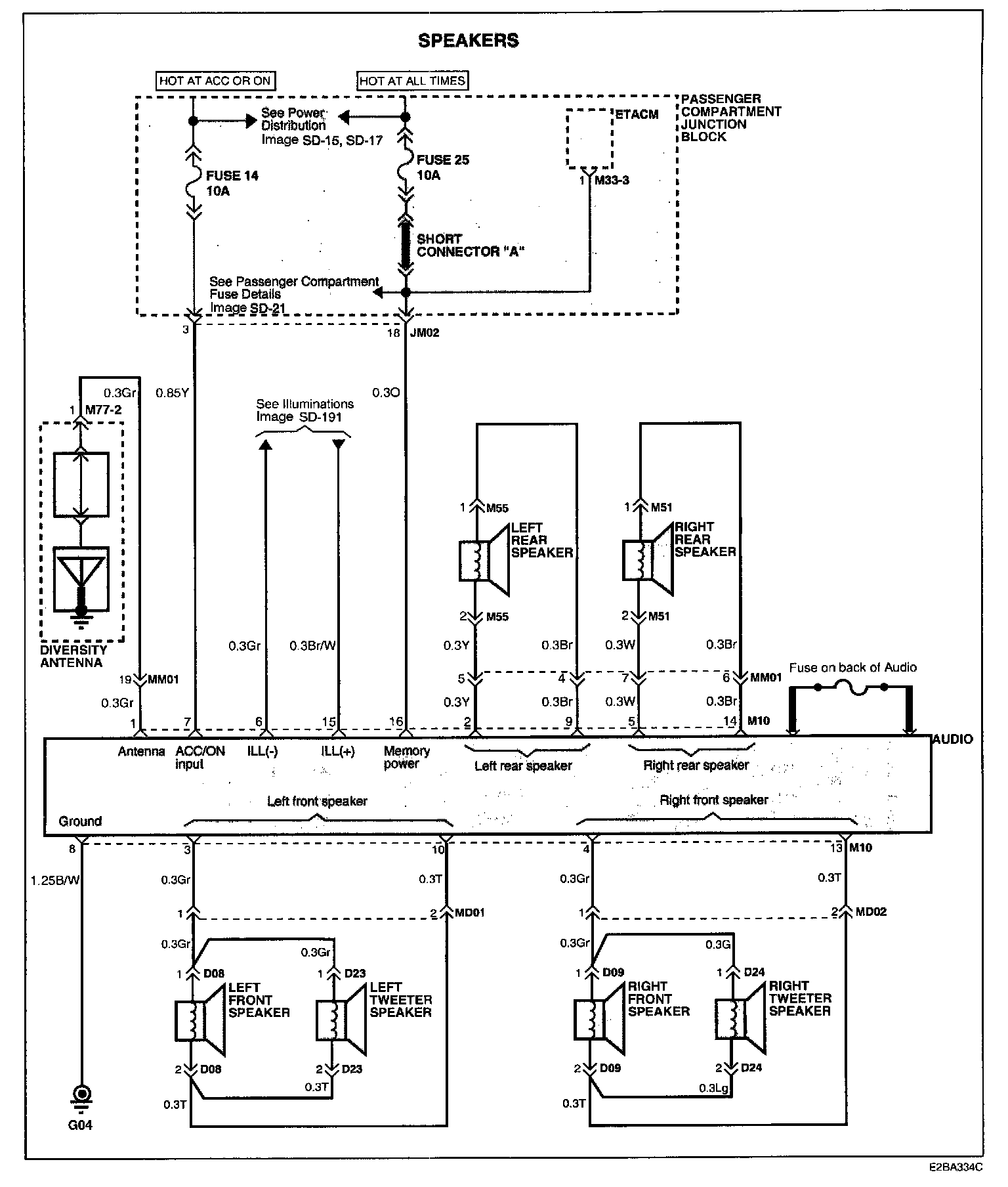

Image SD-152 - Audio System (3):
