Seat Belt Systems

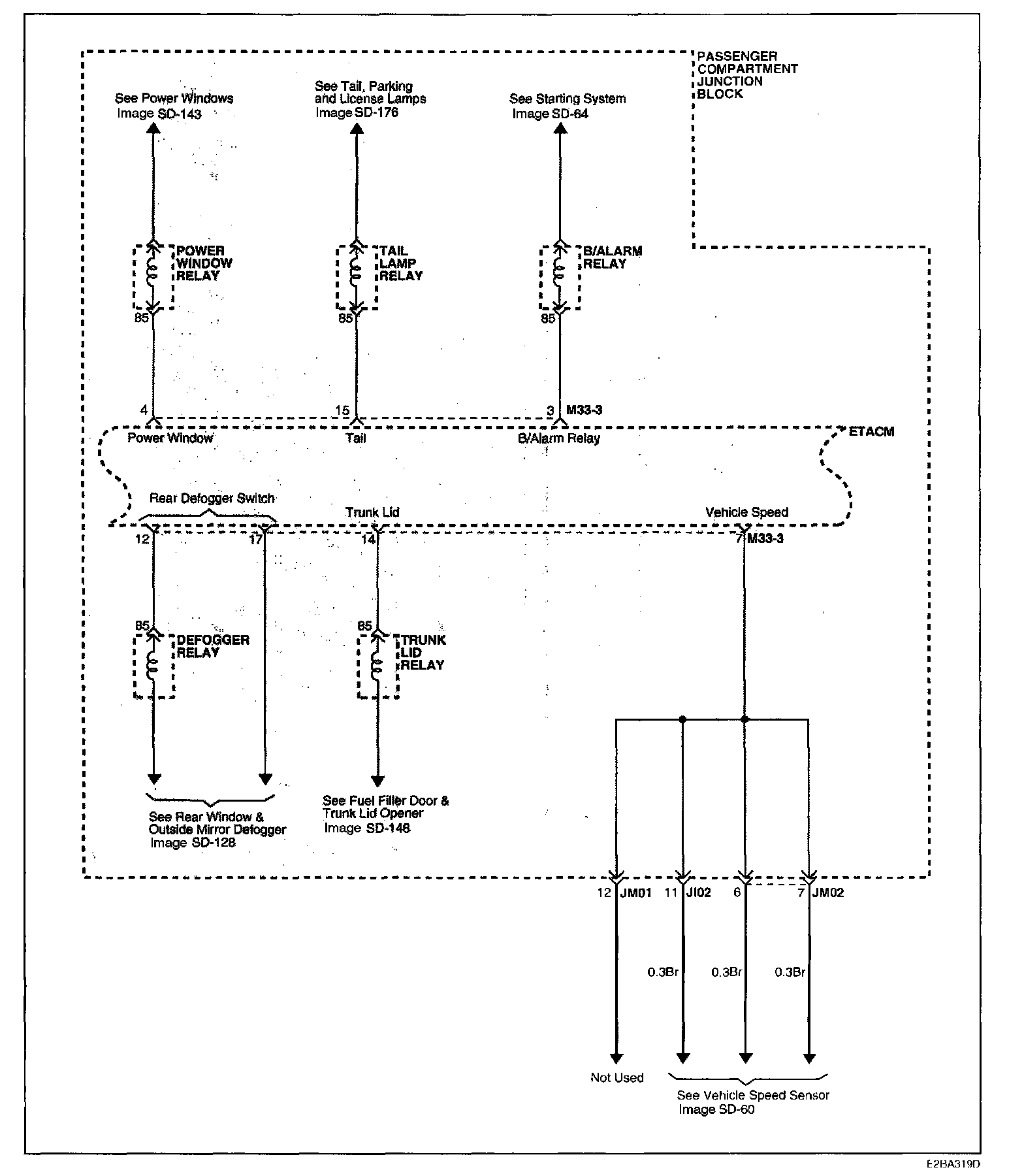

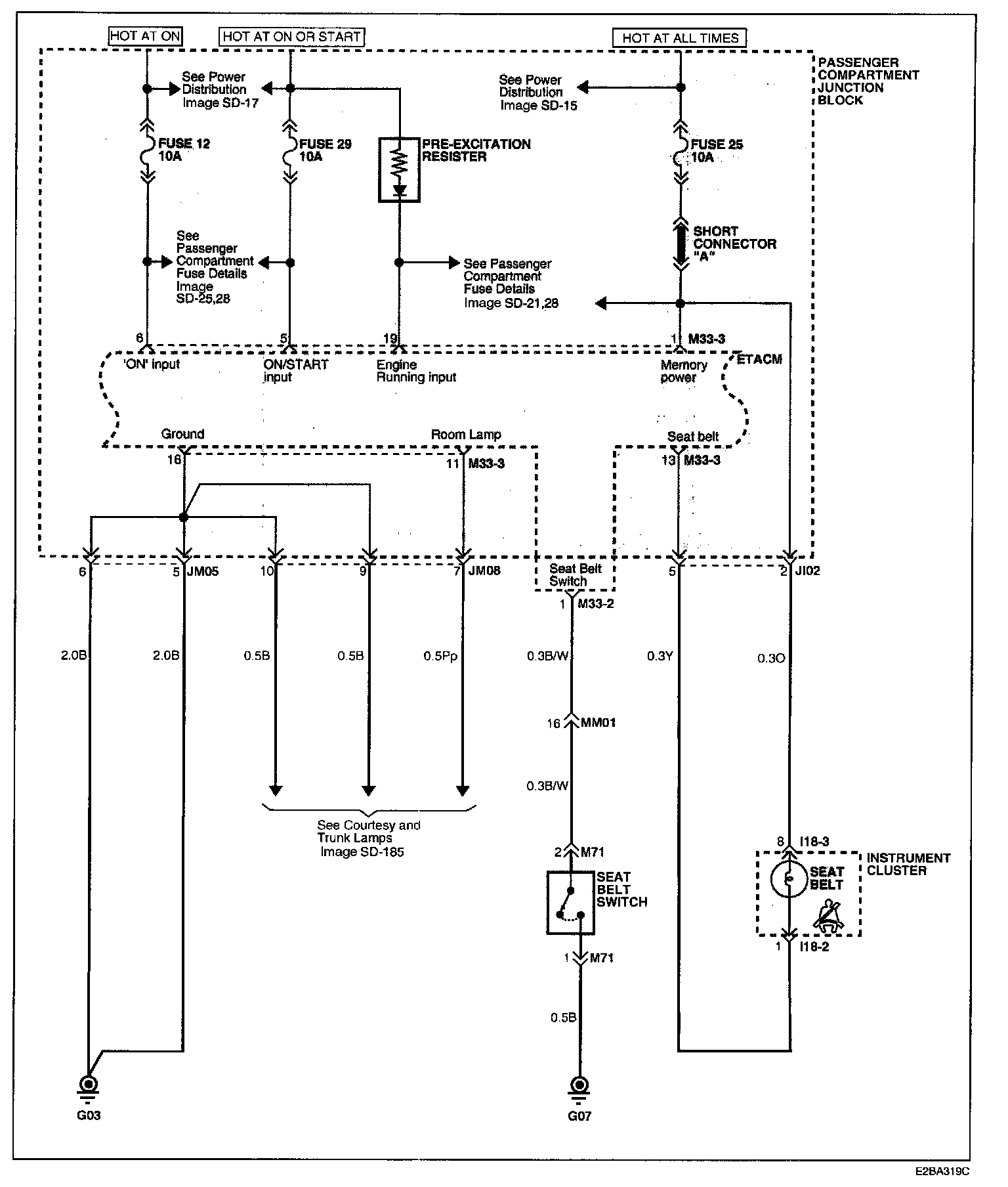

Image SD-103 - ETACS (Electronic Time & Alarm Control System) (2):

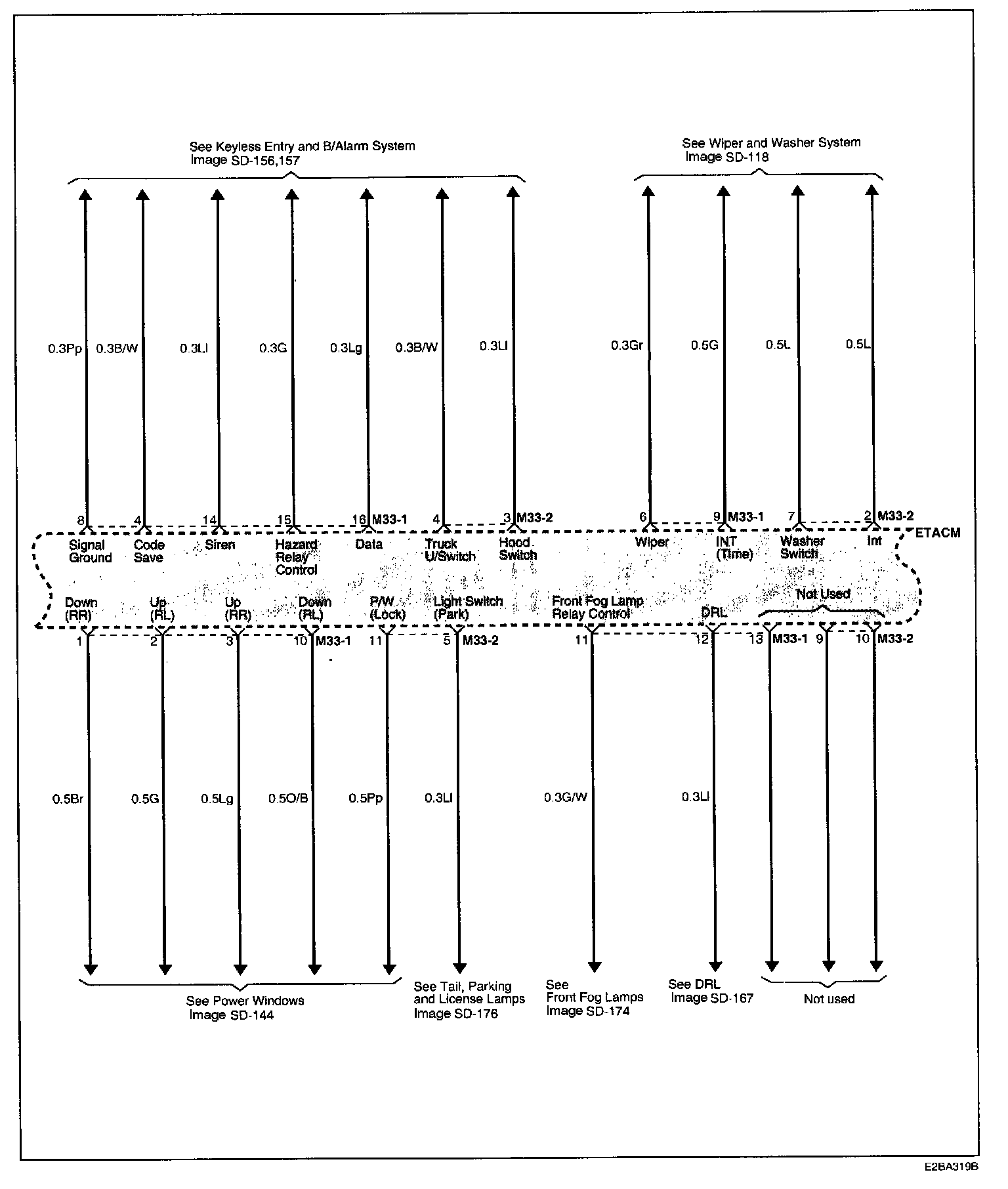

Image SD-104 - ETACS (Electronic Time & Alarm Control System) (3):

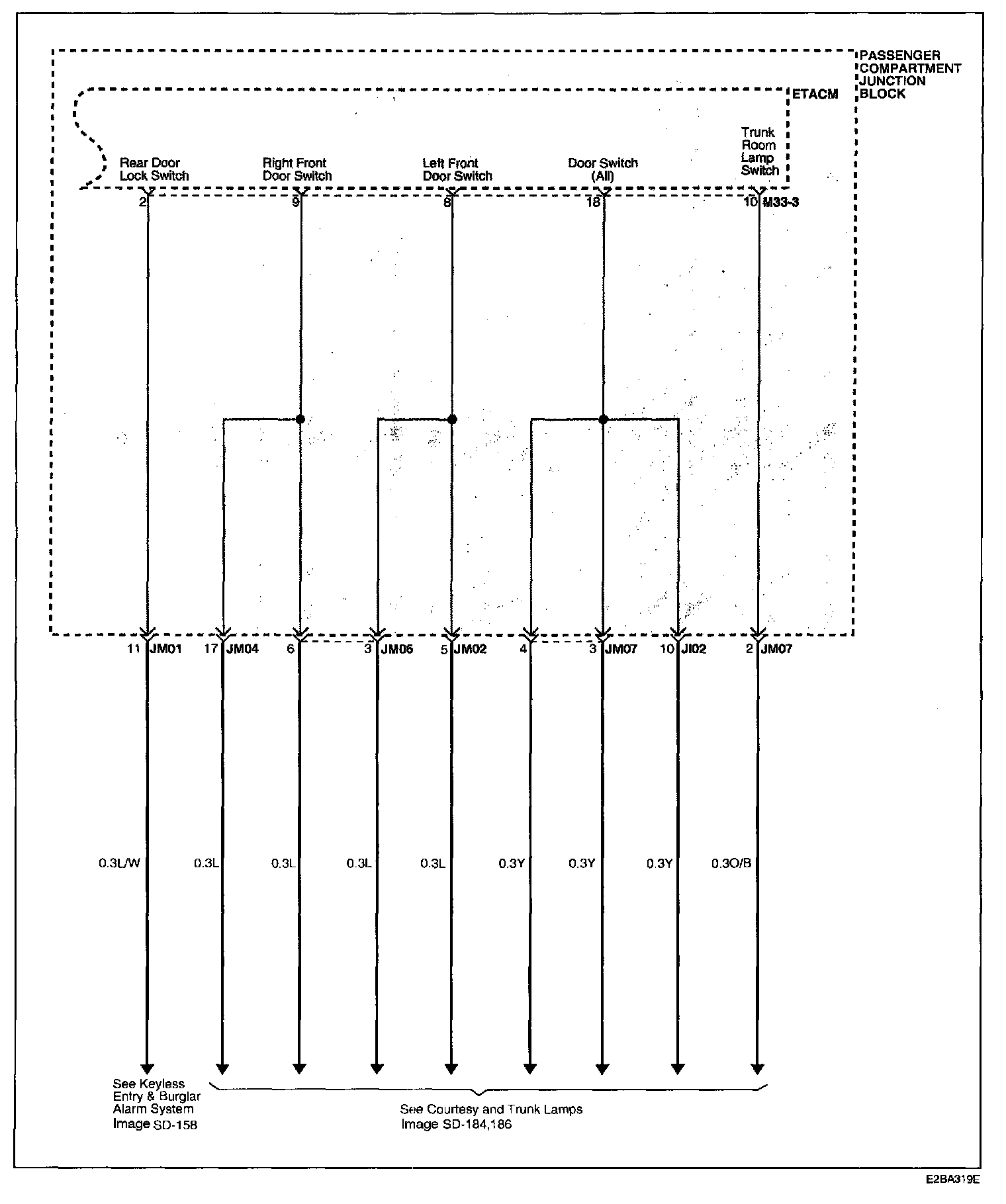

Image SD-105 - ETACS (Electronic Time & Alarm Control System) (4):
Image SD-106 - ETACS (Electronic Time & Alarm Control System) (5):
Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Diagrams
Connector Locations Are Found In The Locations Section (Tiburon) Of Vehicle.
Locations
