Home >> Hyundai >> 2001 >> XG 300 V6-3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting System

Starting System

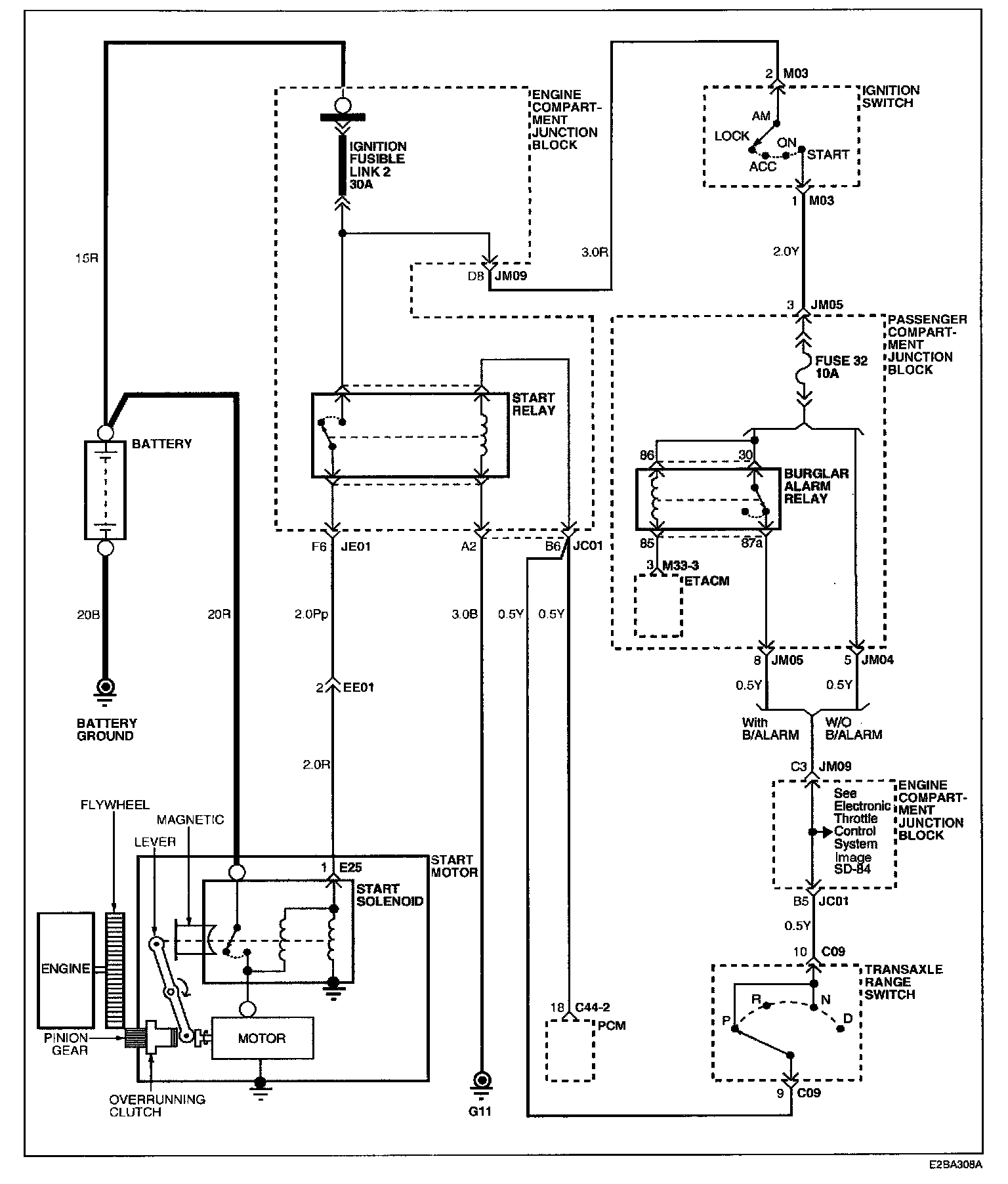

Image SD-64 - Starting System (1):
