Trunk Lamp
Trunk Lamp

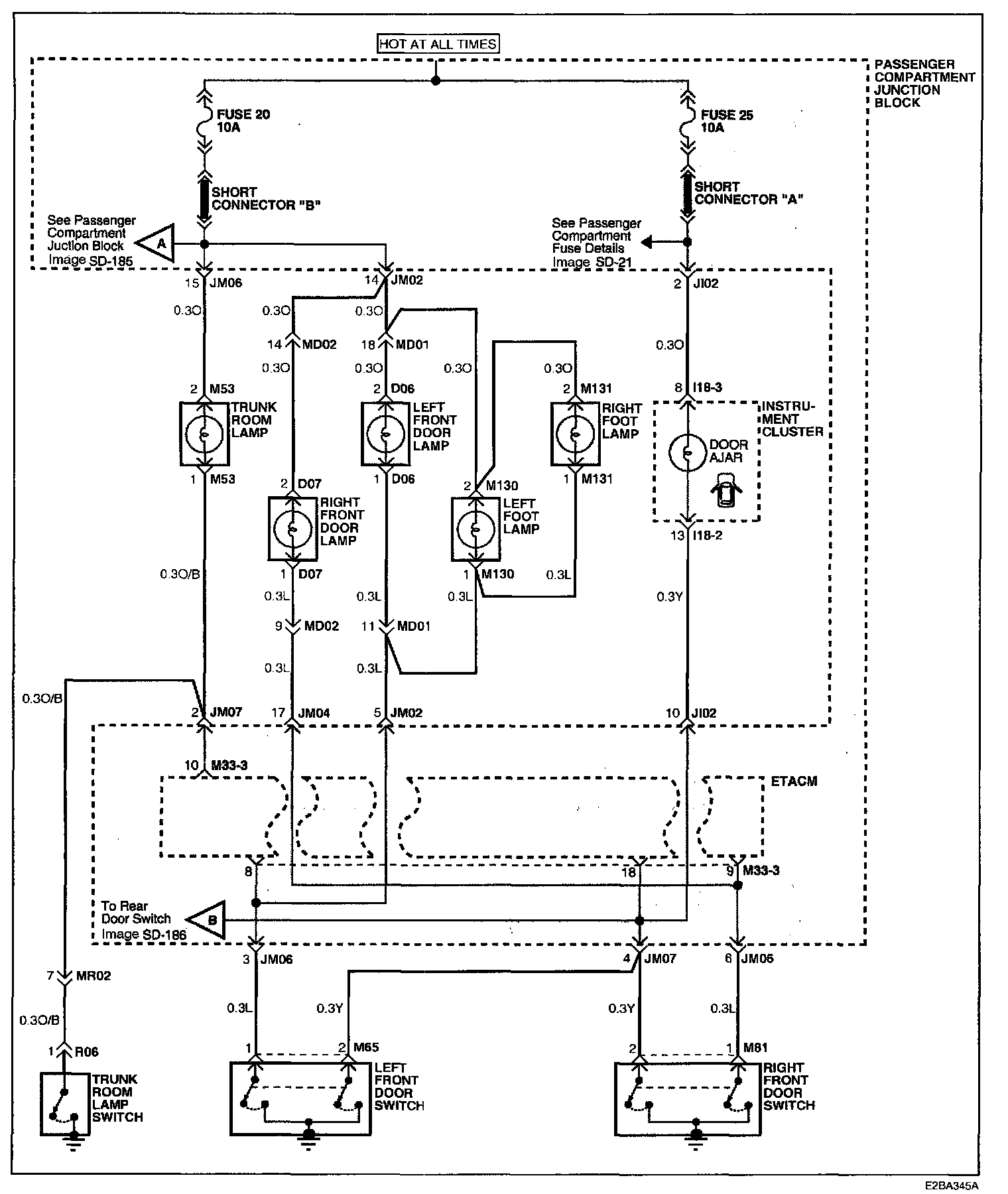

Image SD-184 - Courtesy And Trunk Lamps (1):

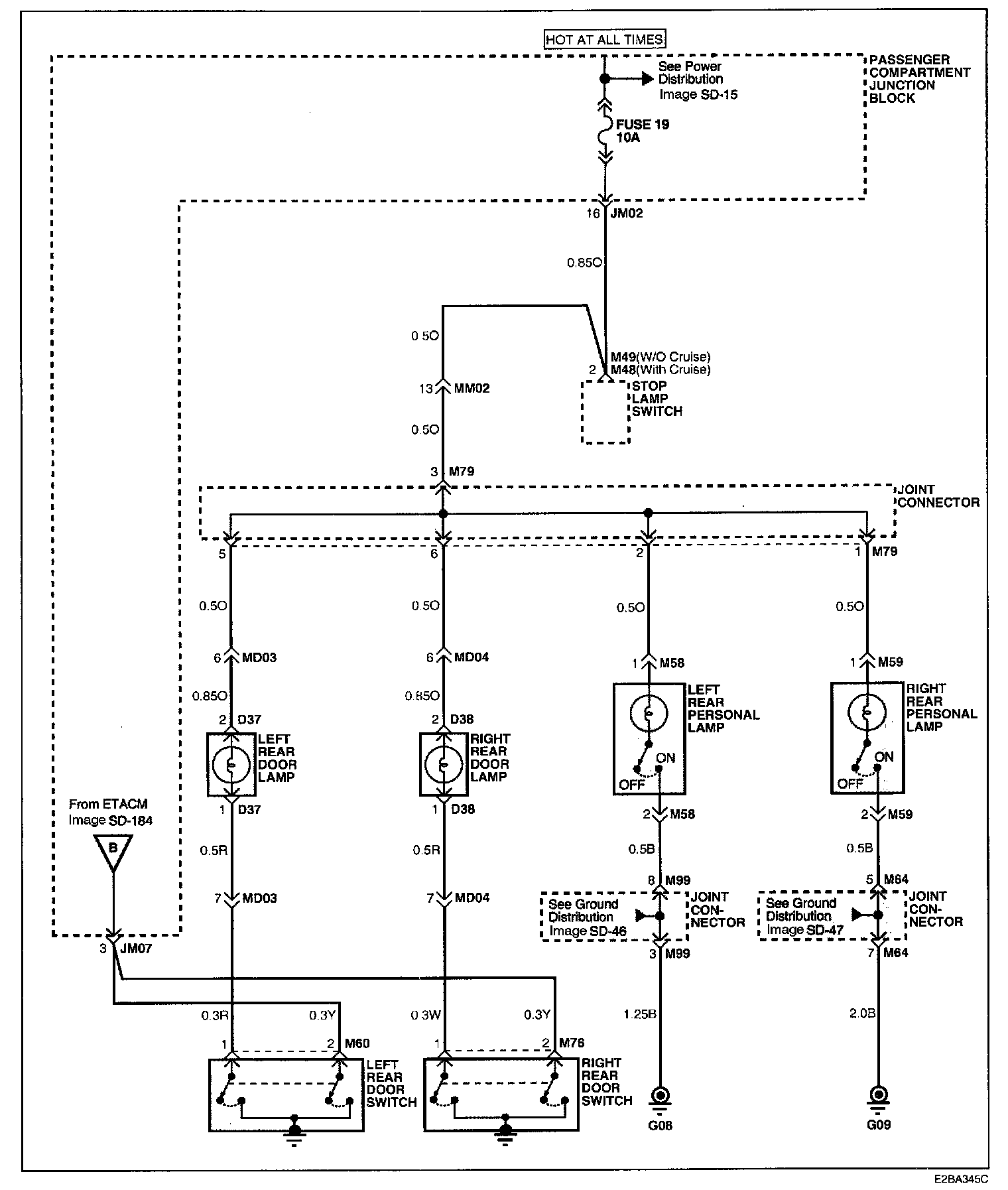

Image SD-185 - Courtesy And Trunk Lamps (2):
Image SD-186 - Courtesy And Trunk Lamps (3):
