Home >> Hyundai >> 2001 >> XG 300 V6-3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Turn Signal Lamp

Turn Signal Lamp

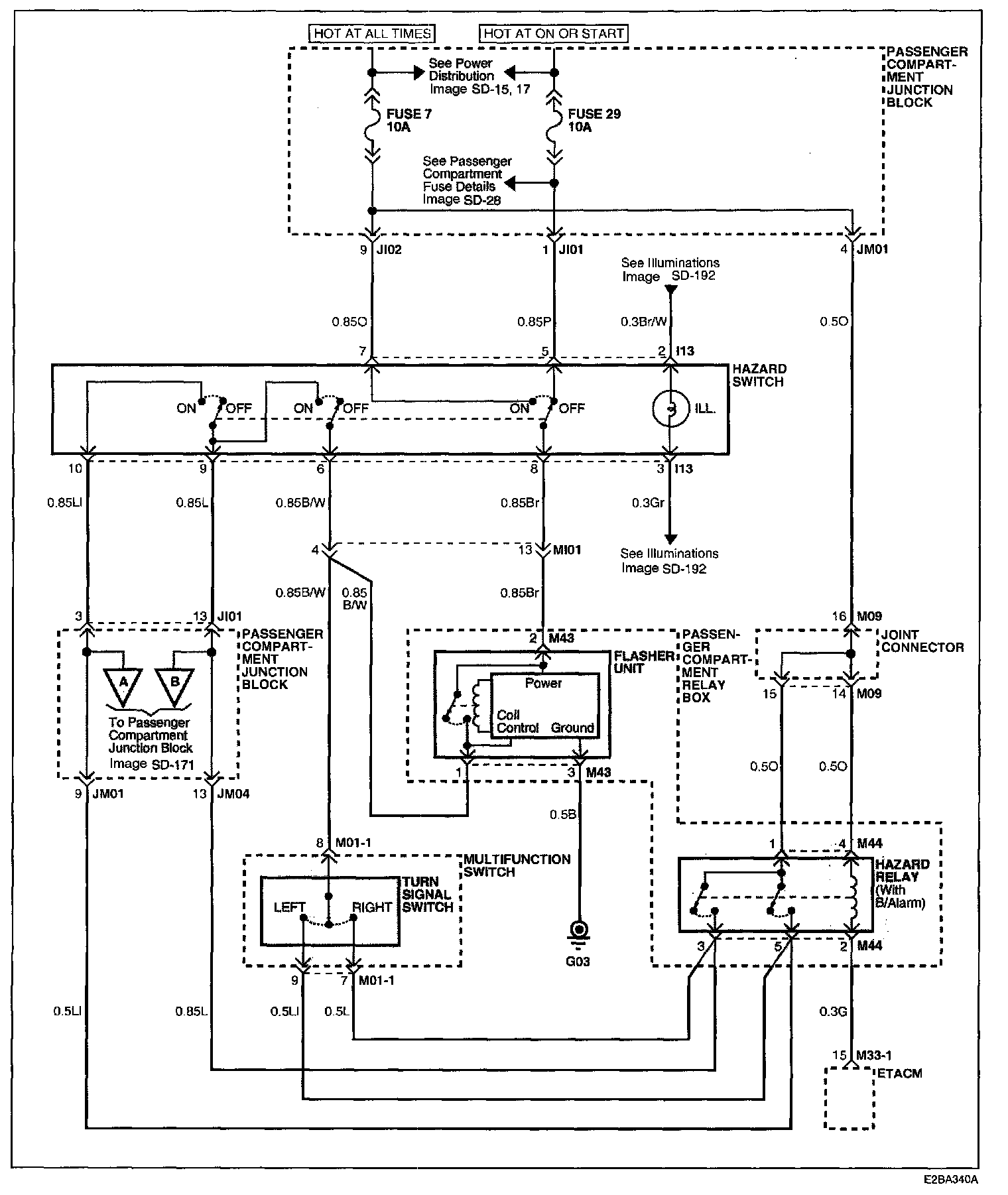

Image SD-170 - Turn/Hazard Lamps (1):

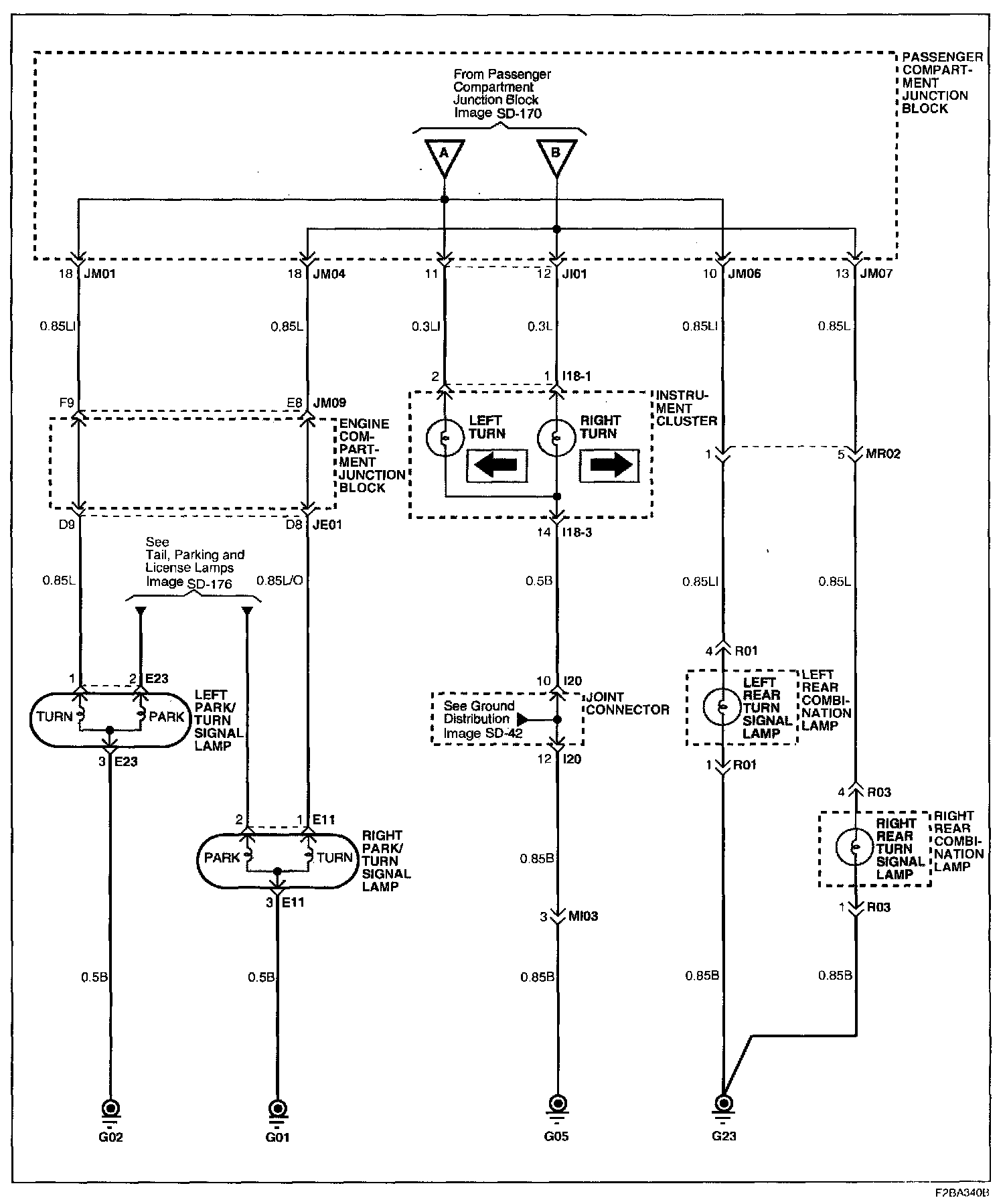

Image SD-171 - Turn/Hazard Lamps (2):
