Electrical Diagrams

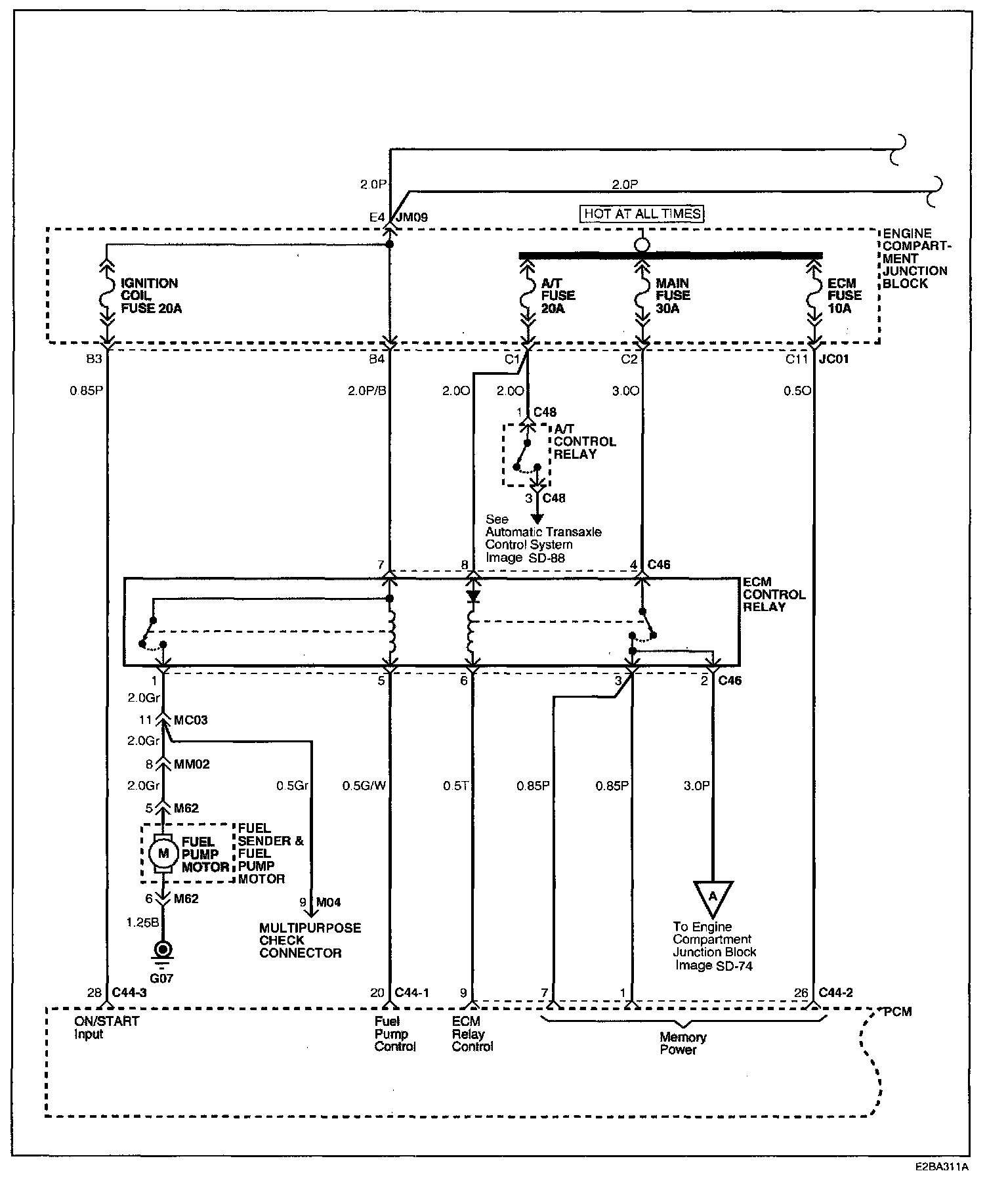

Image SD-72 - MFI Control System (1):

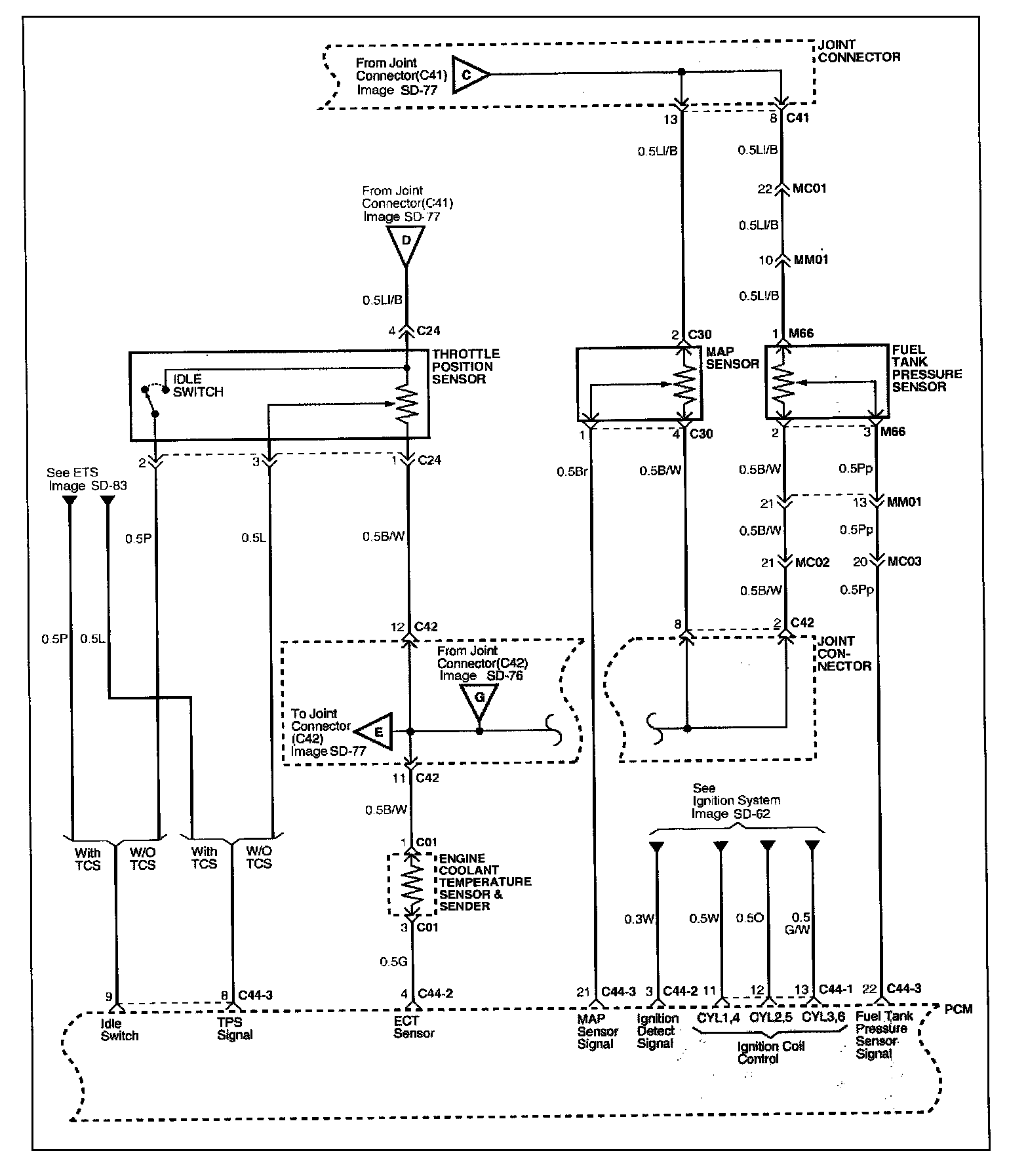

Image SD-73 - MFI Control System (2):

Image SD-74 - MFI Control System (3):

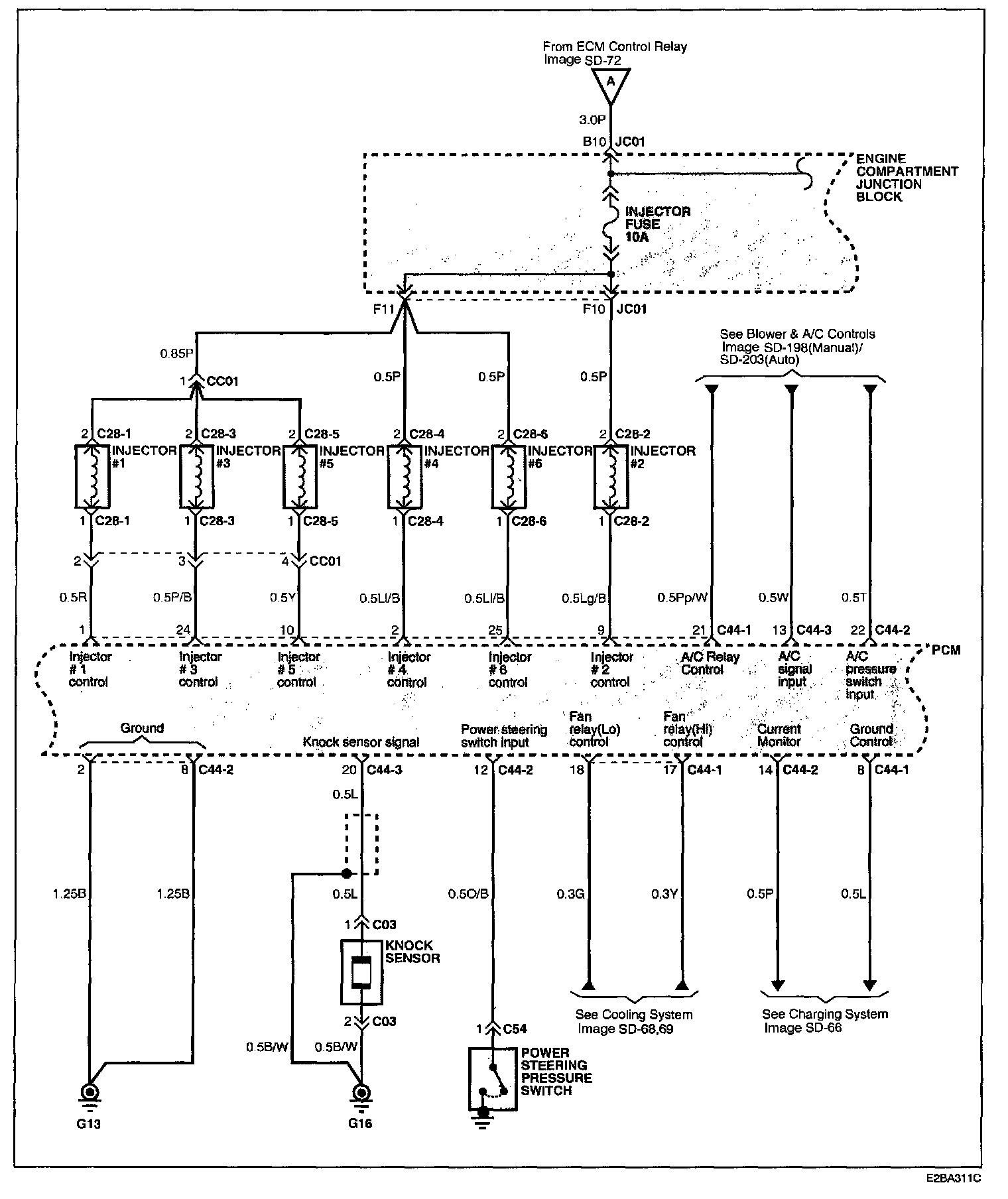

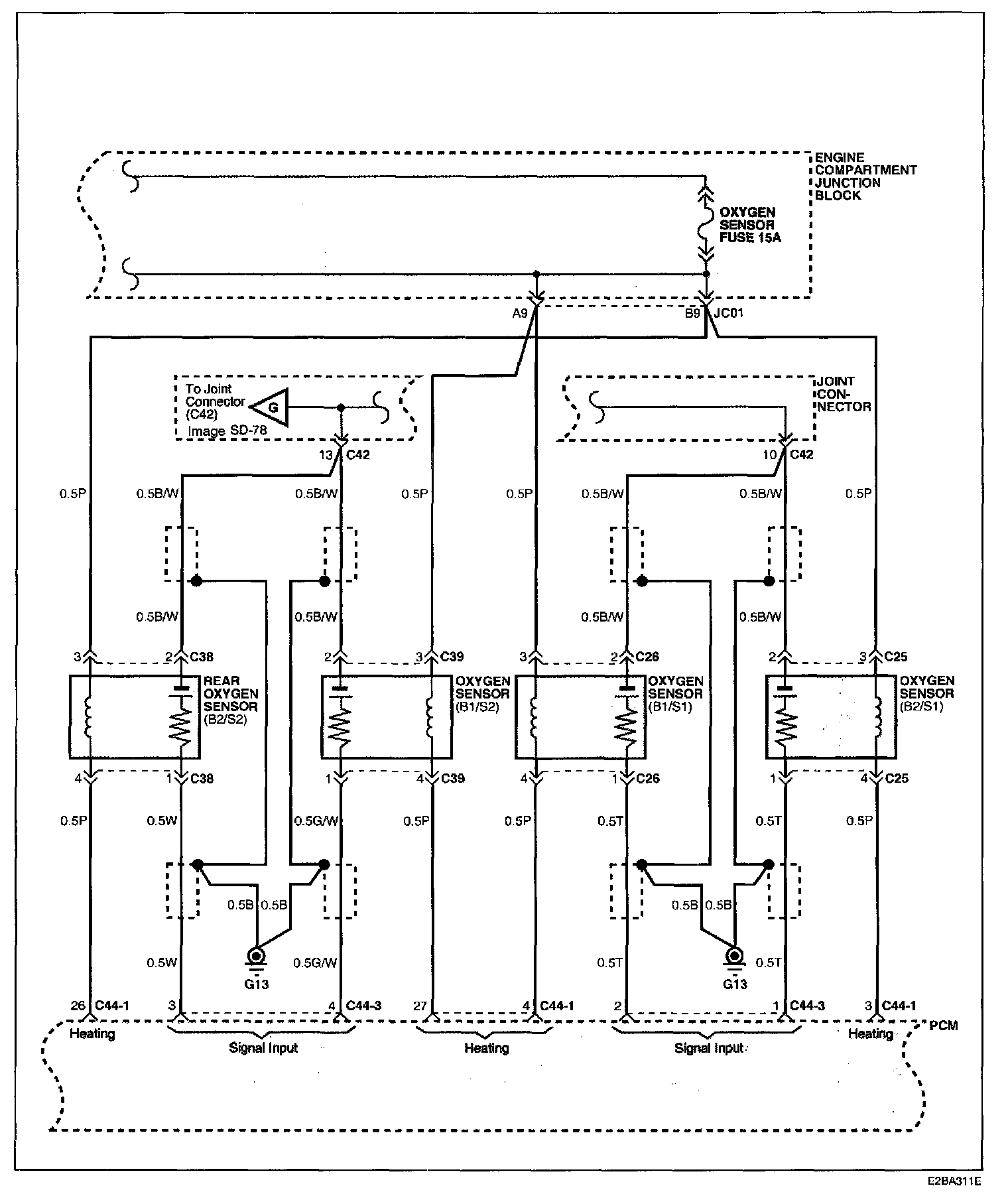

Image SD-75 - MFI Control System (4):

Image SD-76 - MFI Control System (5):

Image SD-77 - MFI Control System (6):

Image SD-78 - MFI Control System (7):

Image SD-79 - MFI Control System (8):

Schematic Drawing:
