Air Bag Systems: Specifications

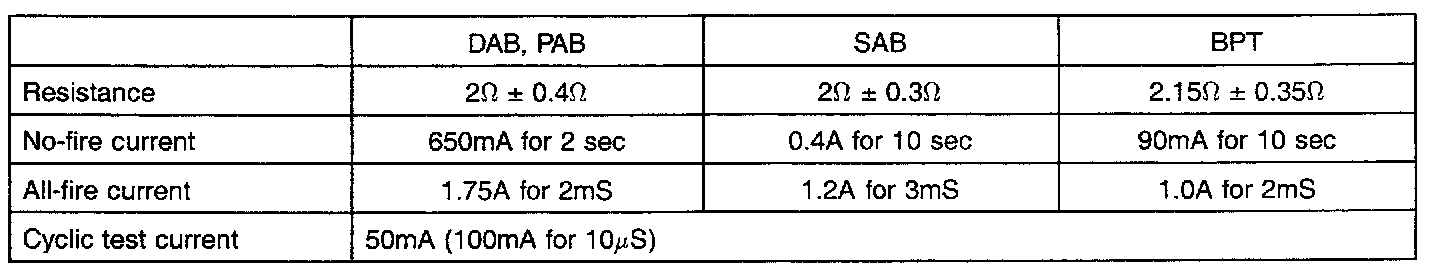

Specification:

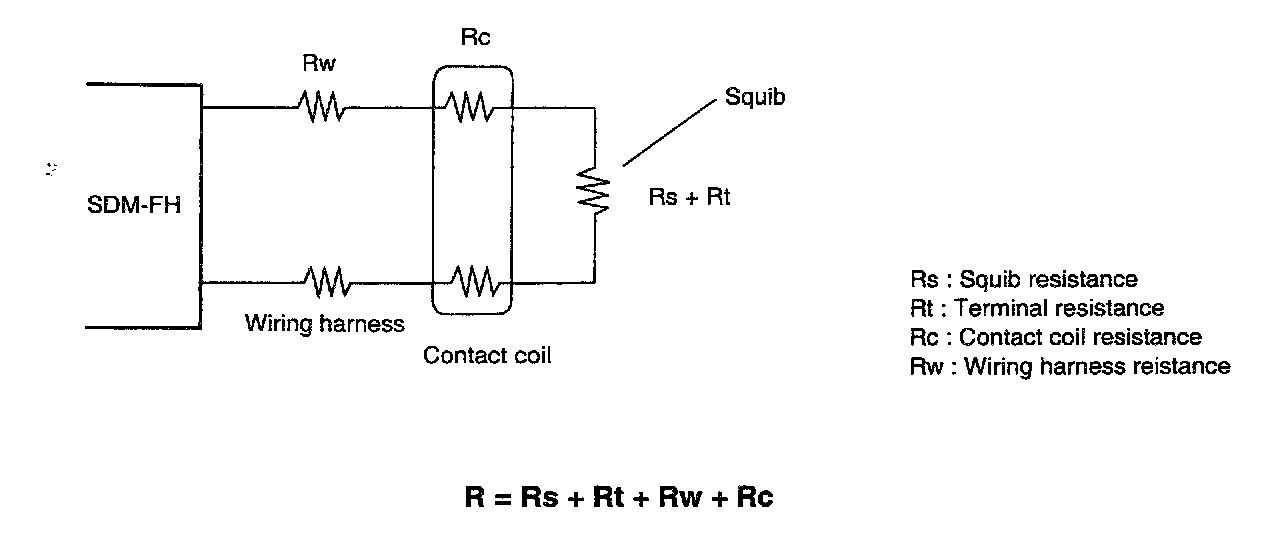

Resistance Formula:

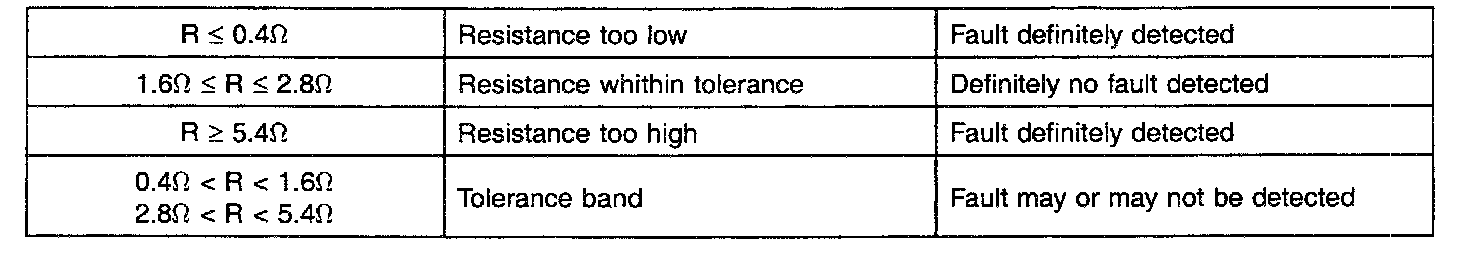

DAB - Airbag Squib Resistance Limits:



PAB, SAB, BPT - Airbag Squib Resistance Limits:
