Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
2002
>>
Accent L L4-1495cc 1.5L SOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device
Audible Warning Device

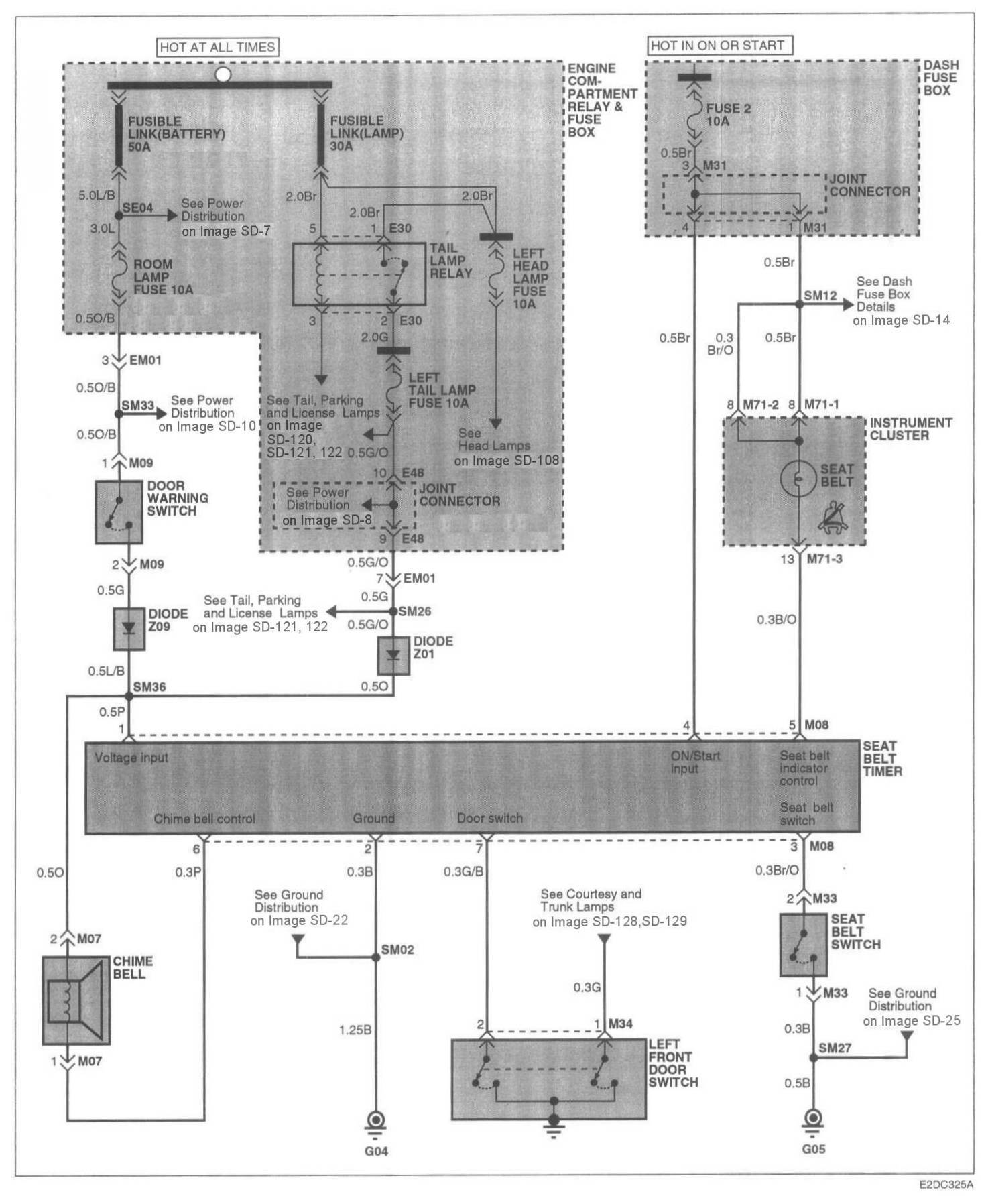

Image SD-96 Seat Belt Warning And Chime (Without ETACM) (1):
