Transmission

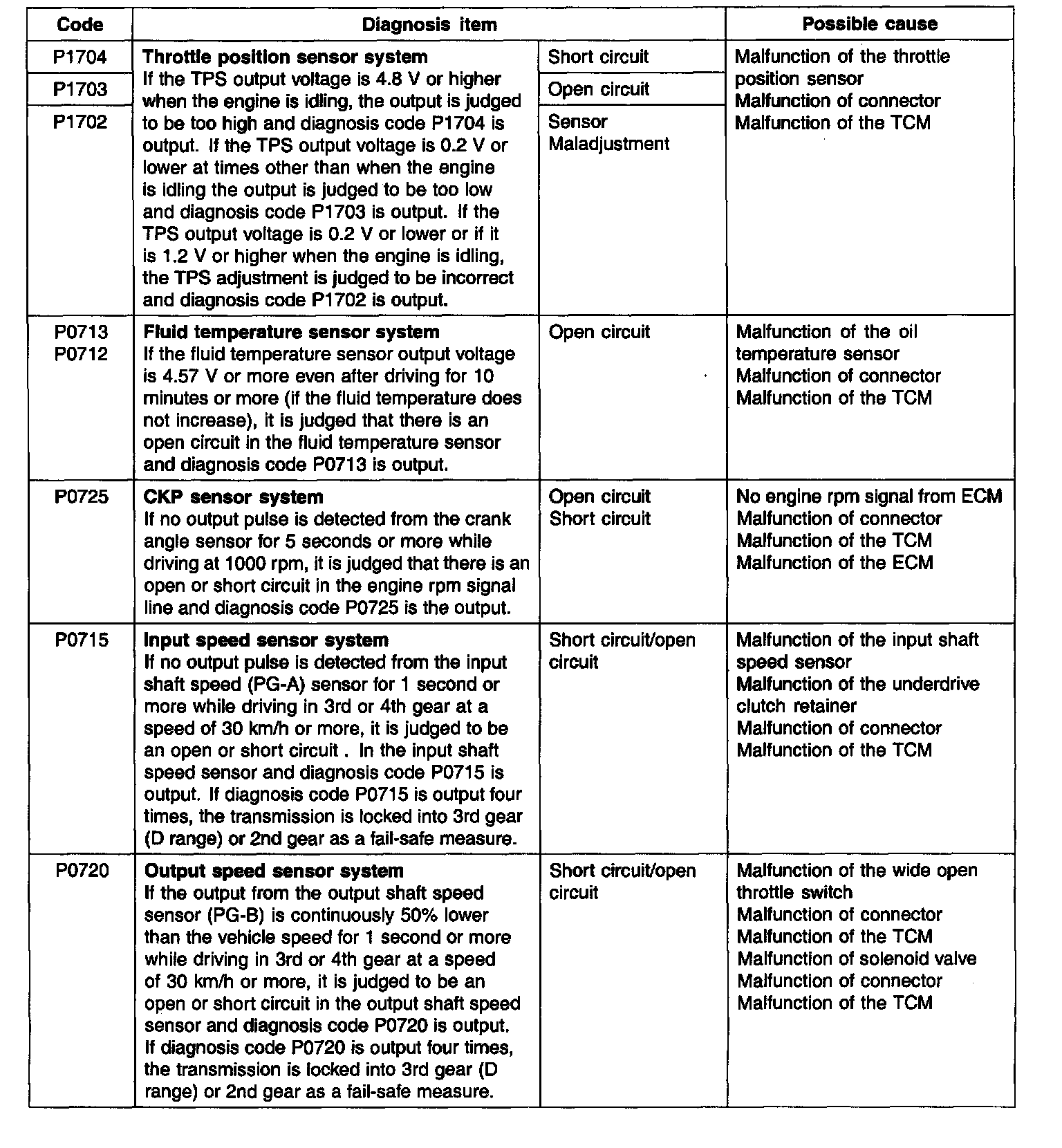

DIAGNOSTIC TROUBLE CODE DESCRIPTIONS





1 of 2





2 of 2

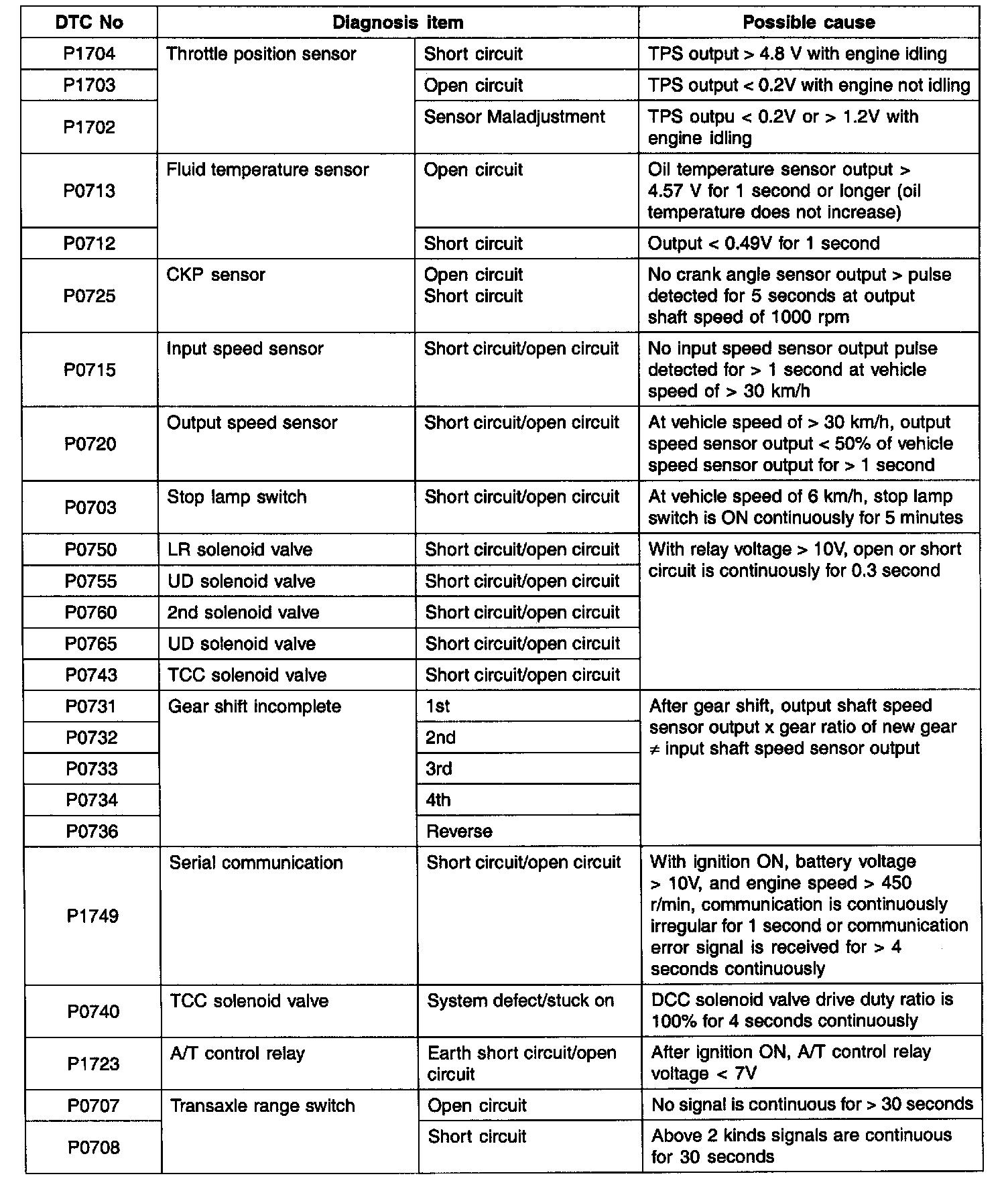

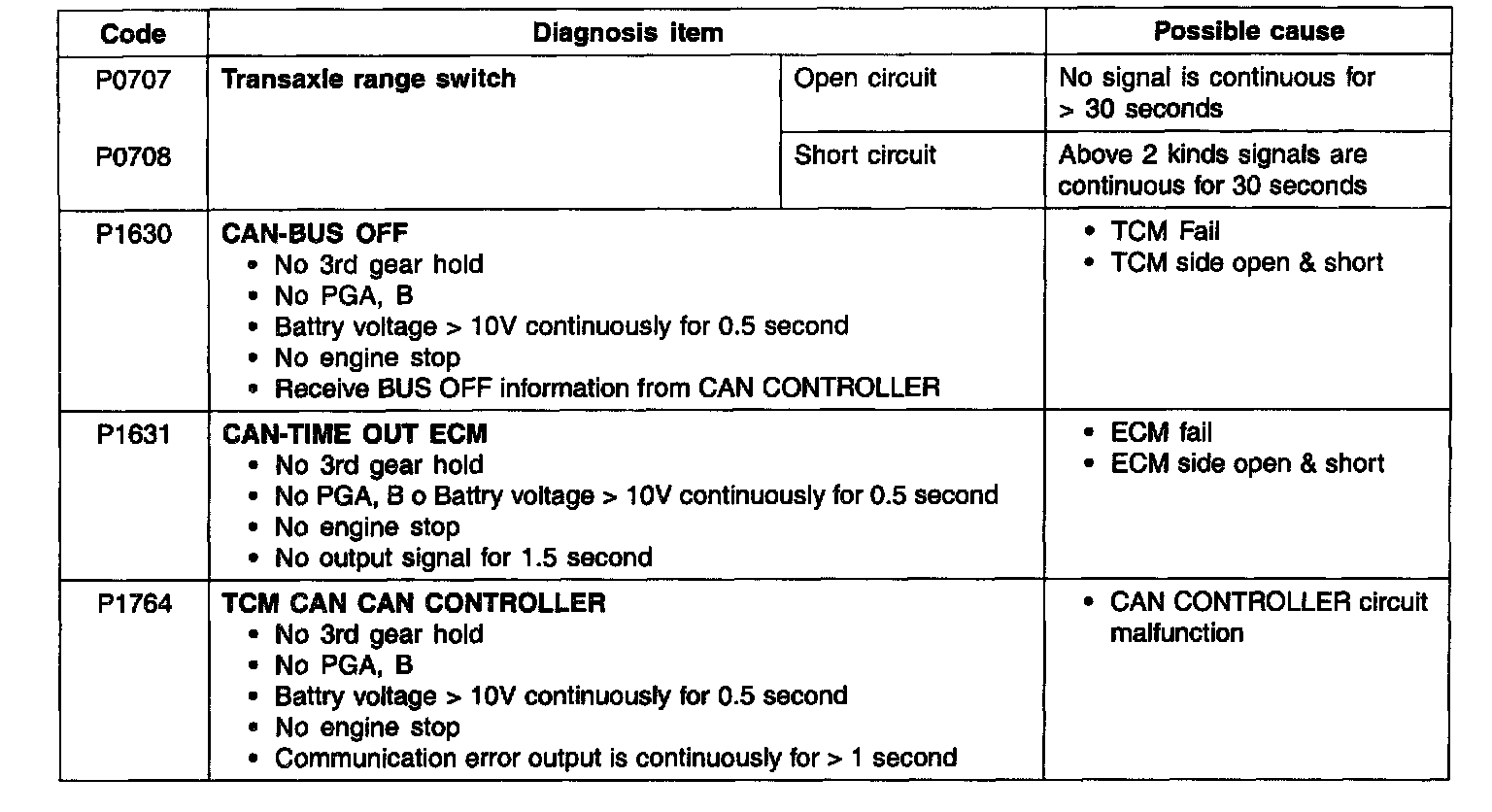

INSPECTION CHART FOR DIAGNOSIS CODES





1 of 4





2 of 4





3 of 4





4 of 4

NOTE: Hyundai Motor Company does not provide DTC specific flow charts for all DTCs. See the trouble code description list for a remedy or probable cause. In this instance, you may refer to specific component testing to determine the fault. Also, refer to TSBs for updated diagnostics.
