Cruise Control Servo Cable: Adjustments




CABLE ADJUSTMENT

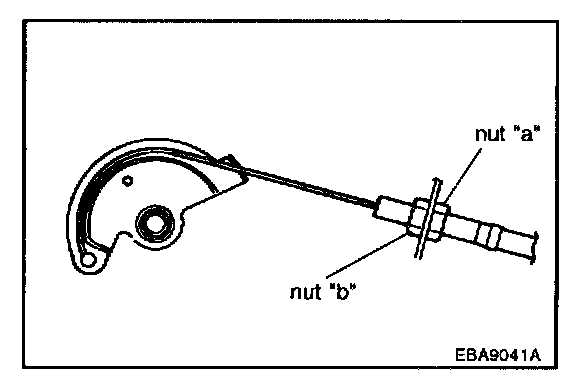

1. Assemble the cable to actuator and unit assembly.
2. Tighten nut "b" after pulling the cable tightly.
3. Back nut "b" off one turn.
4. Tighten nut "a".
5. Cable should have approximately 1 mm of slack with the actuator and unit against the stop.
