Starting System

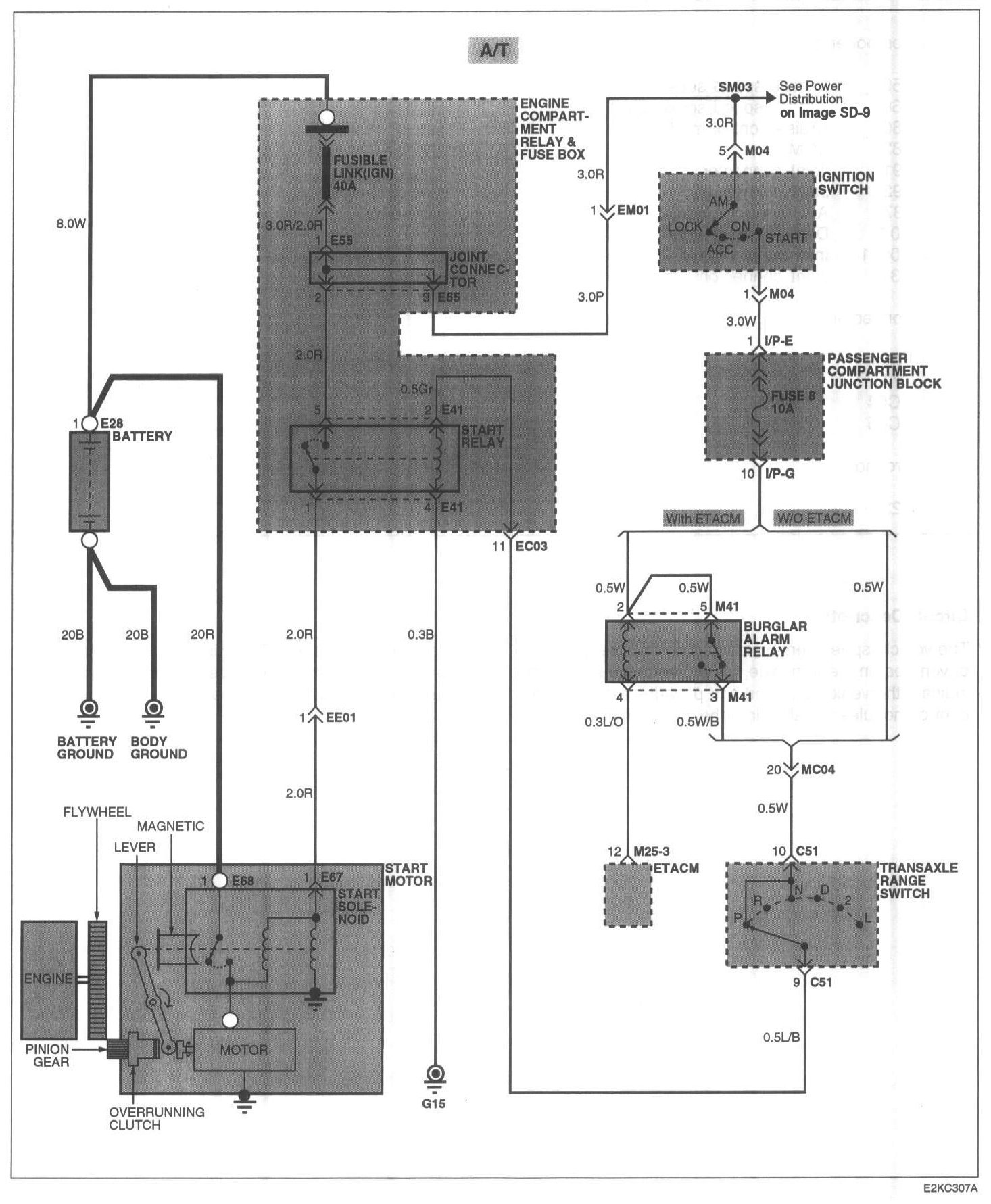

Image SD-52 Starting System (1):
Image SD-53 Starting System (2):

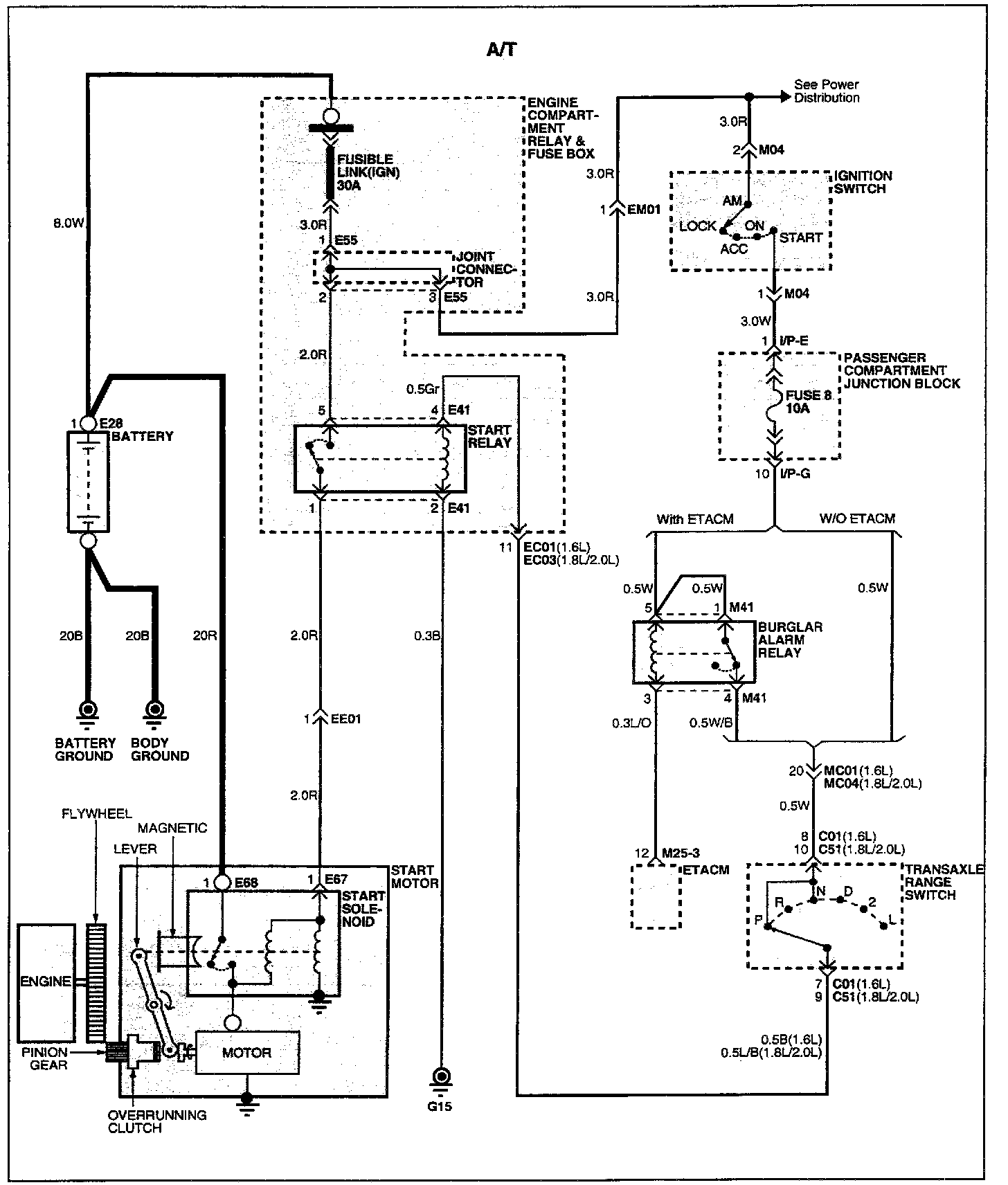

Circuit Diagram (A/T):
Circuit Diagram (M/T):
