Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
2002
>>
Elantra GLS Sedan L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Main Harness
Main Harness
Main Harness View:

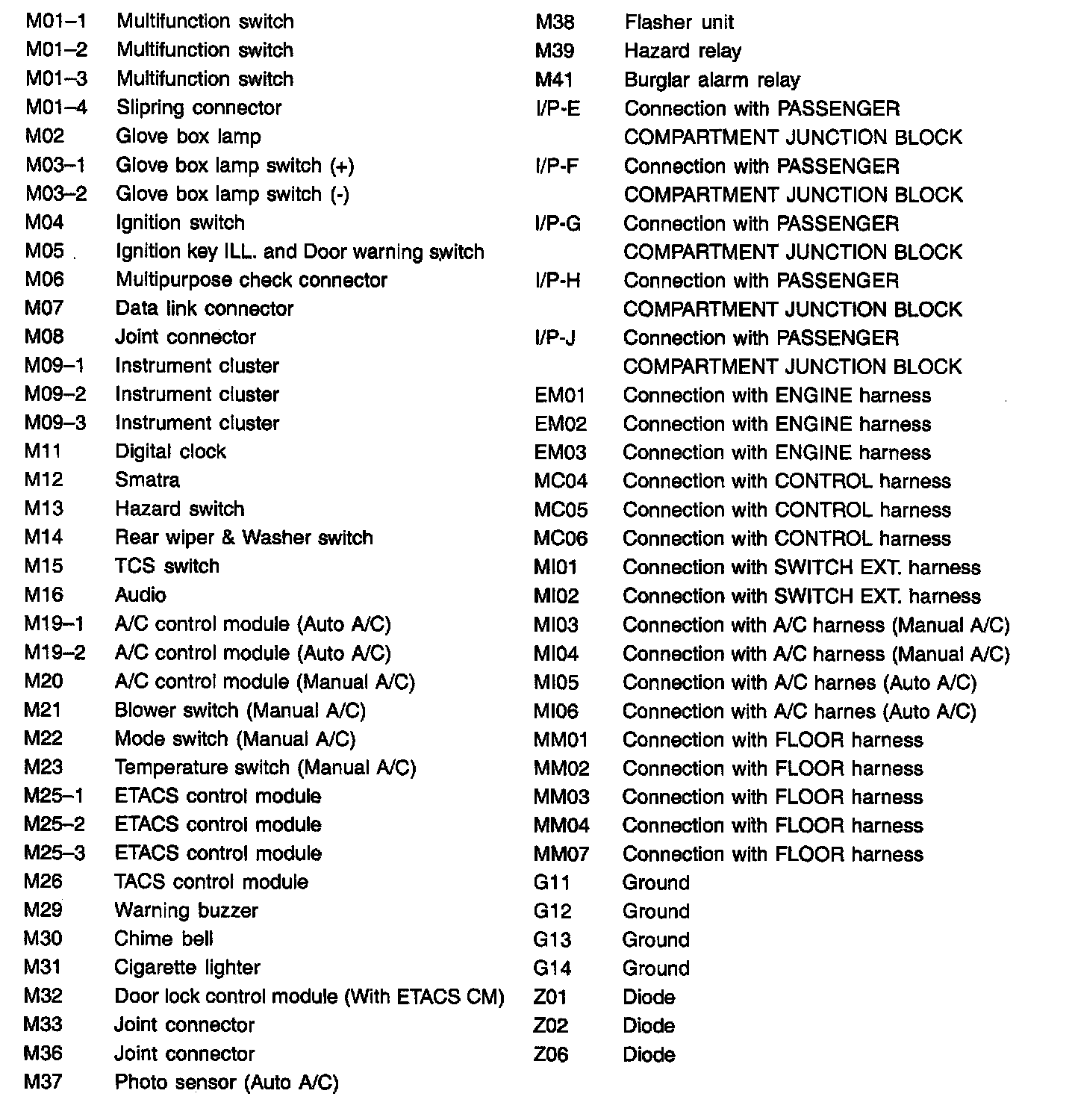

Main Harness Index:

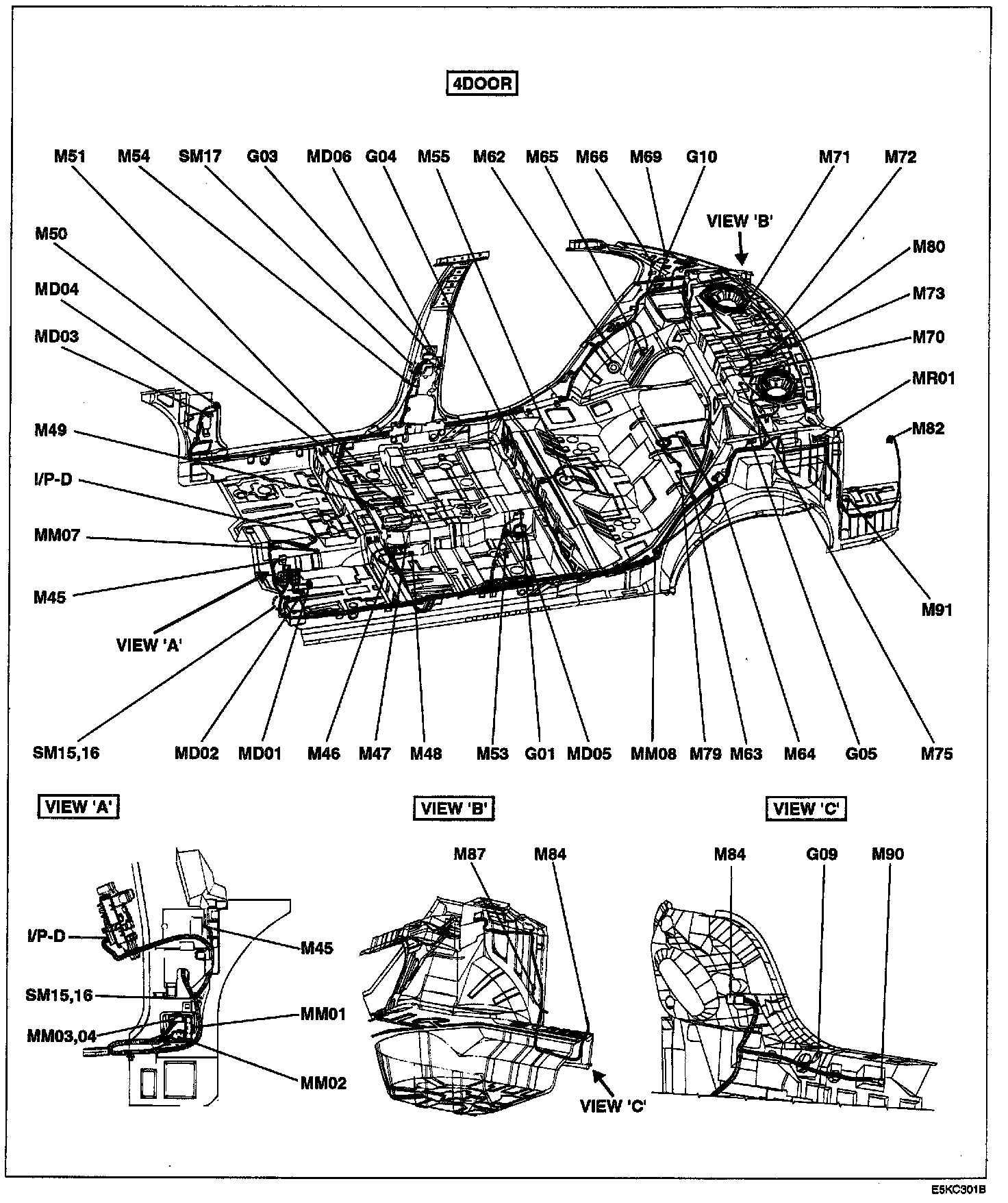

Main Harness (Floor) View:
Main Harness (Floor) Index:
Main Harness (Roof) View:
Main Harness (Roof):
