Blower Motor: Testing and Inspection

BLOWER MOTOR CHECKING (AUTOMATIC)

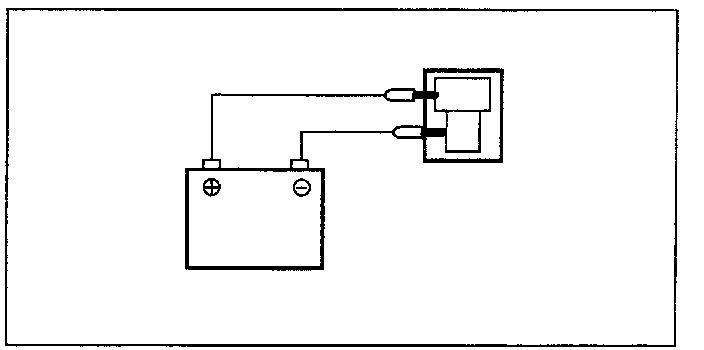

Connect battery voltage and check blower motor rotation.

Check:

POWER TR CHECKING

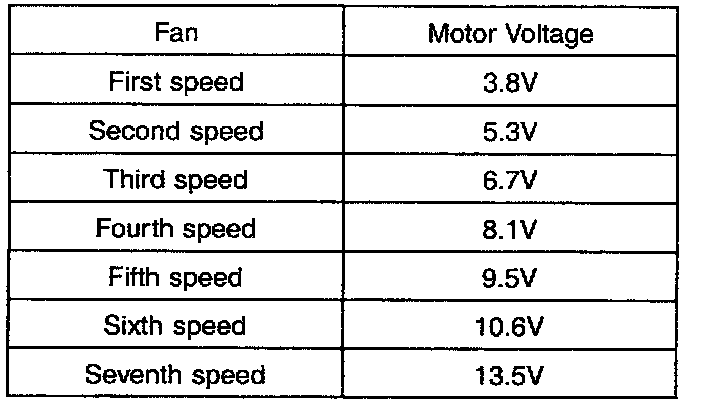

Operating the blower switch as AUTO => LOW => HIGH => AUTO, and measure voltage between pins 1 and 2.




BLOWER MOTOR CHECKING (MANUAL)
Connect the battery voltage and check the blower motor rotation.
