Radio, Stereo, and Compact Disc: Testing and Inspection

Chart 1 Part 1:

Chart 1 Part 2:

Chart 2:

Chart 3:

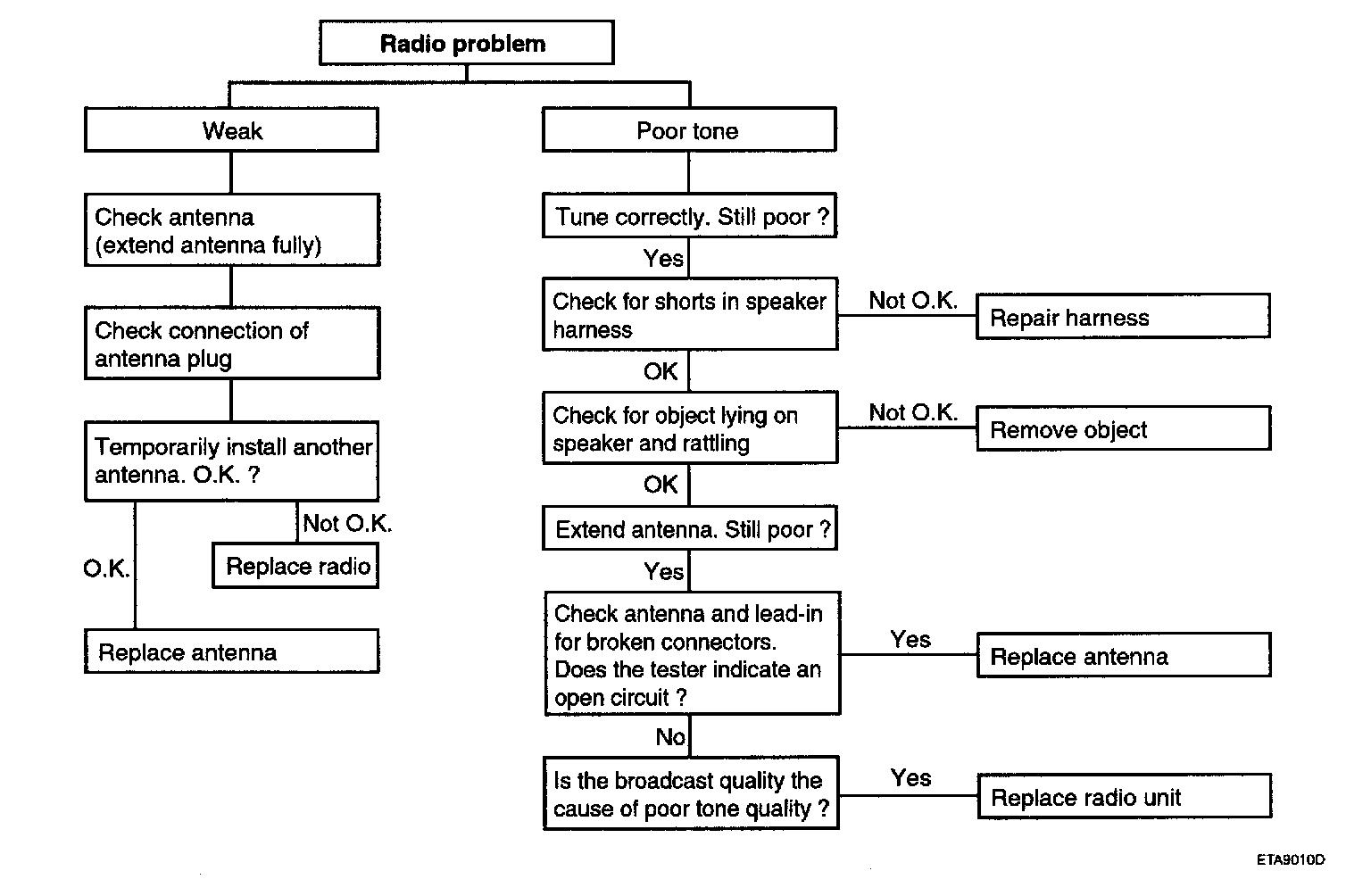

Chart 4 - 1.Radio:

Chart 4 - 2.Tape:

Chart 5 - 1.CD Will Not Be Accepted:

Chart 5 - 2.No Sound:

Chart 5 - 3.CD Sound Skips:

Chart 5 - 4.Sound Quality Is Poor:

Chart 5 - 5.CD Will Not Eject:

Chart 5 - 6.No Sound From One Speaker:

Chart 6:

Chart 7:

Chart 8:

Chart 9:

Chart 10:

There are six areas where problem can occur, wiring harness, the radio, the cassette tape deck, the CD player, the speaker and the antenna. Troubleshooting enables you to confine the problem to the particular area.
