Sunroof / Moonroof: Adjustments
VERIFY OPERATING CONDITION AFTER INSTALLATIONIf the glass panel moves slowly, check and adjust.
1. Make sure the battery is fully charged.
2. Make sure that the sunroof sliding unit is free of abrasive materials.
3. Make sure that, when the glass panel opens, the rear of the panel does not jam against the roof panel. If there is interference, fully open the glass panel and move the stopper forward.
NOTE: If the stopper is moved forward too far, it may cause malfunction or leaks. Make sure the gap between the glass panel and roof panel is not more than 0.3 mm (0.012 in.).
4. Measure the driving force of the motor, and adjust it to 15 - 25 kg (33.1 - 55.7 lb) with the torque adjustment nut on the motor.
5. After adjustment, be sure to lock the nut with the pawl washer.
ADJUSTMENT
Adjust the difference between the height of the glass panel and the roof panel.
Front side 0 (+0, -1.0) mm
Rear side 0 (+1, +0) mm
If the difference is not as specified, adjust using the following procedure.

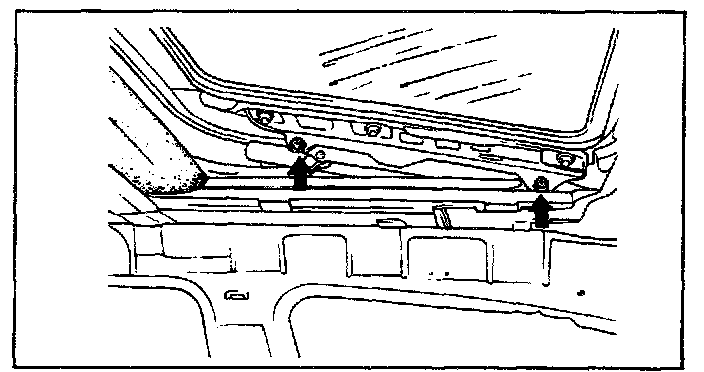

1. Loosen the front screw and rear screw. Adjust the height between the glass panel and roof panel.
2. Loosen the nuts holding the glass panel and adjust the gap between the glass panel and roof panel.
