Home >> Hyundai >> 2002 >> Sonata GLS V6-2.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> System Diagram

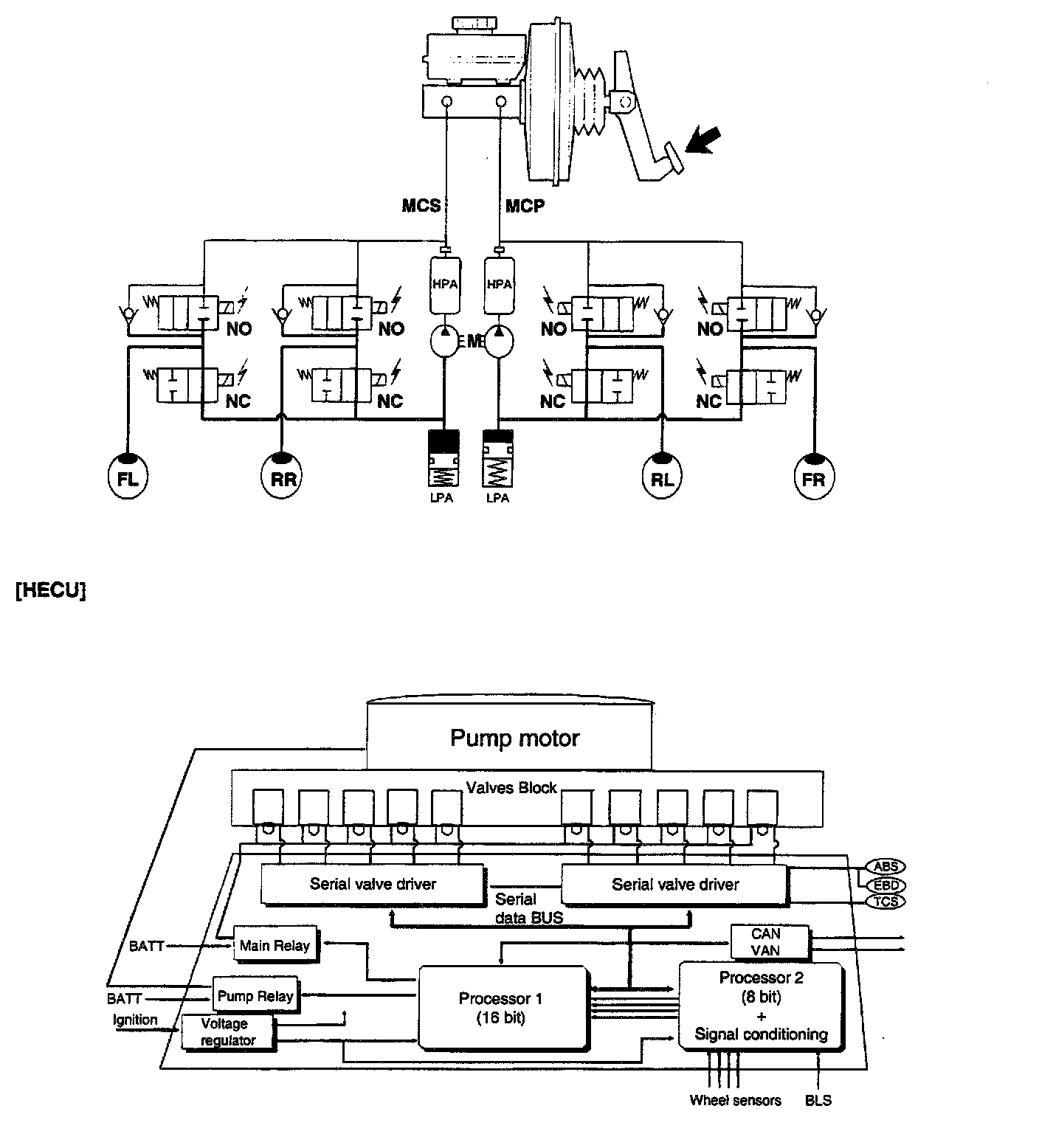

System Diagram

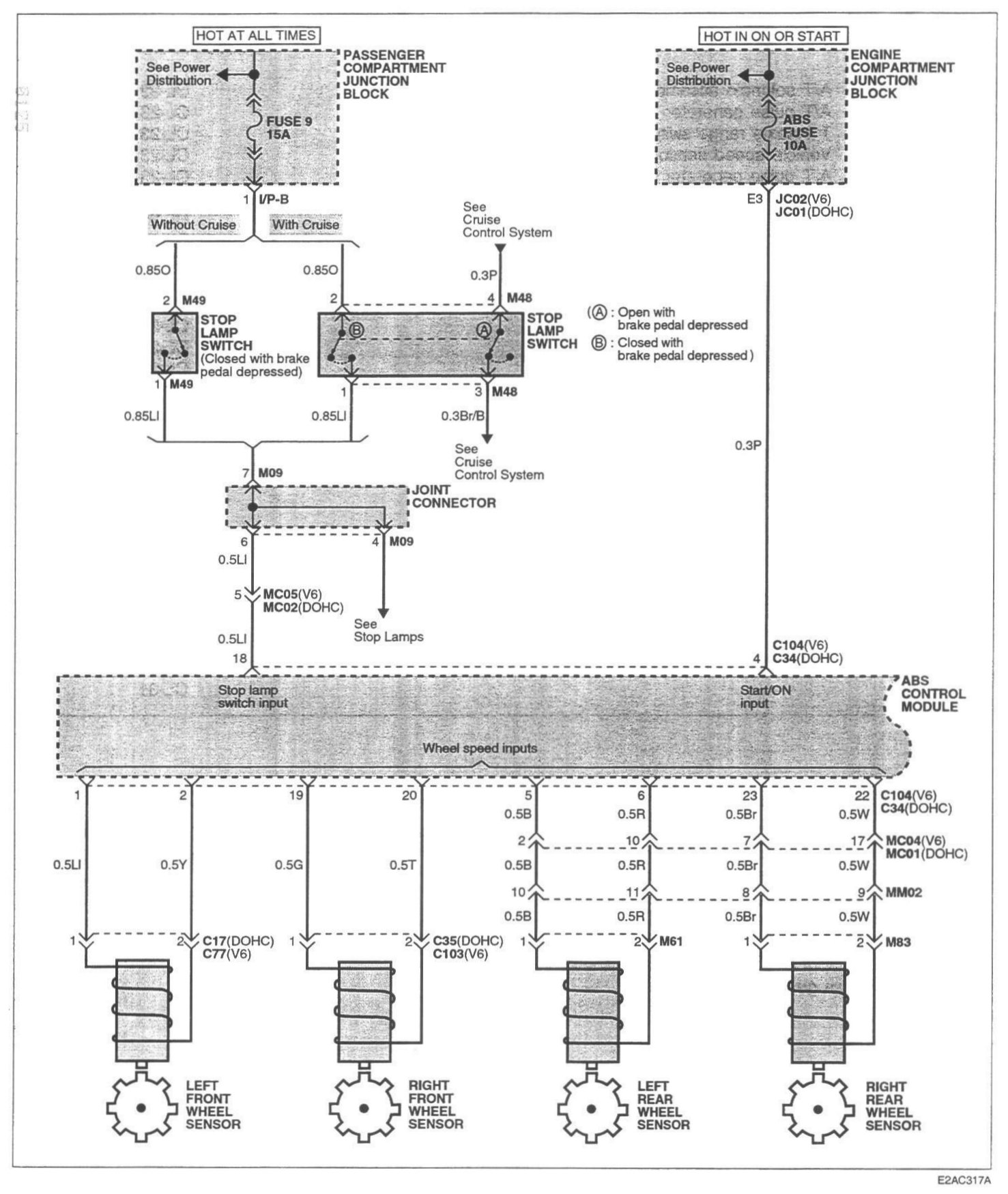

Image SD-110 Anti-Lock Brake System / Traction Control System (1):

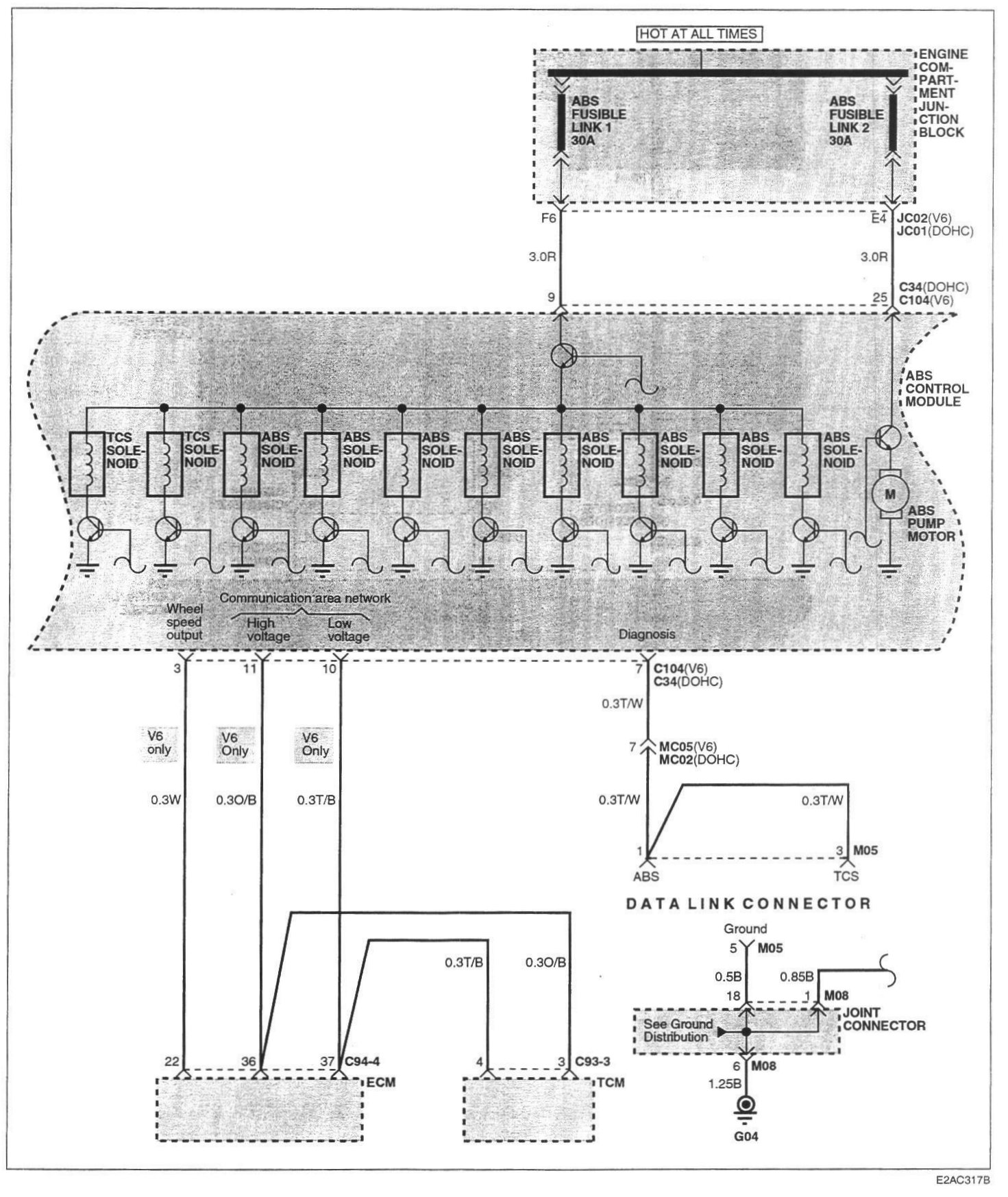

Image SD-111 Anti-Lock Brake System / Traction Control System (2):

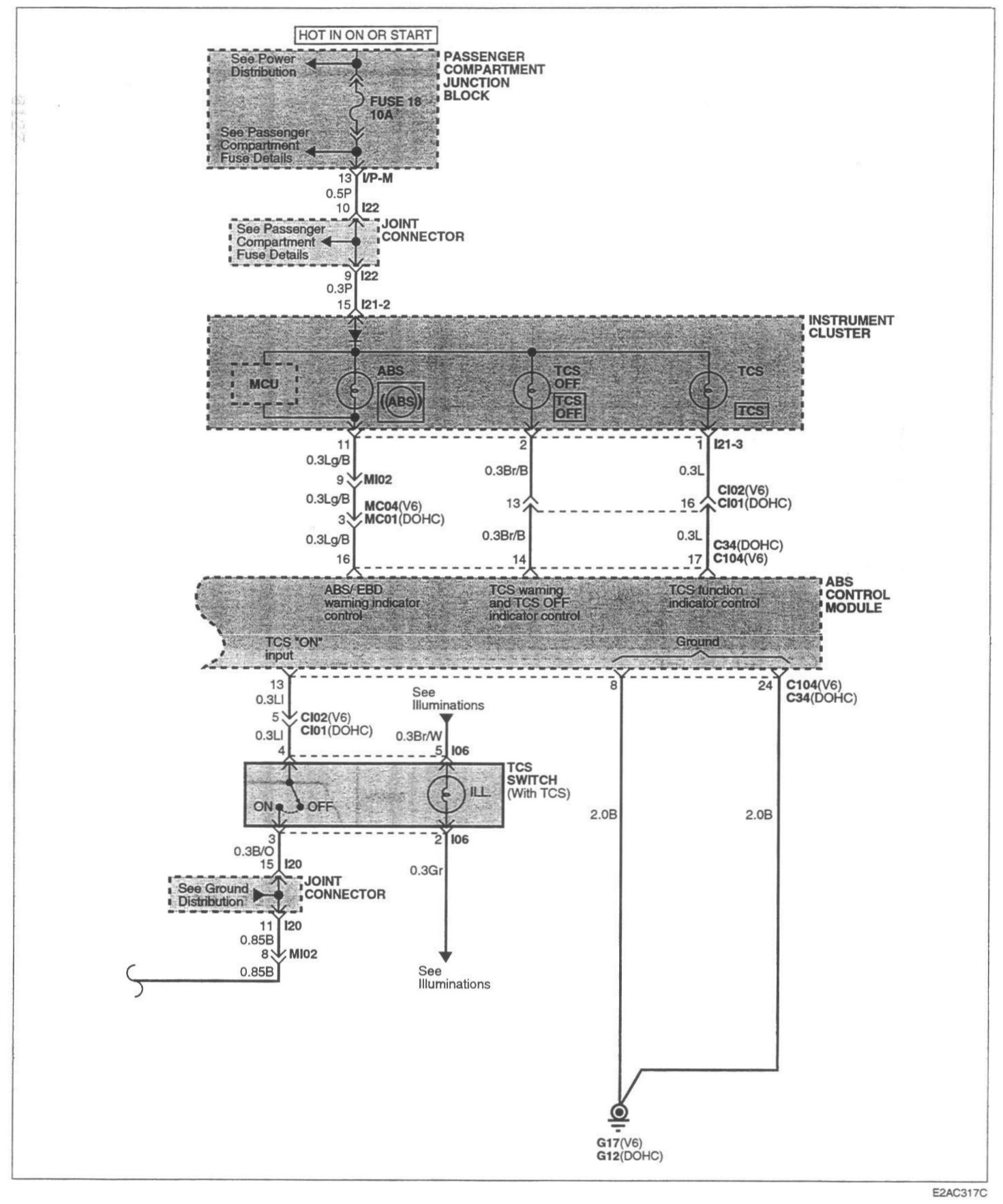

Image SD-112 Anti-Lock Brake System / Traction Control System (3):
