Instrument Cluster / Carrier

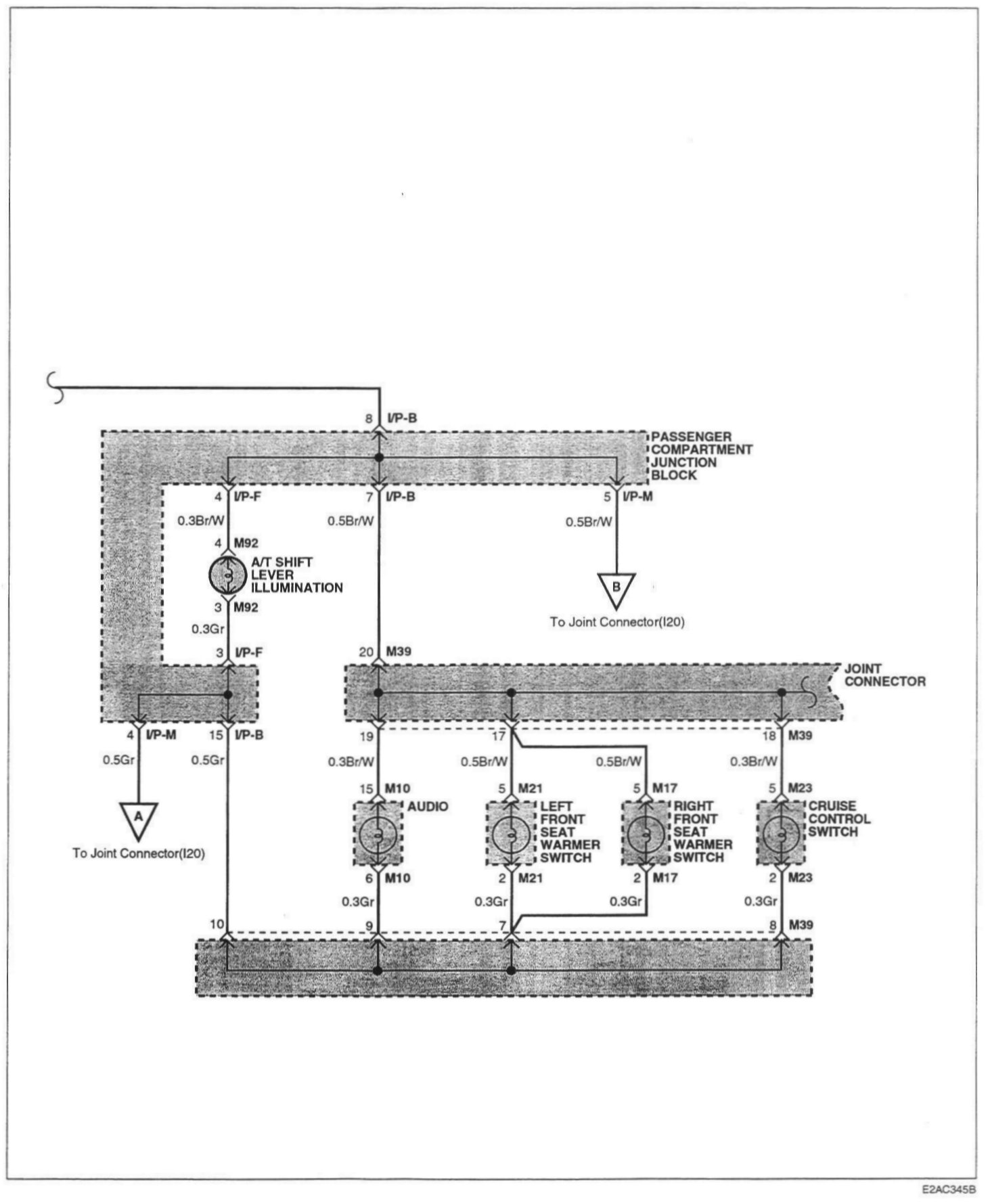

Image SD-196 Illuminations (1):
Image SD-197 Illuminations (2):
Image SD-198 Illuminations (3):
Image SD-199 Illuminations (4):
